Production description:

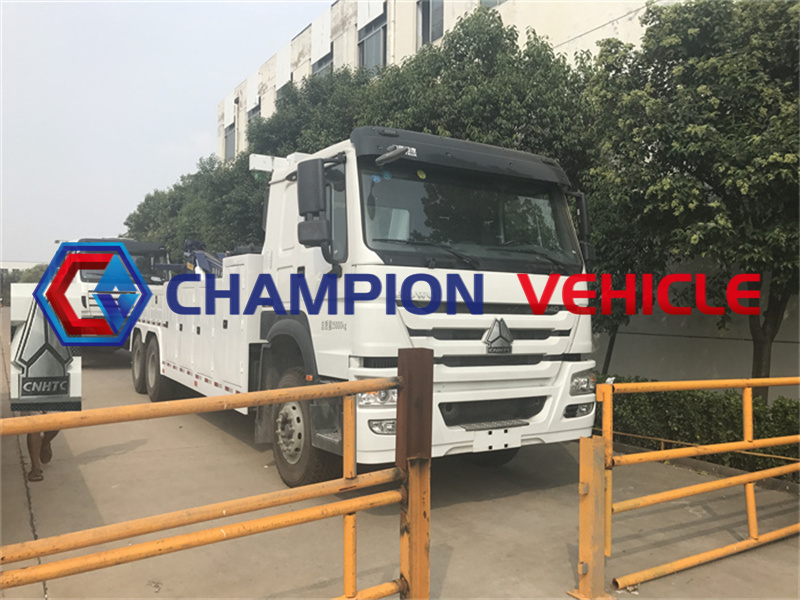

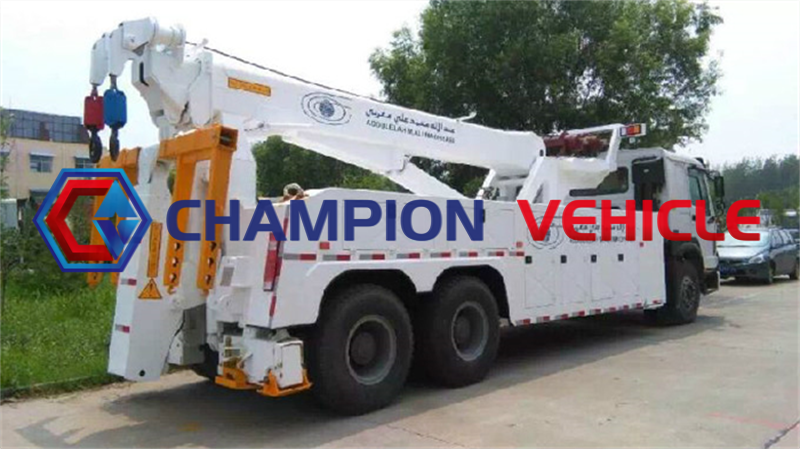

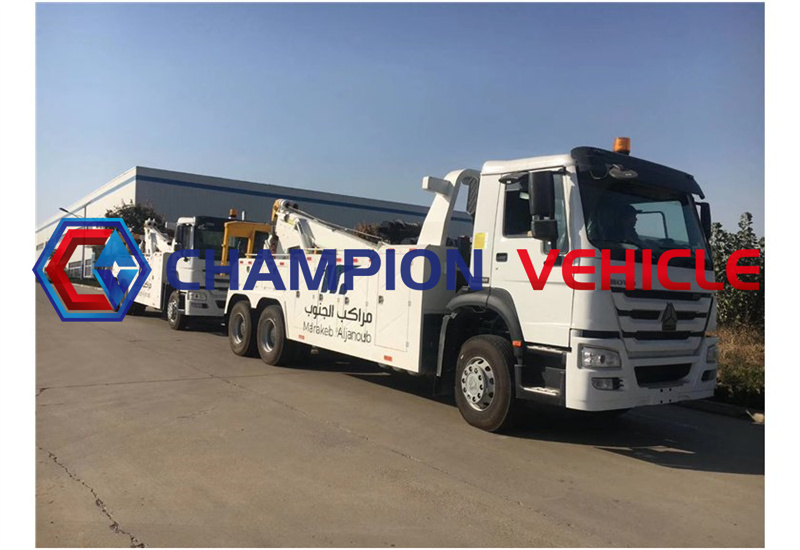

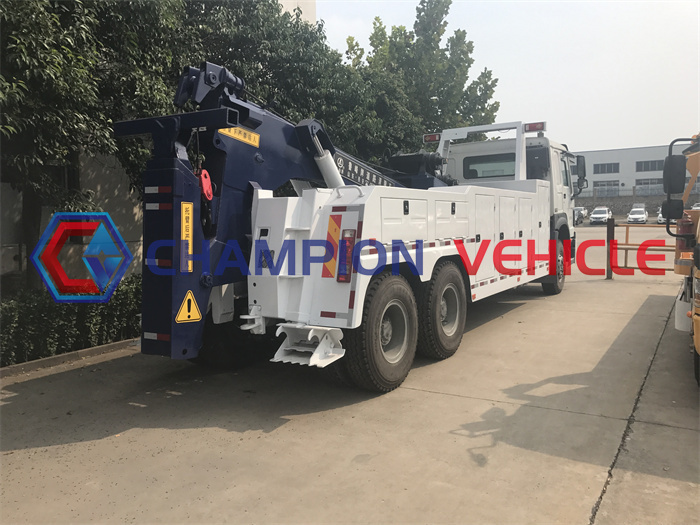

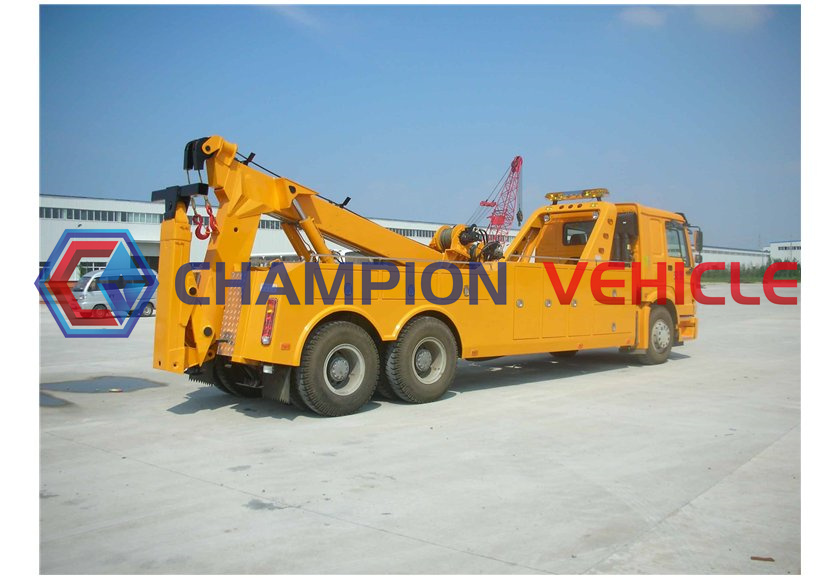

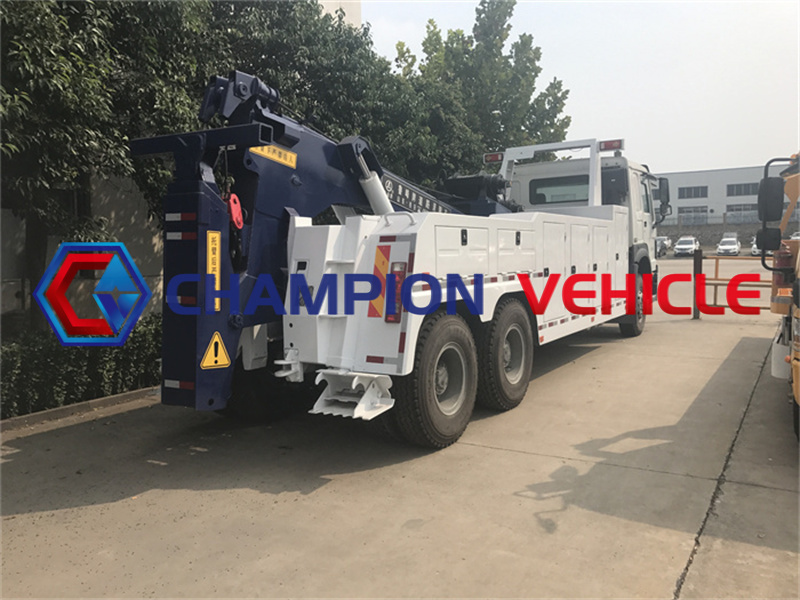

The HOWO 6*4 Road Wrecker Truck is an exceptional vehicle designed to handle heavy towing and salvage operations. With its powerful engine and superior suspension system, it can easily handle tough terrains and challenging road conditions. Its state-of-the-art features ensure maximum safety and reliability, making it an ideal choice for emergency services and road recovery operations.
Specification Sheet：
Overall Dimensions | 10,375×2,500×3,840 mm | |
Undercarriage Truck | HOWO ZZ1257N5841W | |
Operating Weight | 23,710 Kg | |
Boom | Boom Lifting Capacity | 20,000 Kg |
Boom Extension Range | 3,510 mm | |
Boom Lifting Height | 9,500 mm | |
Rotating Angle | 360° | |
Boom Elevation Angle | 50° | |
Winch Rated Pulling Force | 2 Winches; 100KN each; | |
Winch Rope | Length 40m; Diameter 18mm | |
Underlift | Towing Capacity | 30,000 Kg |
Maximum Lift Capacityof Underlift | 16,000 Kg | |
Rated Lift Capacity of Underlift | 6,670 Kg | |
Rating Lifting Weight Fully Extended | 4,840 Kg | |
Underlift Extension Range | 1,640 mm | |
Range of Inclination Angle | -9°～93° | |
Outrigger | Outriggers Capacity | 4×147 KN |
Span of Front and Rear Outriggers | 6300 mm | |
Driving Type | 6X4 | |
Maximum Speed | 78KPH | |
Maximum Gradeability | 40% | |
Mean Fuel Consumption per 100KM at 50KPH | 32L | |
Fuel Tank Volume | 200L | |
Wheel Base | 5,800mm+1,350mm | |
Engine | WD615.69 | |
Clutch | 420mm, | |
Gearbox | RT-11509C | 2-cable Shifting; Pneumatic Control Range Gears; Twin Countershaft; 9 Forwards (incl. Crawler) & 1 Reverse |
Drive Axle | CNHTC ST16 tandem axles; Ratio 5.73; | |
Cabin | HOWO 76 Long Cabin, Single Sleeper; | |
Tyres & Rims | 10+1; 12.00-20-18PR Nylon Tyres; Rim 8.5-20; | |
Production description:
The HOWO 6*4 Road Wrecker Truck is an exceptional vehicle designed to handle heavy towing and salvage operations. With its powerful engine and superior suspension system, it can easily handle tough terrains and challenging road conditions. Its state-of-the-art features ensure maximum safety and reliability, making it an ideal choice for emergency services and road recovery operations.
Specification Sheet：
Overall Dimensions | 10,375×2,500×3,840 mm | |
Undercarriage Truck | HOWO ZZ1257N5841W | |
Operating Weight | 23,710 Kg | |
Boom | Boom Lifting Capacity | 20,000 Kg |
Boom Extension Range | 3,510 mm | |
Boom Lifting Height | 9,500 mm | |
Rotating Angle | 360° | |
Boom Elevation Angle | 50° | |
Winch Rated Pulling Force | 2 Winches; 100KN each; | |
Winch Rope | Length 40m; Diameter 18mm | |
Underlift | Towing Capacity | 30,000 Kg |
Maximum Lift Capacityof Underlift | 16,000 Kg | |
Rated Lift Capacity of Underlift | 6,670 Kg | |
Rating Lifting Weight Fully Extended | 4,840 Kg | |
Underlift Extension Range | 1,640 mm | |
Range of Inclination Angle | -9°～93° | |
Outrigger | Outriggers Capacity | 4×147 KN |
Span of Front and Rear Outriggers | 6300 mm | |
Driving Type | 6X4 | |
Maximum Speed | 78KPH | |
Maximum Gradeability | 40% | |
Mean Fuel Consumption per 100KM at 50KPH | 32L | |
Fuel Tank Volume | 200L | |
Wheel Base | 5,800mm+1,350mm | |
Engine | WD615.69 | |
Clutch | 420mm, | |
Gearbox | RT-11509C | 2-cable Shifting; Pneumatic Control Range Gears; Twin Countershaft; 9 Forwards (incl. Crawler) & 1 Reverse |
Drive Axle | CNHTC ST16 tandem axles; Ratio 5.73; | |
Cabin | HOWO 76 Long Cabin, Single Sleeper; | |
Tyres & Rims | 10+1; 12.00-20-18PR Nylon Tyres; Rim 8.5-20; | |
