Production description:

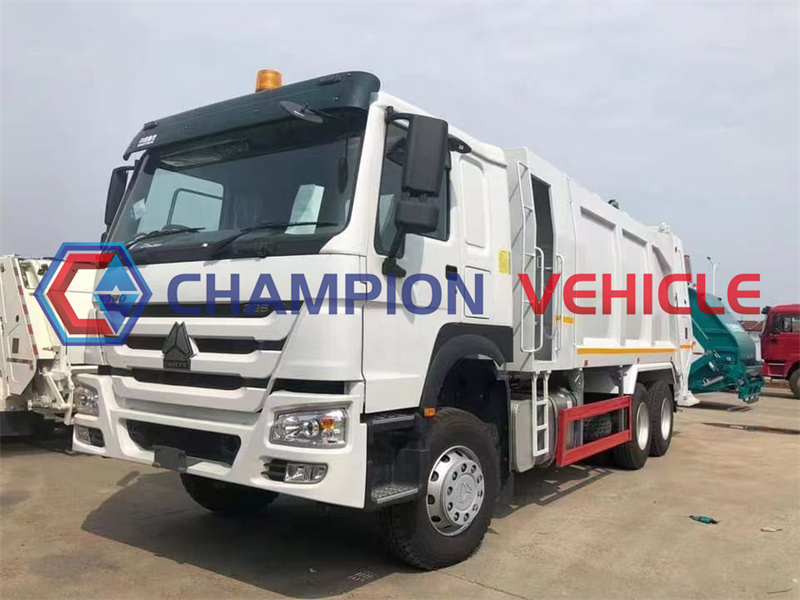

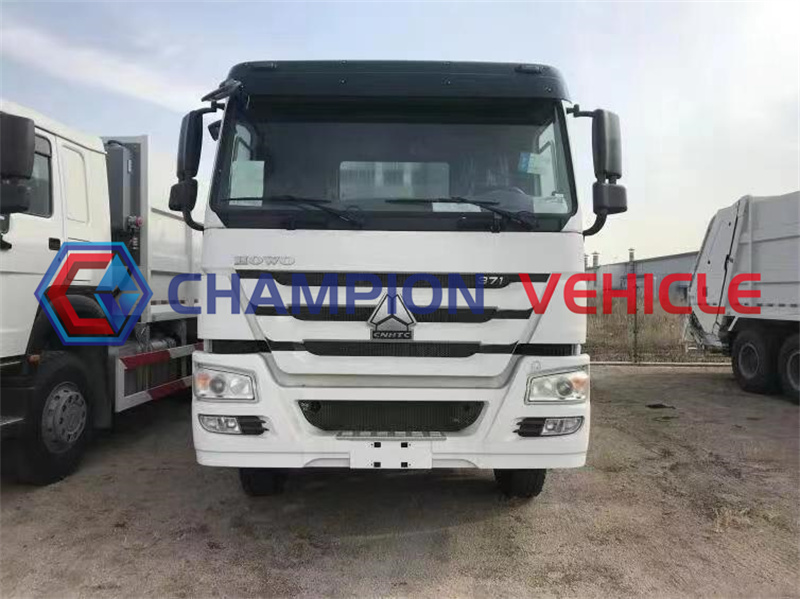

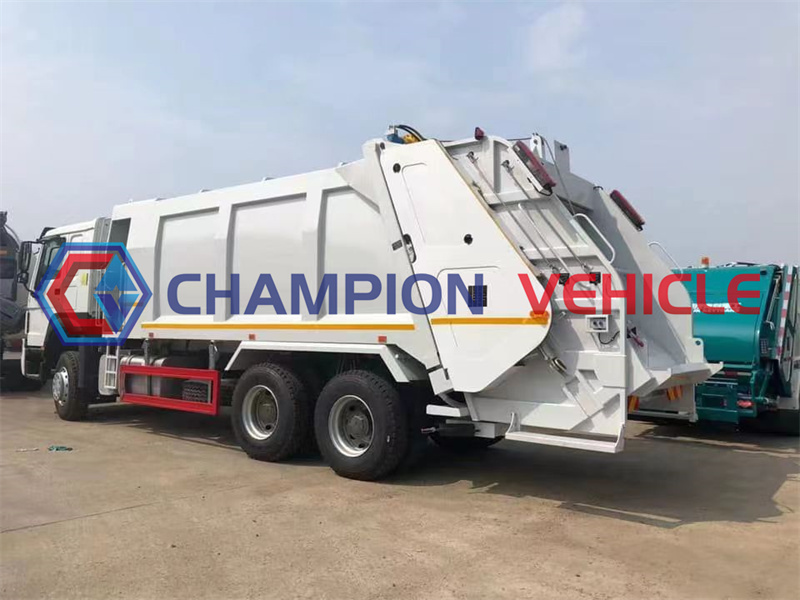

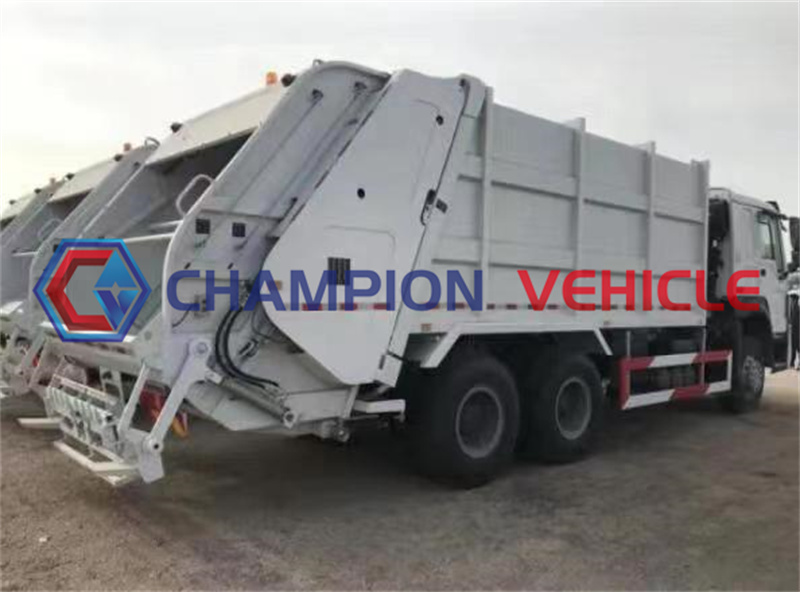

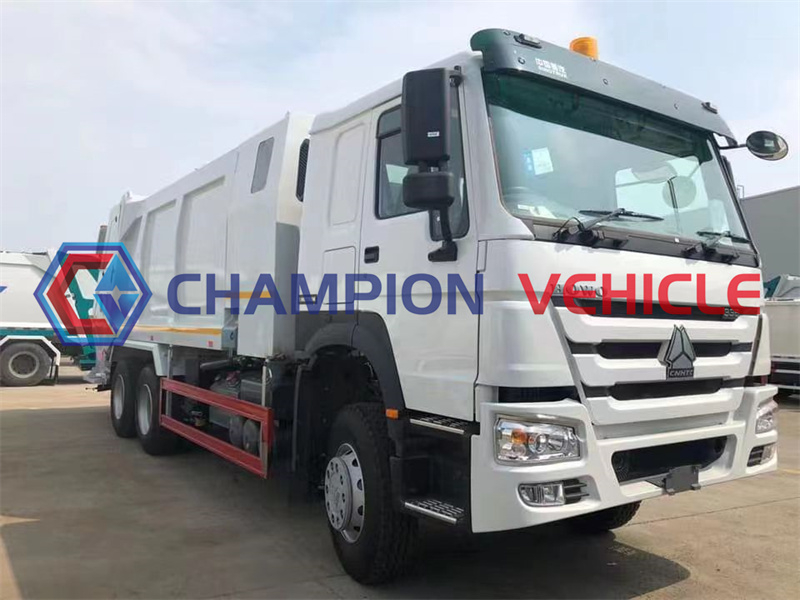

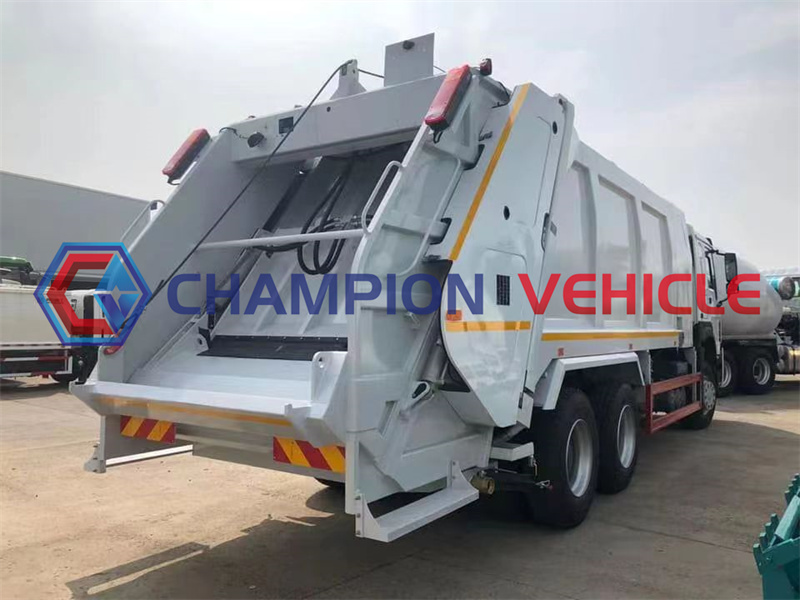

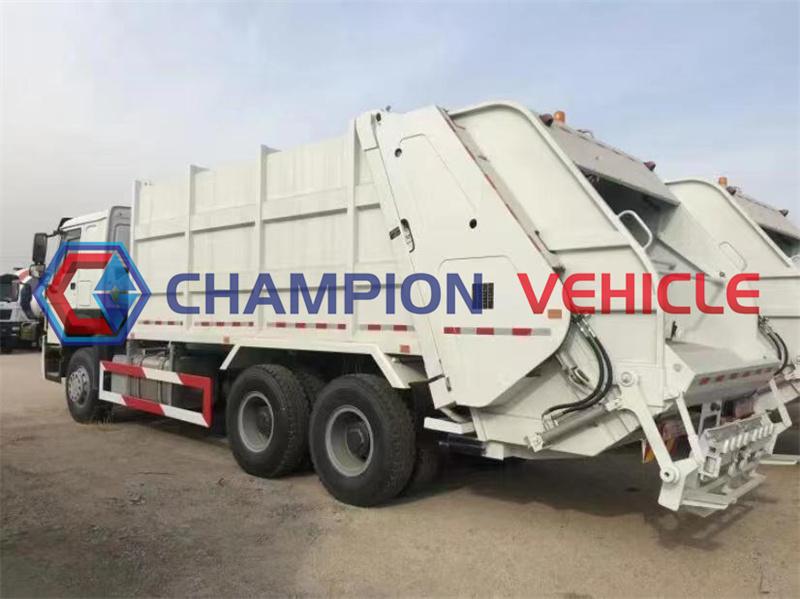

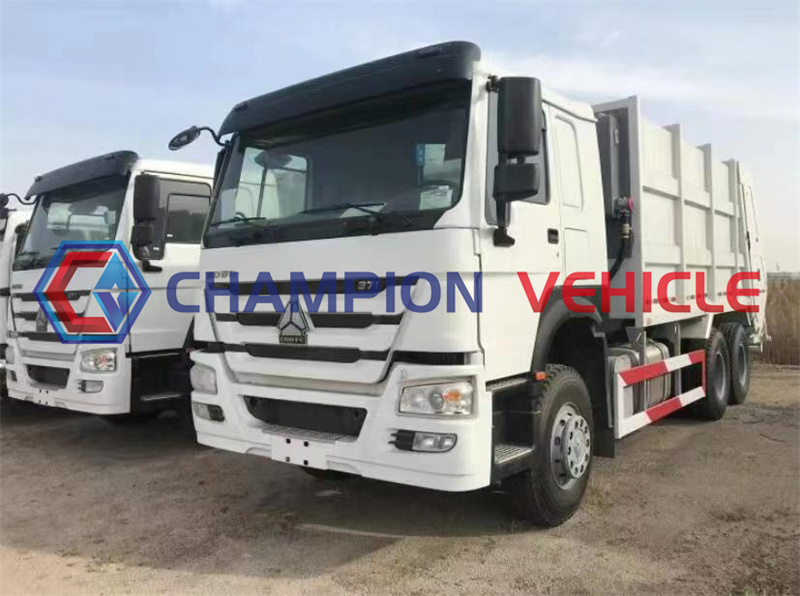

The HOWO 6*4 Compressed Garbage Truck with Top level of dynamic property, economical efficiency, reliability, service life, comfort. WD615 turbocharged diesel engine, has been tested for long time by the market, it is provides totally enough power to allow the truck to handle all kinds of road condition. Double-loop and double-pump hydraulic system, all operation could be electric control and manual method, which is more convenient and reliable. The compressor body uses good quality steel with rigidity, high strength. The automation of the truck operation is high degree, both loading, comparessing and offloading can be done both in the cab and outside of the truck. High volume tanker, can be customized according to client’s needs. It has good sealing property and sealing rubber strip is arranged between tanks and filling device, hydraulic lock is tight without leakage; there is sewage tank front and back, which can effectively avoid problems of sewage collection and leakage.
Specification Sheet:
Chassis Model | ZZ3257M3841 |
Driving Type | LHD (RHD is optional) |
Cabin | HW70, with two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber. |
Engine | Make: SINOTRUK |
Diesel 4-stroke direct injection diesel engine | |
Engine model: WD615.69, Euro 2, 336 HP | |
6-cylinder in-line with water cooling, turbo-charging and intercooling | |
Displacement: 9.726 L | |
Transmission | HW15710, 10F & 2R with PTO |
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) | |
Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
Front Axle | HF9,1x9000 KGS |
Steering with doubleT-cross section beam | |
Rear Axle | HC16, 2x16000 KGS |
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. | |
Ratio:4.42 | |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members |
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer | |
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer | |
Brake | Service brake: dual circuit compressed air brake |
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |
Auxiliary brake: engine exhaust brake | |
Electrics | Operating voltage: 24 V, negative grounded |
Starter: 24 V, 5.4 Kw | |
Alternator: 3-phase, 28 V, 1500 W | |
Batteries: 2 x 12 V, 165 Ah | |
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
Tyres | 315/80R22.5, tubless tires with one spare tire |
Fuel Tank | 300L |
Mixer Body | Volume: 16 CBM; |
Optional: Mechanical lifting arms | |
Overall Dimension | 9450*2550*3650mm |
