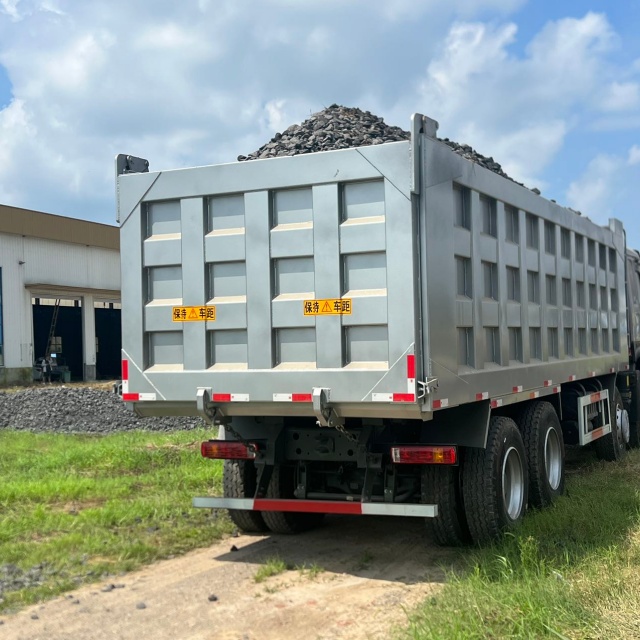

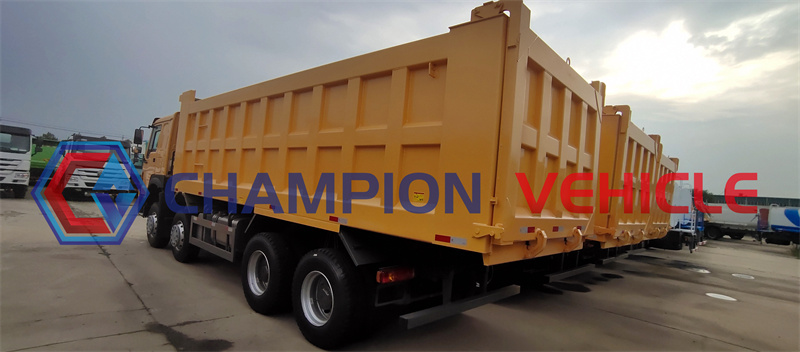

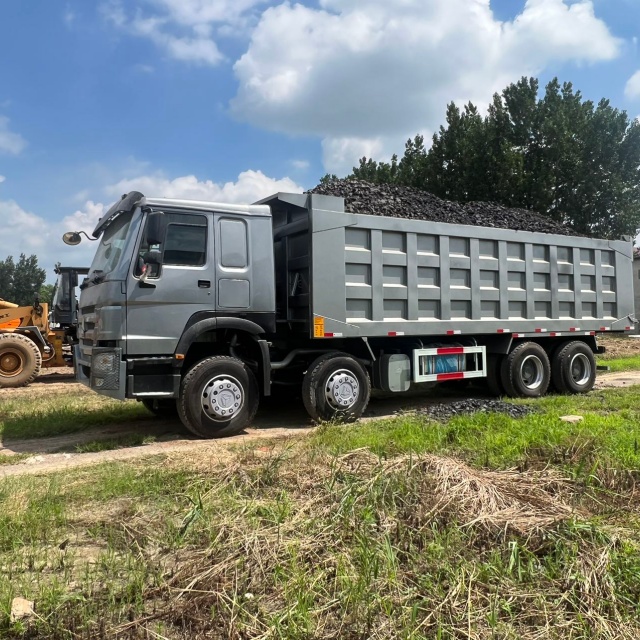

HOWO 8x4 Dump Truck

Brand: SINOTRUK HOWO

Model: ZZ3317N3867A


Emission Standard: EURO II, EURO III, EURO IV, EURO V

Driving Type: 8x4 / 12 Wheels / 4 Axles

Engine HP: 400HP/430HP

Transmission:HW19710, 10 Forward, 2 Reverse

Cargo Body Volume: 16CBM / 18CBM / 20CBM or customized.

Certificate: CCC, BV, SGS, ISO9001, WMI
Availability:
Quantity:

Applications:

The truck working for Mining industry, Construction items , docks, transport soil, sand, stones and so on. The lastest vision model with 400/430 HP engine, more powerful and more efficient.



Production Description

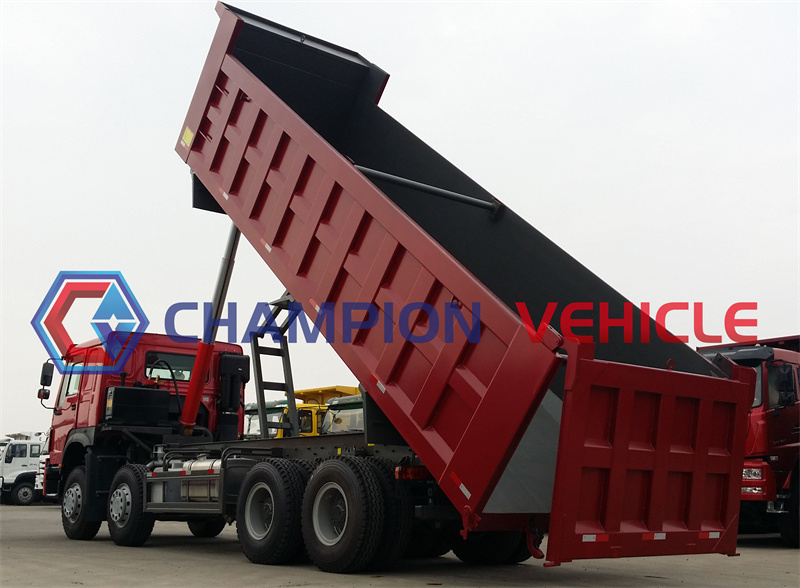

HOWO 8X4 dump truck is a dump truck with four axles, which is composed of automobile chassis, hydraulic lifting structure, cargo box and power take-off device and other components.HOWO 8X4 dump truck is very popular among many countries of African, and the highest market coverage. The repair and maintenance of this model is very matur, It is easy to buy accessories in African countries. HOWO 6X4 dump truck is your best choice if you want a high quality and worry-free truck.



Specification Sheet:

Model

ZZ3317N3867A

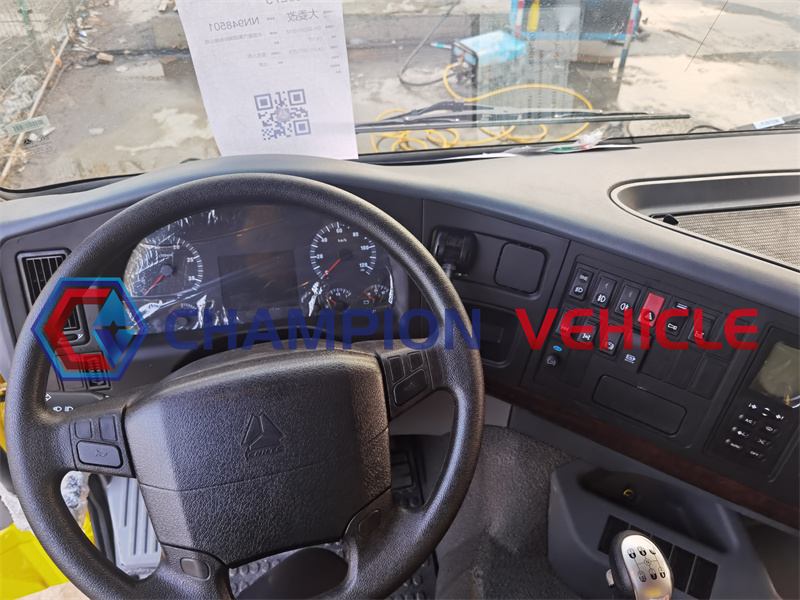

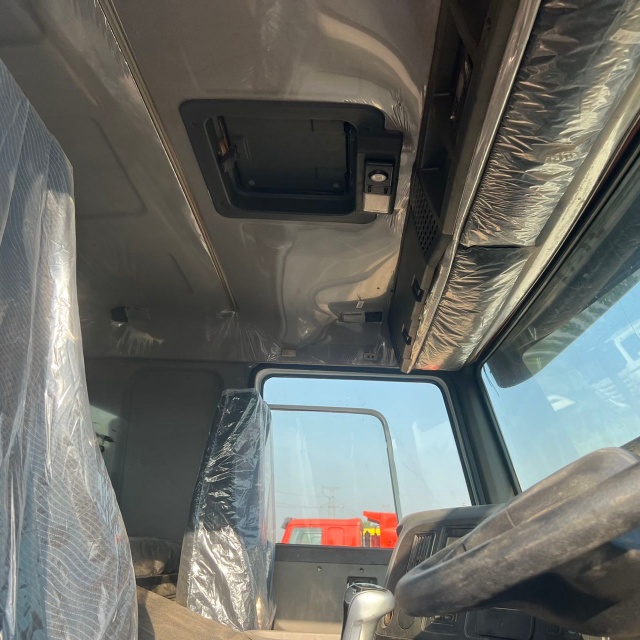

Cab

Model

HW76

Type

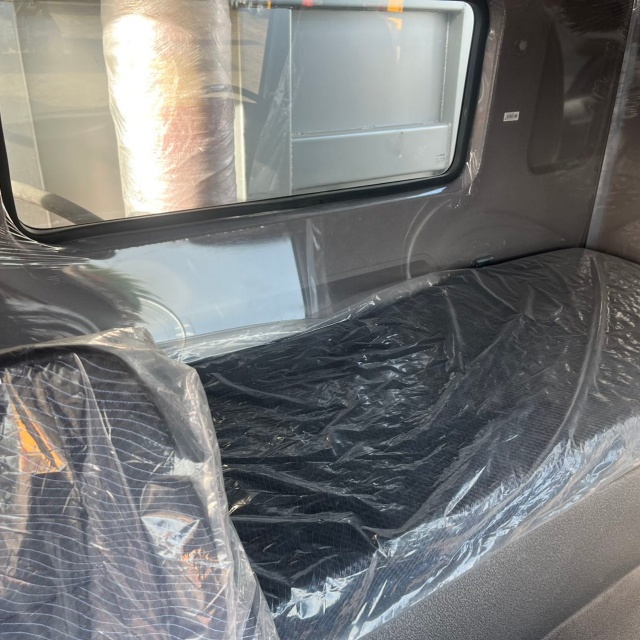

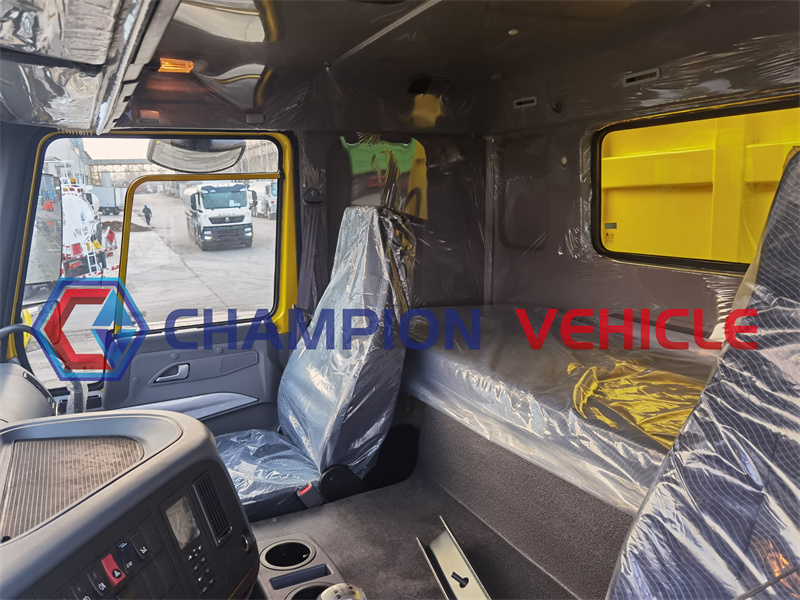

HW76 extend cab, one berth, with A/C

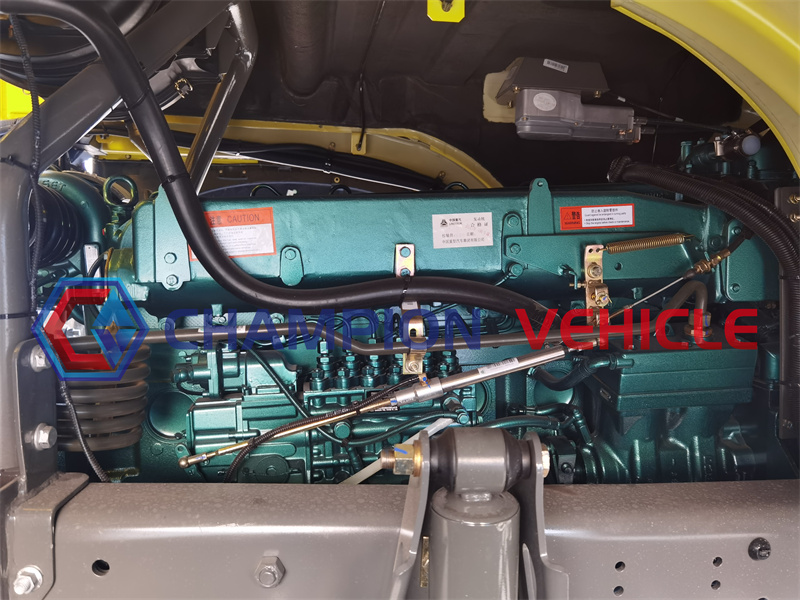

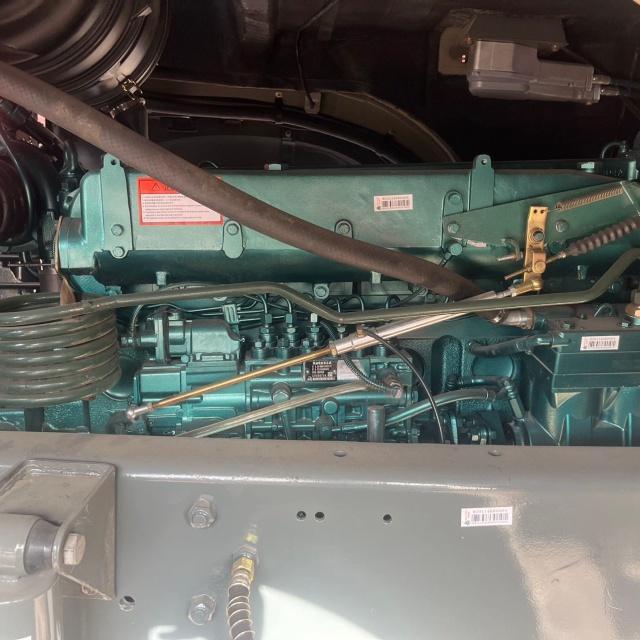

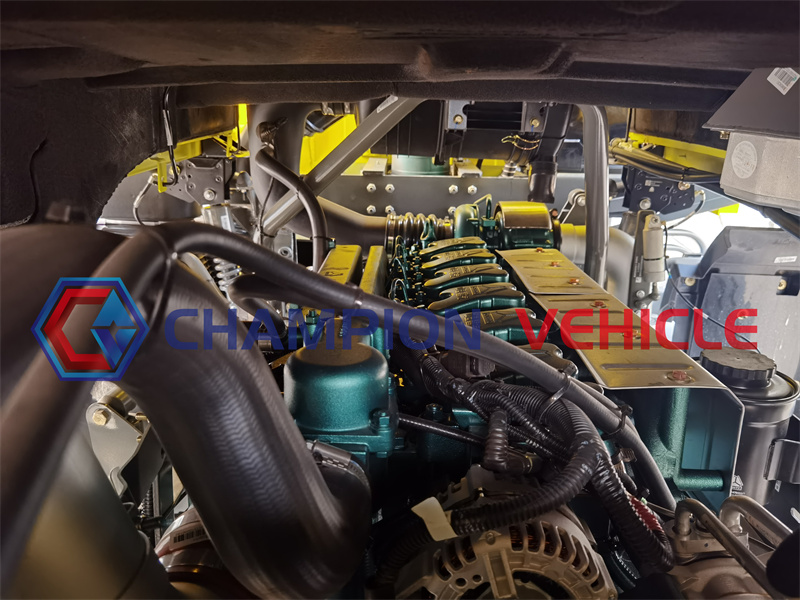

Engine

Model

WP12.400E201

 WP12.430E201

Rated power

400HP (294Kw/rpm)

430HP(316Kw/rpm)

Displacement

9.726L

Type

6 cylinder in-line with water cooling, turbo-charging & intercooling

Wheelbase

1800+3500+1400mm

1800+3800+1400mm

1800+4300+1400mm

1800+4600+1400mm

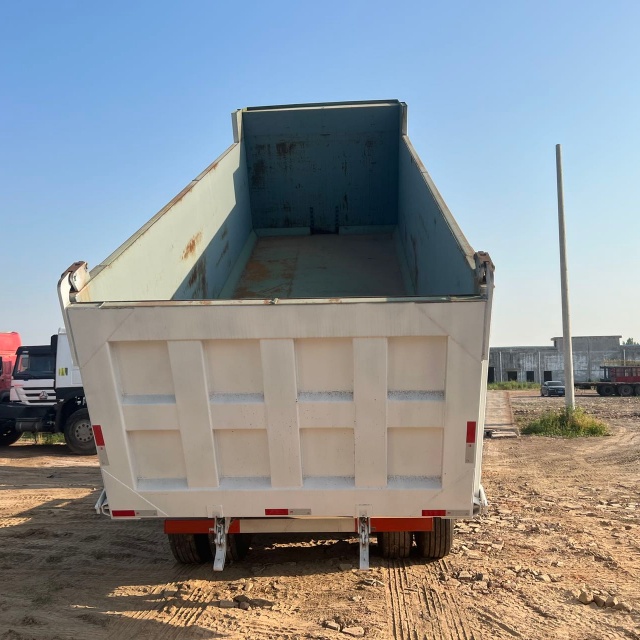

Cargo body size

7000x2300x1500mm

7300x2300x1500mm

7800x2300x1500mm

8500x2300x1500mm

Clutch

Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance

Gear box

SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse

Front axle

Steering axle with double T-cross section HF9

Drive axle

Pressed axle housing, central single reduction HC16/AC16
Ratio: 5.73

Chassis

Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel
Aluminum fuel tank: with 400 L fuel tank with locking fuel cap

Steering

Germany ZF, hydraulic steering with power assistance

Brakes

Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS

Wheel & Types

Rims: 8.0-20, 10 hole-steel
Types:315/80R22.5 tube ( 12.00-20 tube, 12.00R20 tube for optional)

Electrics

Operating voltage:24V, negative grounded;  Starter: 24V, 5.4KW
Alternator: 28V, 1540W;  Batteries: 2×12, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

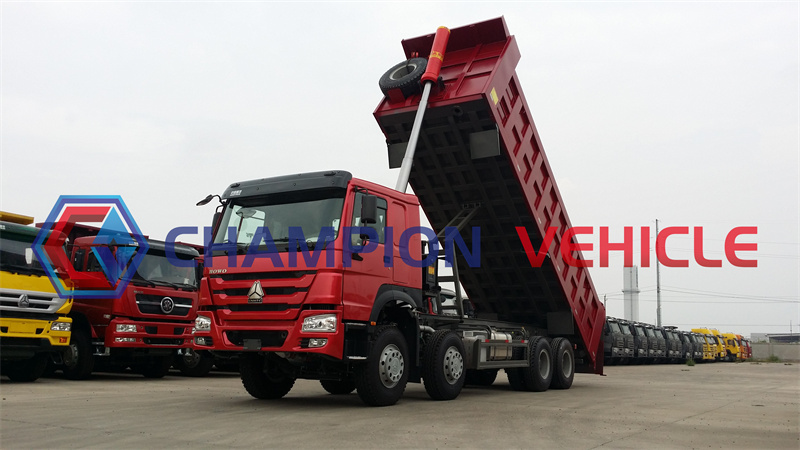

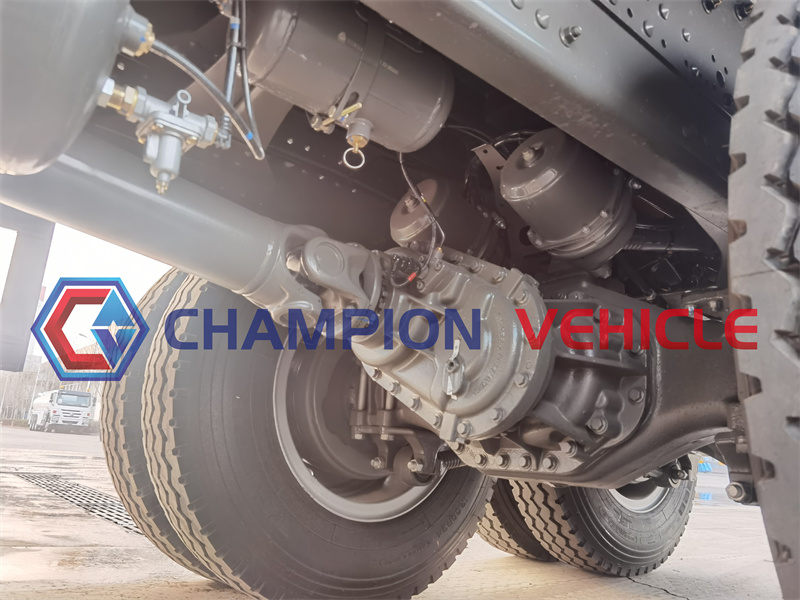

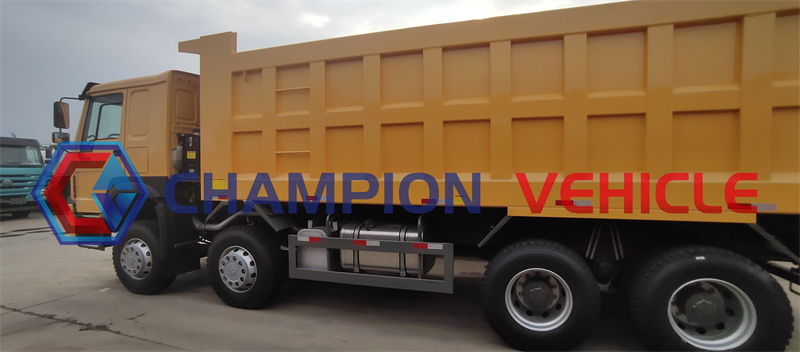

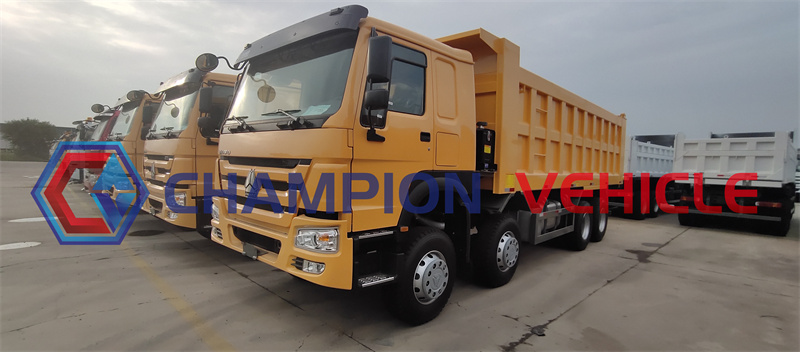

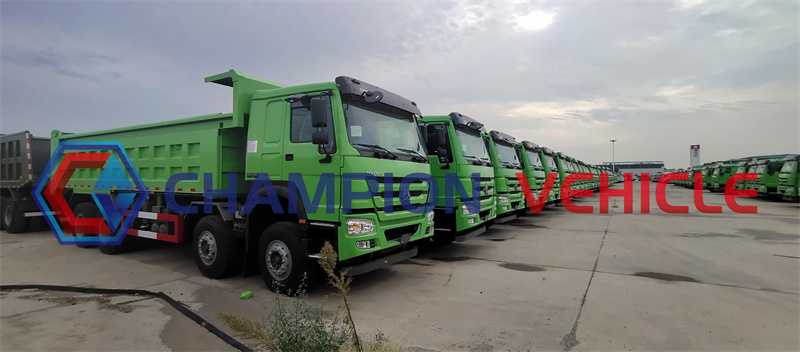

493d453df0ef7f3e8e5aad5087d8b10c30ae2d0f9b6334a886b37b5016c3a2IMG_20190911_164511IMG_20190911_163222IMG_20190911_164535IMG_20190911_164555IMG_20220107_153239IMG_20220107_153255Product Picture (10)Product Picture (11)Product Picture (12)Product Picture (13)Product Picture (14)Product Picture (15)Product Picture (16)Product Picture (17)

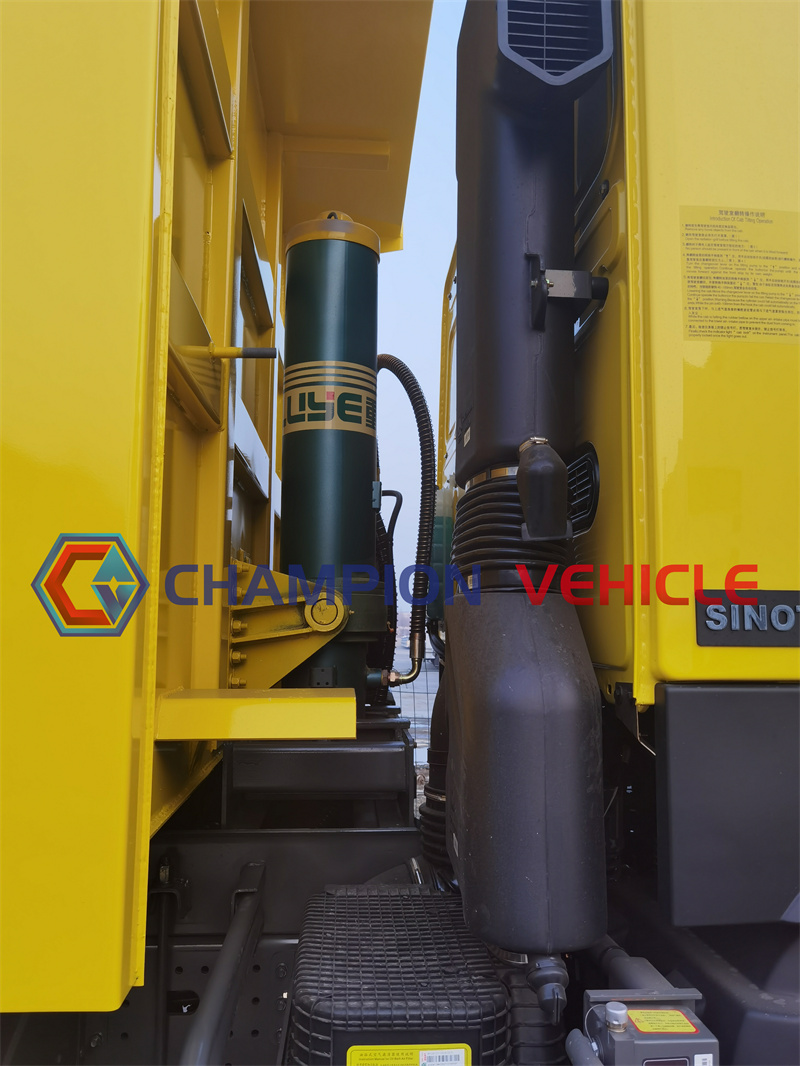

Product Picture (20)Product Picture (21)


Working-shop-1


Working-shop-2


Working-shop-3


Working-shop-4


Working-shop-5


Working-shop-6


Working-shop-7


Working-shop-8


shipping-way-1

shipping-way-2

shipping-way-3

our-parking-1


our-parking-2


our-parking-3
