HOWO 4x2 Dump Truck

Brand: SINOTRUK HOWO
Model: ZZ3167M3811
Emission Standard: EURO II, EURO III, EURO IV, EURO V
Driving Type: 4x2 / 6 Wheels / 2 Axles
Engine HP: 290HP / 336HP
Transmission:HW19710, 10 Forward, 2 Reverse
Cargo Body Volume: 14CBM/16CBM / 18CBM / 20CBM or customized.
Certificate: CCC, BV, SGS, ISO9001, WMI
Availability:
Quantity:

Applications:

The HOWO 4x2 Dump Tipper Truck working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Production Description

HOWO 4X2 dump truck is a dump truck with two axles, which refers to a vehicle that unloads goods by itself through liquid tires or mechanical lifts.

HOWO 4X2 dump truck is a mature product of Sinotruk. This model caters to the African market and it is the most hot sale model, HOWO 4X2 dump truck is very popular among many countries of African, and the highest market coverage. The repair and maintenance of this model is very mature, It is easy to buy accessories in African countries, and the maintenance cost is low. HOWO 4X2 dump truck is a good choice if you want a high quality and worry-free truck.



Specification Sheet:

Typical truck model

ZZ3167M3811

ZZ3167M4611

Cab

Model

HW70

Type

HW70 Standard cab, no berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt.

Engine

Model

WD615.87

WD615.69

Rated power

290HP(213Kw/rpm)

336HP(247Kw/rpm)

Displacement

4 stroke direct injection diesel engine

Type

6 cylinder in-line with water cooling, turbo-charging & intercooling

Wheelbase

3800mm

4600mm

Cargo body size

4190x2300x800mm

5410x2300x800mm

Clutch

Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance

Transmission

SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse

Front axle

Steering axle with double T-cross section HF9

Drive axle

Pressed axle housing, central single reduction HC16
Ratio:5.73

Chassis

Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel
Aluminum fuel tank: with 400 L fuel tank with locking fuel cap

Steering

Germany ZF, hydraulic steering with power assistance

Brakes

Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS

Wheel & Types

Rims: 8.0-20, 10 hole-steel
Types 11.00-20 tube;
Option: 12.00-20 tube, 12.00R20 tube

Electrics

Operating voltage:24V, negative grounded;  Starter: 24V, 5.4KW
Alternator: 28V, 1540W;  Batteries: 2×12, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp




1627006332(1)1649741955(1)

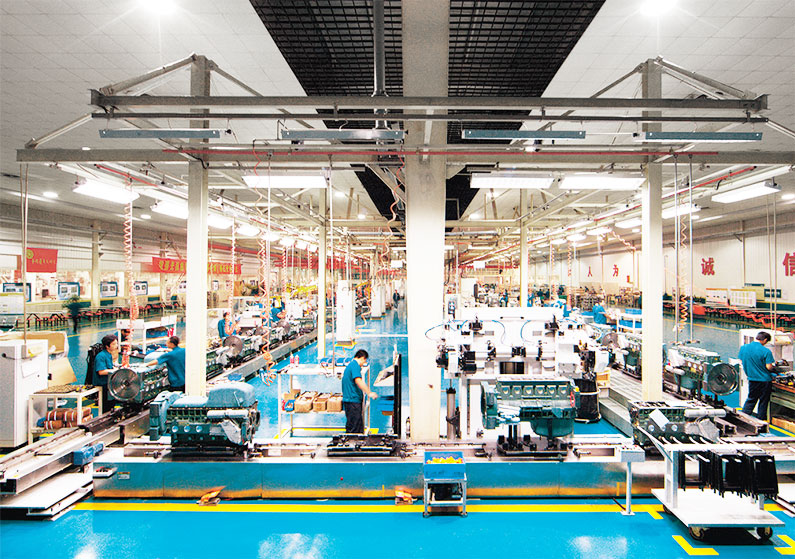

Working-shop-1

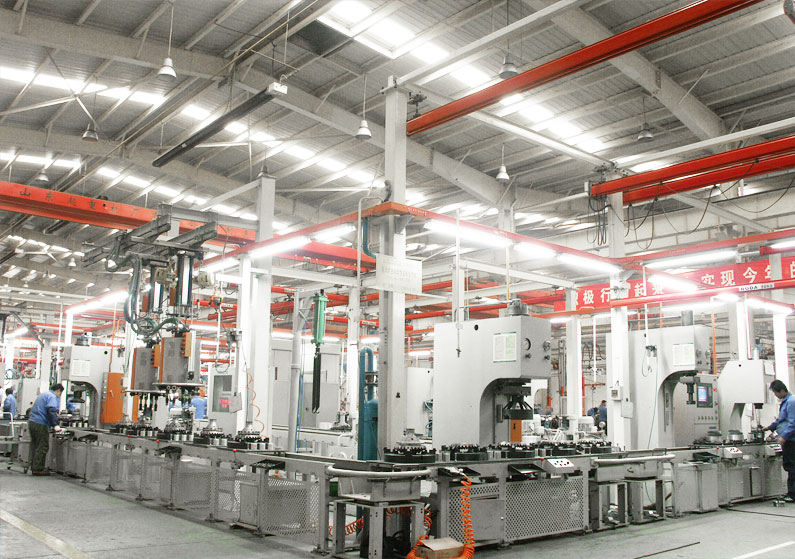

Working-shop-2

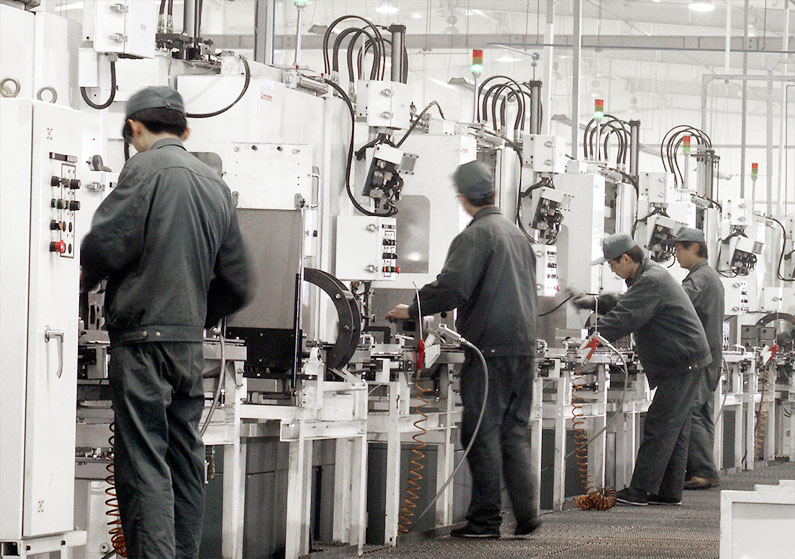

Working-shop-3

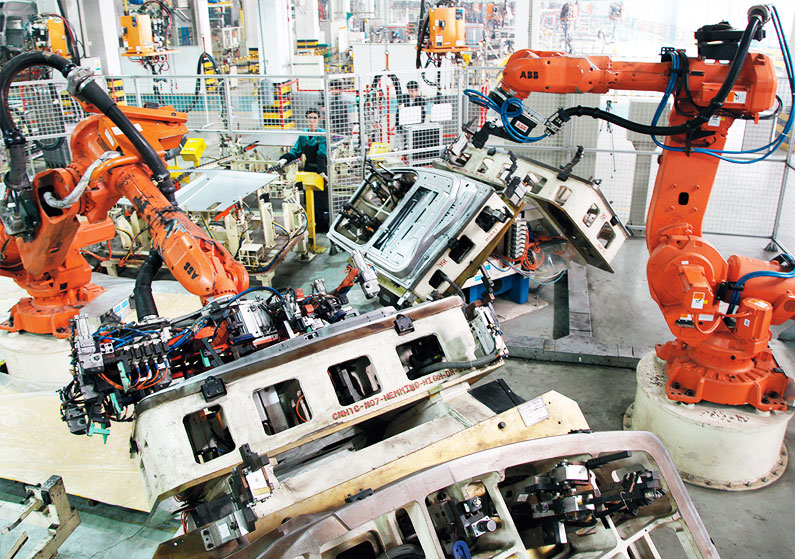

Working-shop-4

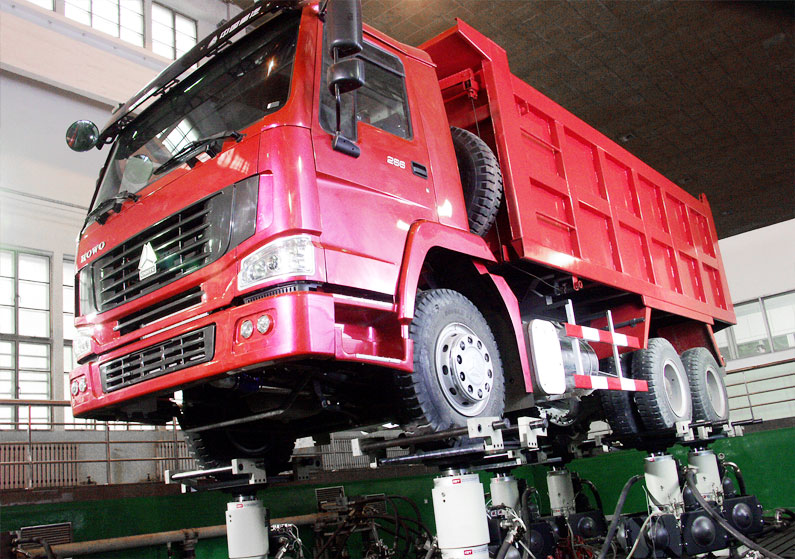

Working-shop-5

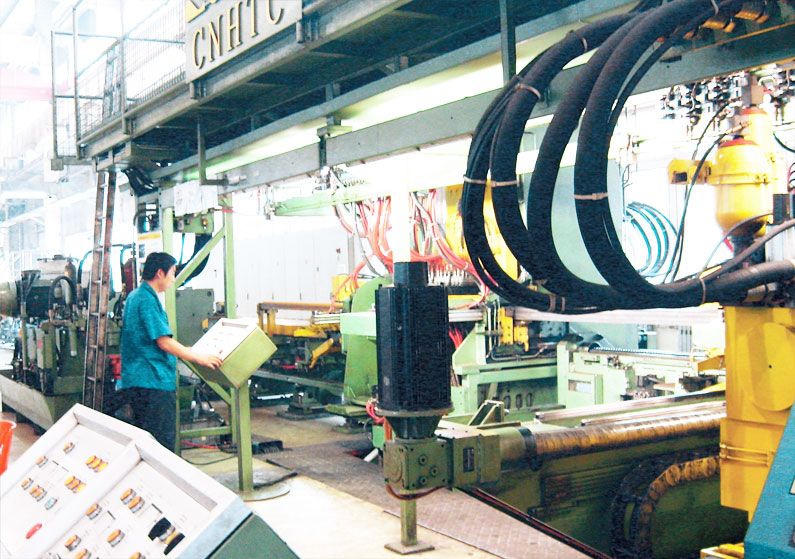

Working-shop-6

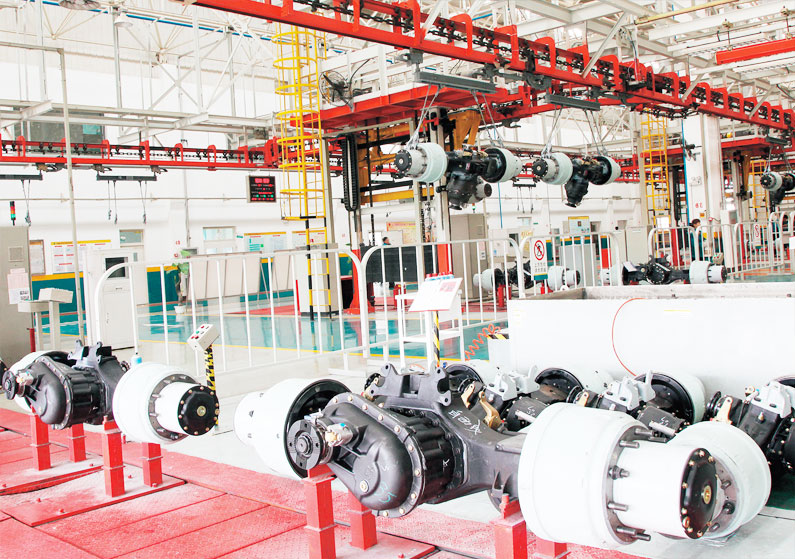

Working-shop-7

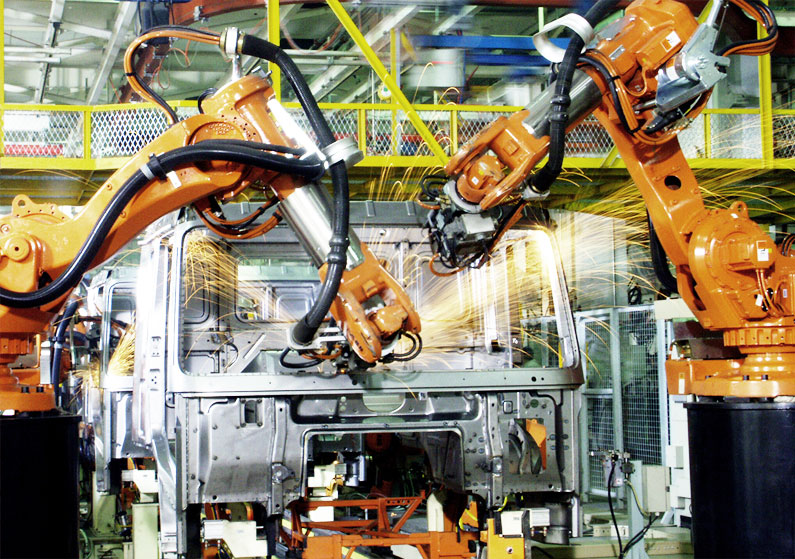

Working-shop-8

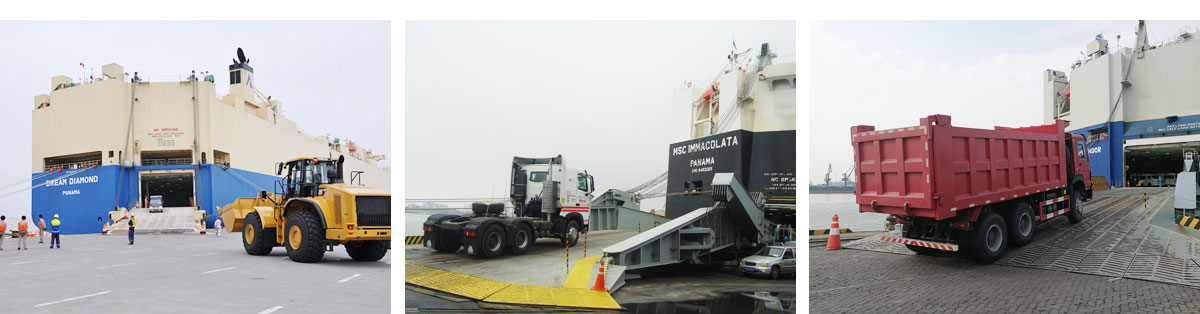

shipping-way-1

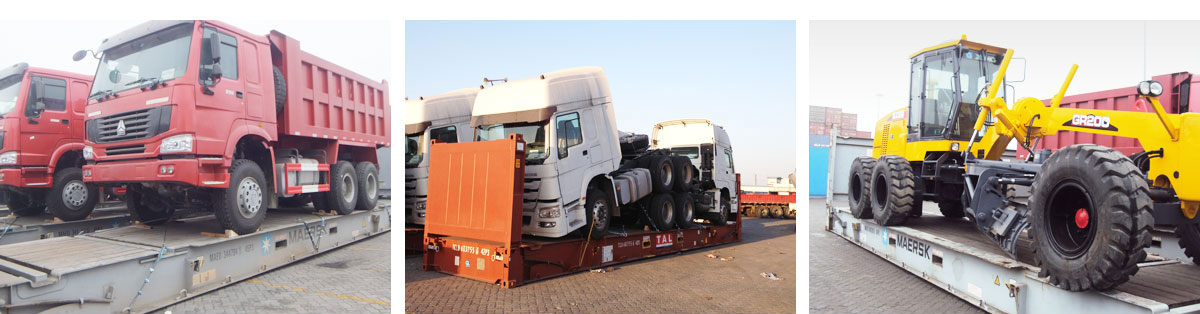

shipping-way-2

shipping-way-3

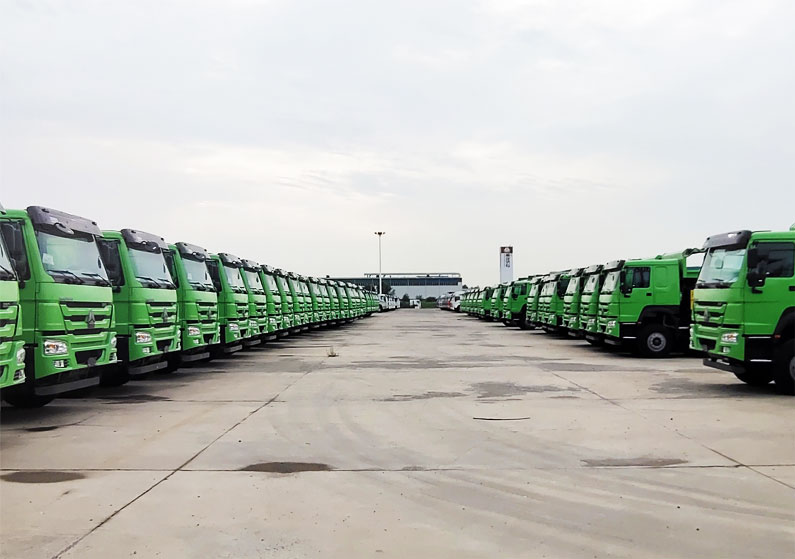

our-parking-1

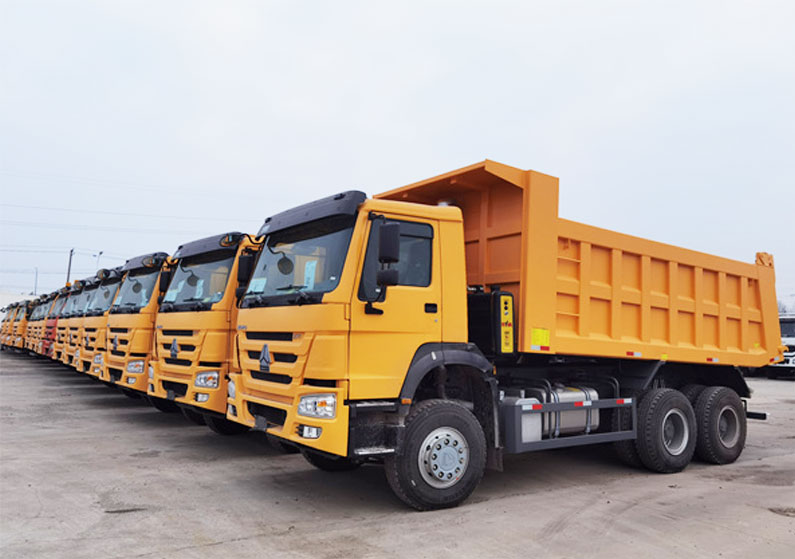

our-parking-2

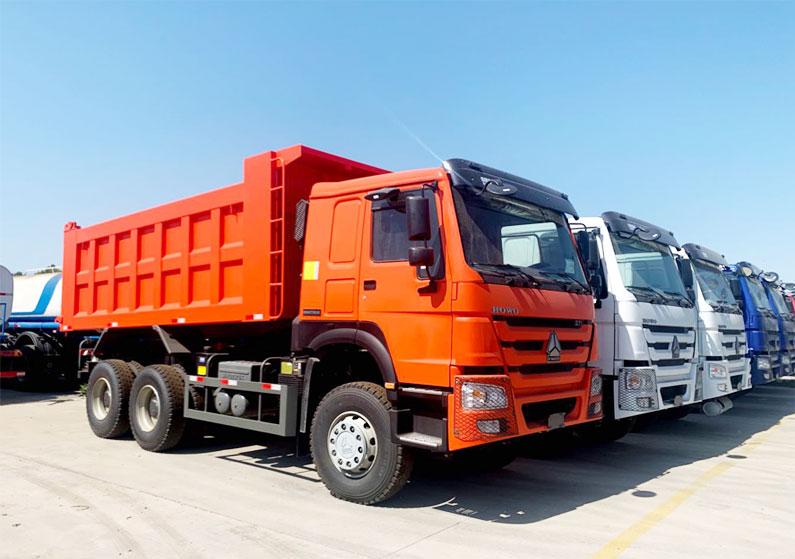

our-parking-3
