Product description:

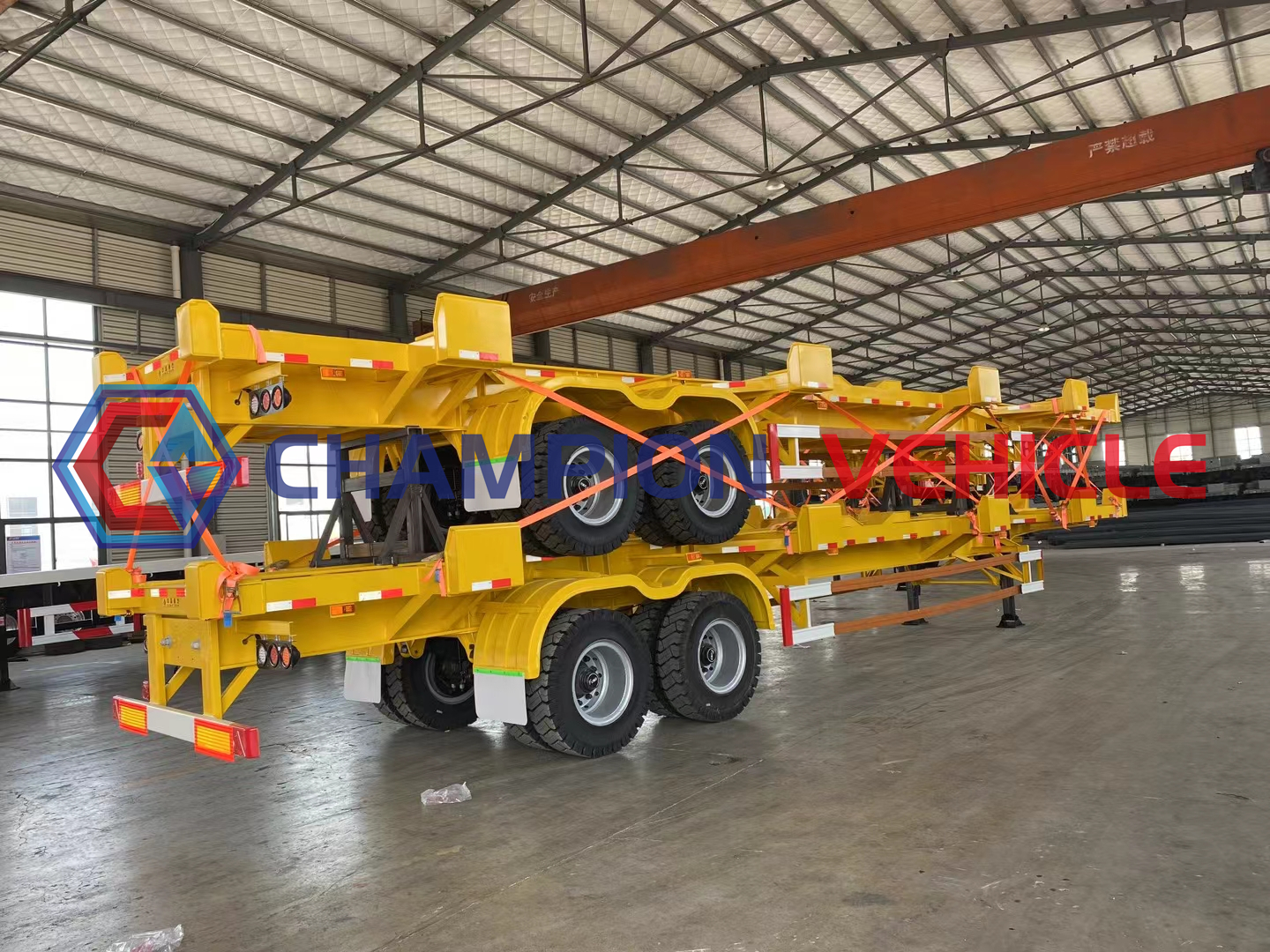

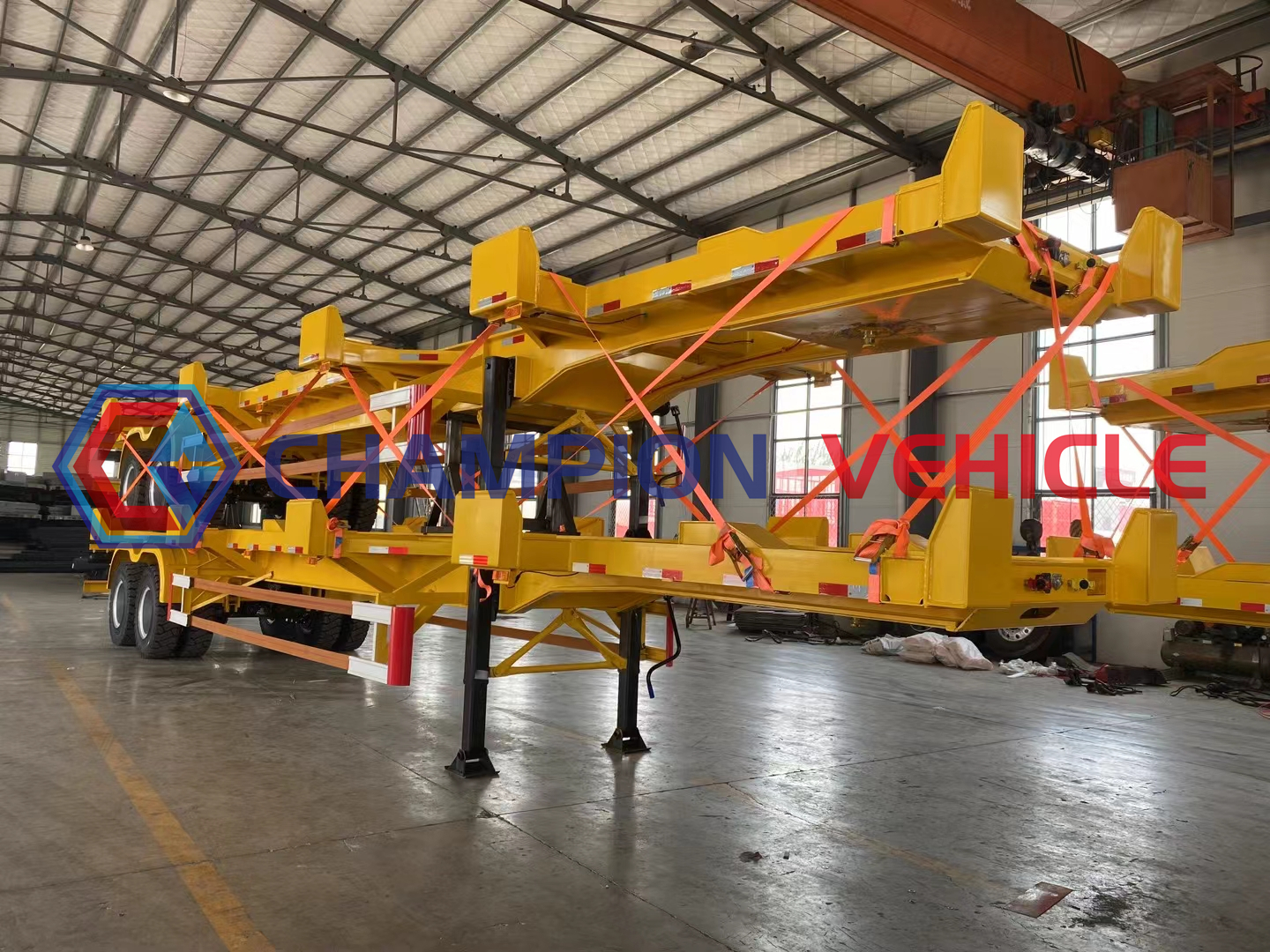

The 40ft 2 Axles Terminal Trailer is a versatile and efficient transportation tool that is widely used in port terminals. With a strong and durable structure, it is able to safely and securely transport heavy cargo loads across various terrains.
Product Specification:
40ft Terminal Trailer(Bomb Cart) With 2 Axles
Overall (L*W*H) | 12613*2810*1508mm |
Payload | 65 tons |
Main Beam | High strength low alloy Q345 steel with 350 Map yield strength |
Floor | 3mm checkered plate |
King Pin | SAE standard 2” welding king pin, Supplier: JOST Made in China. |
Landing Leg | JOST C200T or A400/ JOST CHINA. |
Suspension | Heavy duty tandem mechanical suspension with12 leaf spring. (90mm width by 16mm thickness / leaf) Fasteners for radius rods and equalizers will be installed with nuts to the outside. Springs will be fastened to the axle using U-bolts with nuts facing downward. |
Axle | Axle with 16 tons capacity. Famous Brand: FUWA or YORK Made in China. 2 pieces. |
Tire | 12.00R22.5,Radias tire, 8 pieces; China Famous Brand |
Rim | 9.0-22.5, 10 Holes ISO, 8 pieces. |
Brake System | Dual air brake system, WABCO relay emergency valve. |
Brake Chamber | Type 30/30 on the rear two axles, Type 30 on front axle. |
Electrical System | 24 volt lighting system with modular wiring harness, 7 way ISO receptacle in front of the front bolster, norms NO.1185, Chinese standard. |
Reflector | 2-Nos triangle shaped Red Reflectors at Rear.10 pieces Reflectors strip (Conspicuity tape) each side. |
Mudguards | PVC with”CIMC”making, 2 pieces. |
Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
Painting | Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats |
