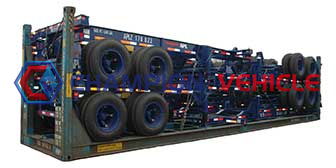

The 20ft Skeleton Semi Trailer with 2 Axles is designed for stevedoring and transporting 1x 20’ , 2x 20’, 1x 40’ ISO Cargo Containers.
Product Specification:
Overall (L*W*H) | 7210*2470*1560mm |
Payload | 30 tons |
Main Beam | High strength low alloy Q345 steel |
King Pin | 2" (50#) high tensile steel bolted type |
Landing Leg | 28T capacity |
Suspension | American Type Heavy duty under mount tri-axle suspension with equalizers with 10 layers leaf spring(width: 90mm, thick: 13mm) |
Axle | 150x150 Square axle with 13 tons capacity. 3 pieces. |
Tire | 12R22.5 Tire,12pcs, China Famous Brand. |
Rim | 9.00*22.5, 10 Holes ISO, 12pcs |
Brake System | Dual air brake system, WABCO relay emergency valve. |
Brake Chamber | Type 30/30 on all axles. |
Electrical System | 24 volt lighting system with modular wiring harness, 7 way ISO receptacle in front of the front bolster, norms NO.1185, Chinese standard. |
Twist Lock | 4 units, ISO Standard. |
Spare Tire Carrier | Equipped two sets per trailer |
Spare Tire | 1 unit |
Side Guard | Standard |
Tool Box | 1 unit, 1m long. |
Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
Painting | Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats |
