Applications:
with 32-40tons load capacity, and 400/430hp engine. It’s suitable for Logistics business, for transport bulk goods.
Product Description:

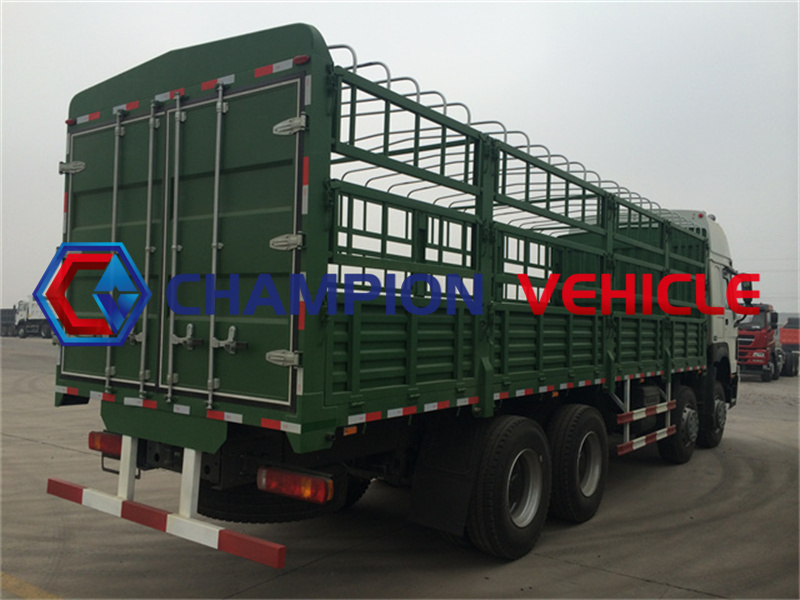

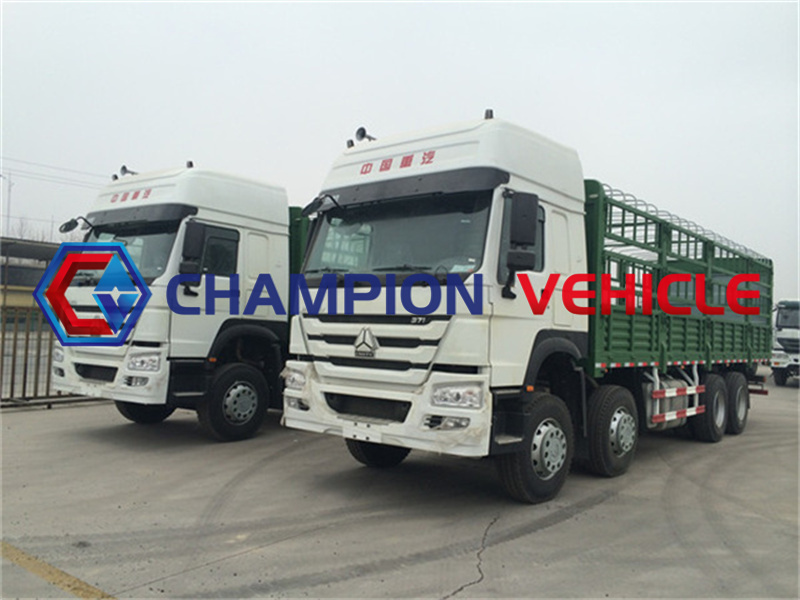

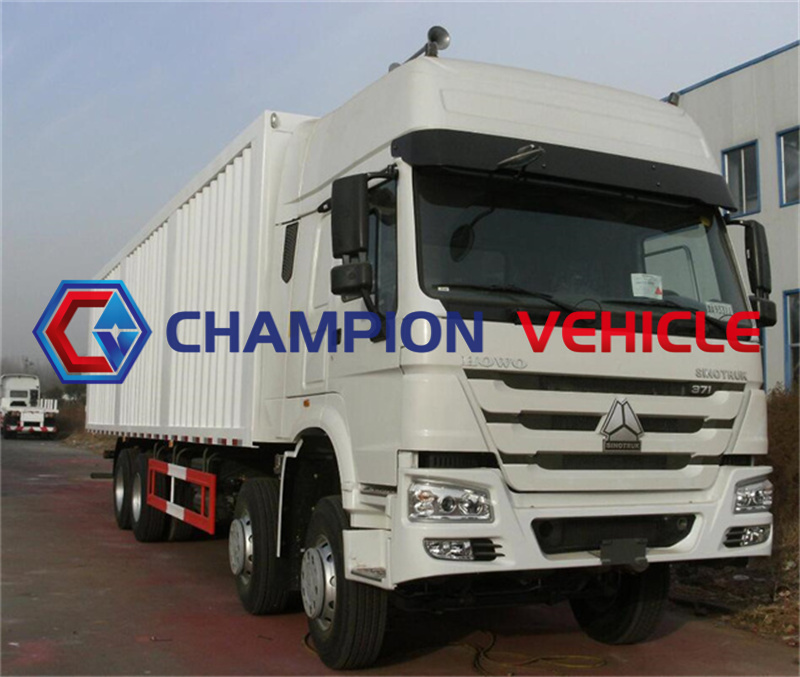

The HOWO 8x4 Cargo truck is a reliable and efficient vehicle designed for heavy duty transport, with 400HP /430HP Powerful engine. HOWO 8x4 Cargo truck is features a powerful engine, sturdy suspension system, and a spacious cargo compartment to accommodate large loads, and the cargo box could production according customer request.The HOWO 8x4 Cargo truck with excellent performance and durability. it is a top choice for transporting goods over long distances.
Specification Sheet:
Typical truck model | ZZ1317N3867A | ZZ1317N4667A | |
Cab | Model | HW79 | |
Type | HW79High Roof cab, two berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt. | ||
Engine | Model | WP12.400E201 | WP12.430E201 |
Rated power | 400HP （294Kw/rpm) | 430HP（316Kw/rpm） | |
Displacement | 9.726L | ||
Type | 6 cylinder in-line with water cooling, turbo-charging & intercooling | ||
Wheelbase | 1800+3800+1400mm | 1800+4600+1400mm | |
Cargo body size | 8650x2300x2200mm | 9500x2300x2200mm | |
Clutch | Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance | ||
Transmission | SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse | ||
Front axle | Steering axle with double T-cross section HF7/HF9 | ||
Drive axle | Pressed axle housing, central single reduction ST16/MCY（Q）/HC16/AC16 | ||
Chassis | Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe | ||
Steering | Germany ZF, hydraulic steering with power assistance | ||
Brakes | Service brake: dual circuit compressed air brake | ||
Wheel & Types | Rims: 8.0-20, 10 hole-steel | ||
Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW | ||
