Applications:
with 32-40tons load capacity, and 400/430hp engine. It’s suitable for Logistics business, for transport bulk goods.
Product Description:

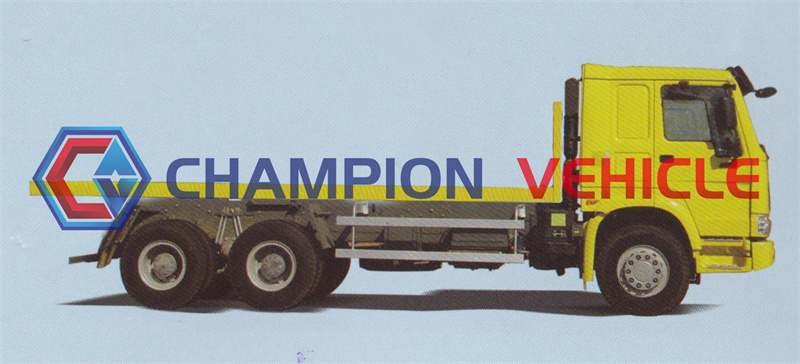

The HOWO 6x4 Cargo truck is a reliable and efficient vehicle designed for heavy-duty transport, with 32 tons rear axle,and 400HP Powerful engine. It features a powerful engine, sturdy suspension system, and a spacious cargo compartment to accommodate large loads, and the cargo box could production according customer request.The HOWO 6x4 Cargo truck with excellent performance and durability. it is a top choice for transporting goods over long distances.
Specification Sheet:
Model | ZZ1257N4641W | ||||
Cab | Model | HW76 | |||
Type | HW76 extend cab, one berth, with A/C | ||||
Engine | Model | WP12.400E201 | WP12.430E201 | ||
Rated power | 400HP （294Kw/rpm) | 430HP（316Kw/rpm） | |||
Displacement | 9.726L | ||||
Type | 6 cylinder in-line with water cooling, turbo-charging & intercooling | ||||
Wheelbase (mm) | 4300+1400 | 4600+1400 | 5200+1400 | 5800+1400 | |
Cargo body size(mm) | 7100x2300x2200 | 7650x2300x2200 | 8650x2300x2200 | 9500x2300x2200 | |
Clutch | Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance | ||||
Gear box | SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse | ||||
Front axle | Steering axle with double T-cross section HF7/HF9 | ||||
Drive axle | Pressed axle housing, central single reduction ST16/MCY（Q）/HC16/AC16 | ||||
Chassis | Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe | ||||
Steering | Germany ZF, hydraulic steering with power assistance | ||||
Brakes | Service brake: dual circuit compressed air brake | ||||
Wheel & Types | Rims: 8.0-20, 10 hole-steel | ||||
Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW | ||||
