HOWO 6x4 Mixer Truck

Brand: SINOTRUK HOWO
Model: ZZ5257GJBN4041W
Emission Standard: EURO II, EURO III, EURO IV, EURO V
Driving Type: 6x4 / 10 Wheels / 3 Axles
Engine HP: 400HP / 430HP
Transmission: HW19710, 10 Forward, 2 Reverse
Certificate: CCC, BV, SGS, ISO9001, WMI
Availability:
Quantity:

Applications:

Suitable for urban construction, highway, railway,and other departments. With 400/430HP engine, is one of indispensable important equipment of the mechanized construction.



Production Description:

Howo 6x4 mixer truck is a truck used to transport concrete for construction. This type of truck is equipped with a cylindrical mixing tank to carry the mixed concrete.

Howo series mixers adopt strong and firm mixing tanks and different volumes. With 6cbm、10cbm、 12cbm、 16cbm 、20cbm for your choose, it could fully meets the needs of different users. the structure of mixer truck is compact and reasonable, and its performance is stable and reliable. The cab is luxurious, beautiful, safe and comfortable. Howo mixer truck is applicable to various construction sites and other construction sites.



Specification Sheet:


Model

ZZ5257GJBN4041W

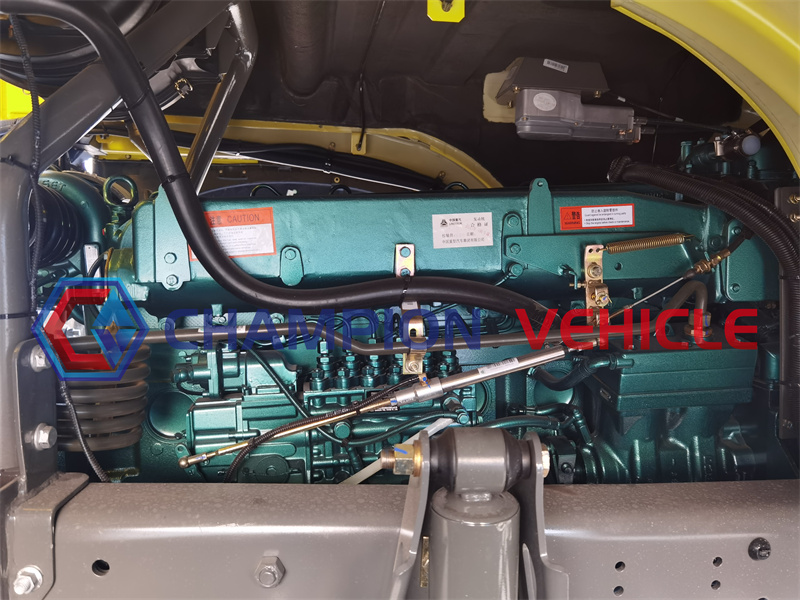

Engine

Model

WP12.400E201

WP12.430E201

Rated power

400HP (294Kw/rpm)

430HP(316Kw/rpm)

Displacement

4 stroke direct injection diesel engine

Type

6 cylinder in-line with water cooling, turbo-charging & intercooling

Transmission

SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse

Wheelbase

3600+1400mm

3800+1400mm

4000+1400mm

4300+1400mm

Mixer tanker size

8CBM

9CBM

10CBM

12CBM

Clutch

Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance

Front axle

Steering axle with double T-cross section HF9

Drive axle

Pressed axle housing, central single reduction HC16
Ratio:5.73

Chassis

Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel
Aluminum fuel tank: with 400 L fuel tank with locking fuel cap

Steering

Germany ZF, hydraulic steering with power assistance

Brakes

Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS

Wheel & Types

Rims: 8.0-20, 10 hole-steel
Types:315/80R22.5 tube
Option: 12.00-20 tube, 12.00R20 tube

Electrics

Operating voltage:24V, negative grounded;  Starter: 24V, 5.4KW
Alternator: 28V, 1540W;  Batteries: 2×12, 165Ah
Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp

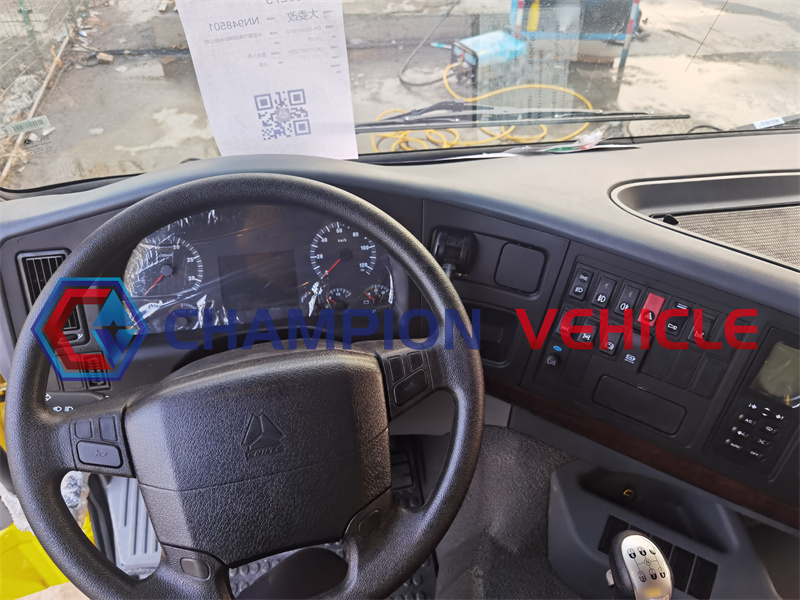

Cab

Model

HW76

Type

HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt.

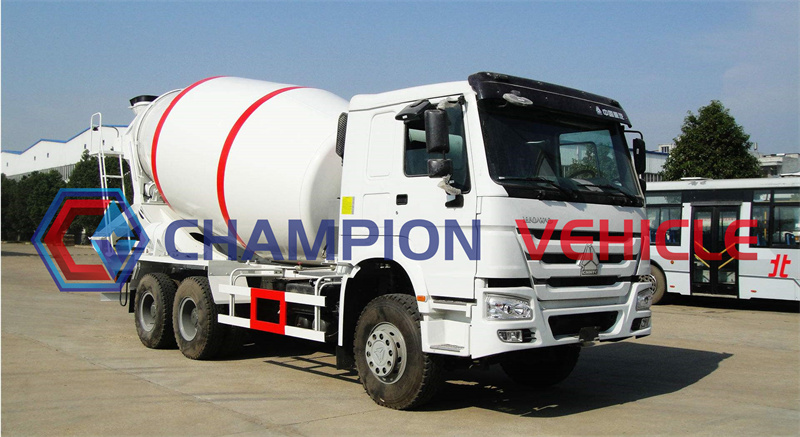

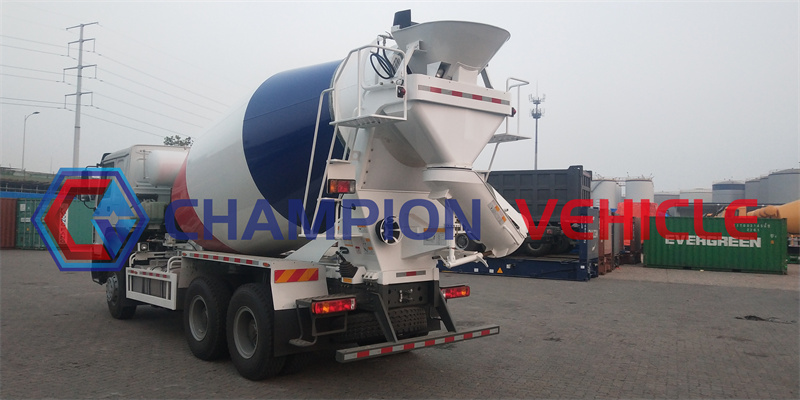

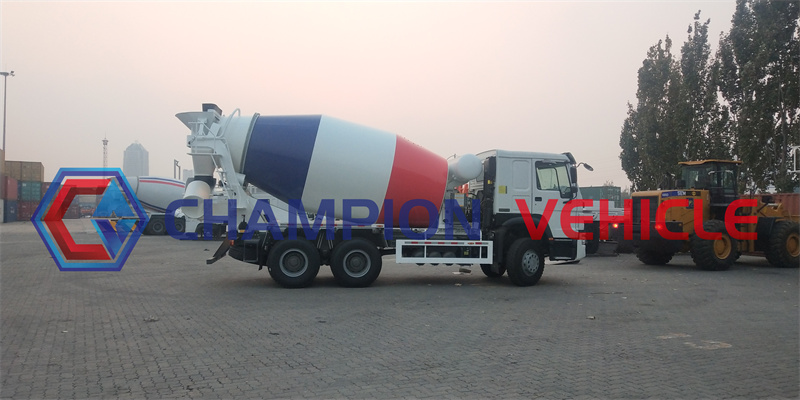

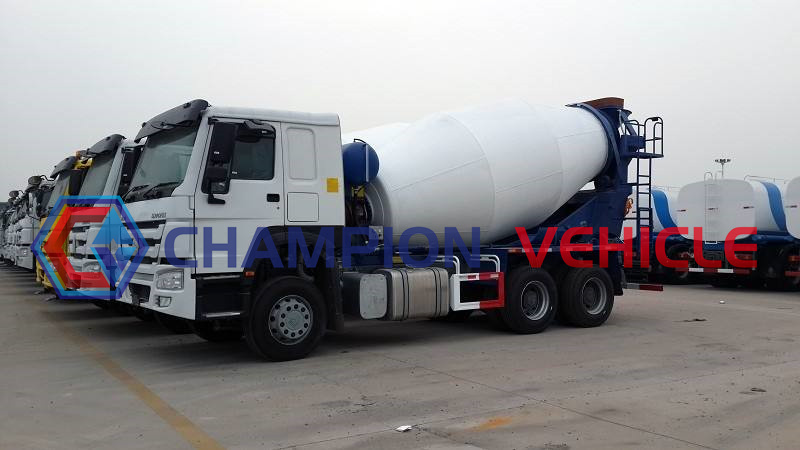

6x4搅拌车6x4搅拌车1IMG_20181024_170353IMG_20181024_170419Product Picture (10)Product Picture (13)
