Applications:
The 40FT Fence Trailer could transport 1*20ft container, 2*20ft container or 1*40ft container or bulk cargo.
Production Description：

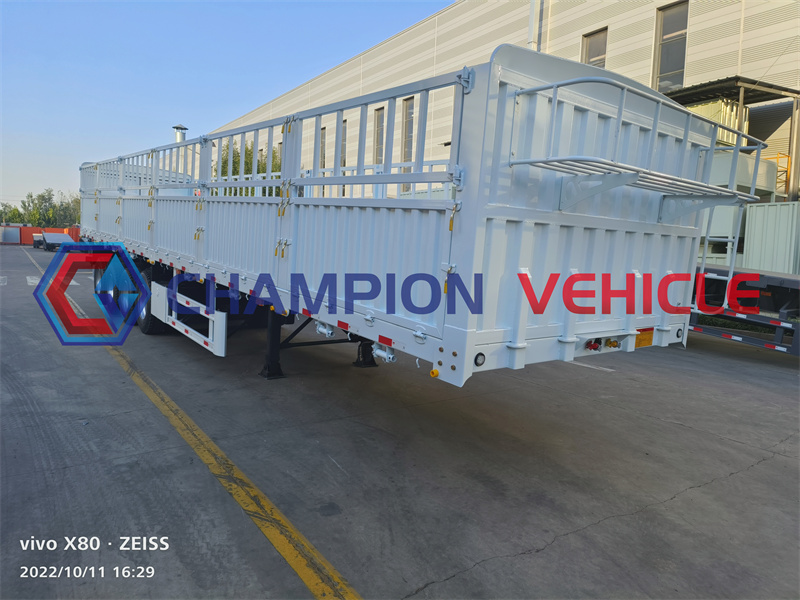

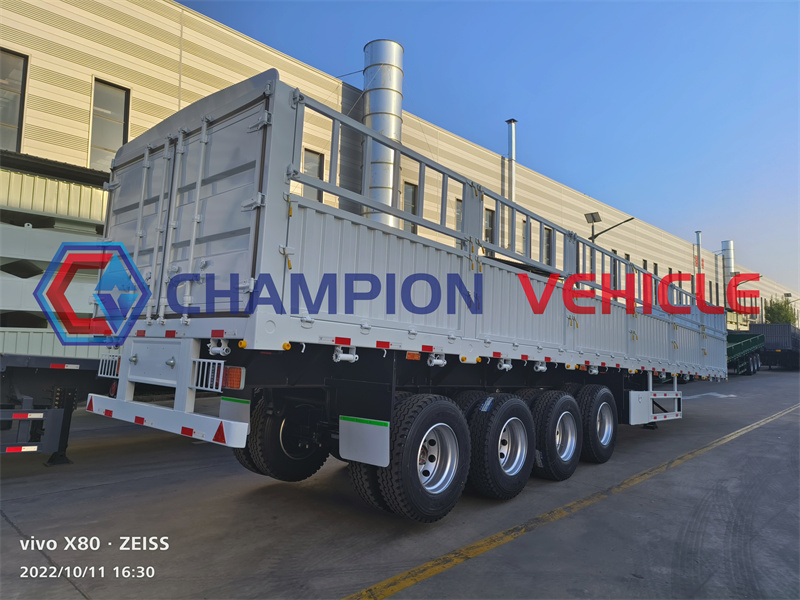

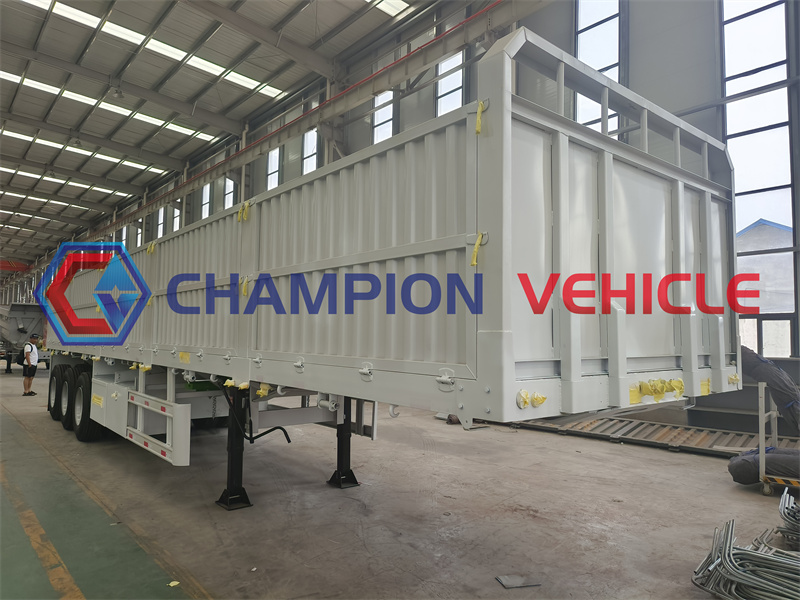

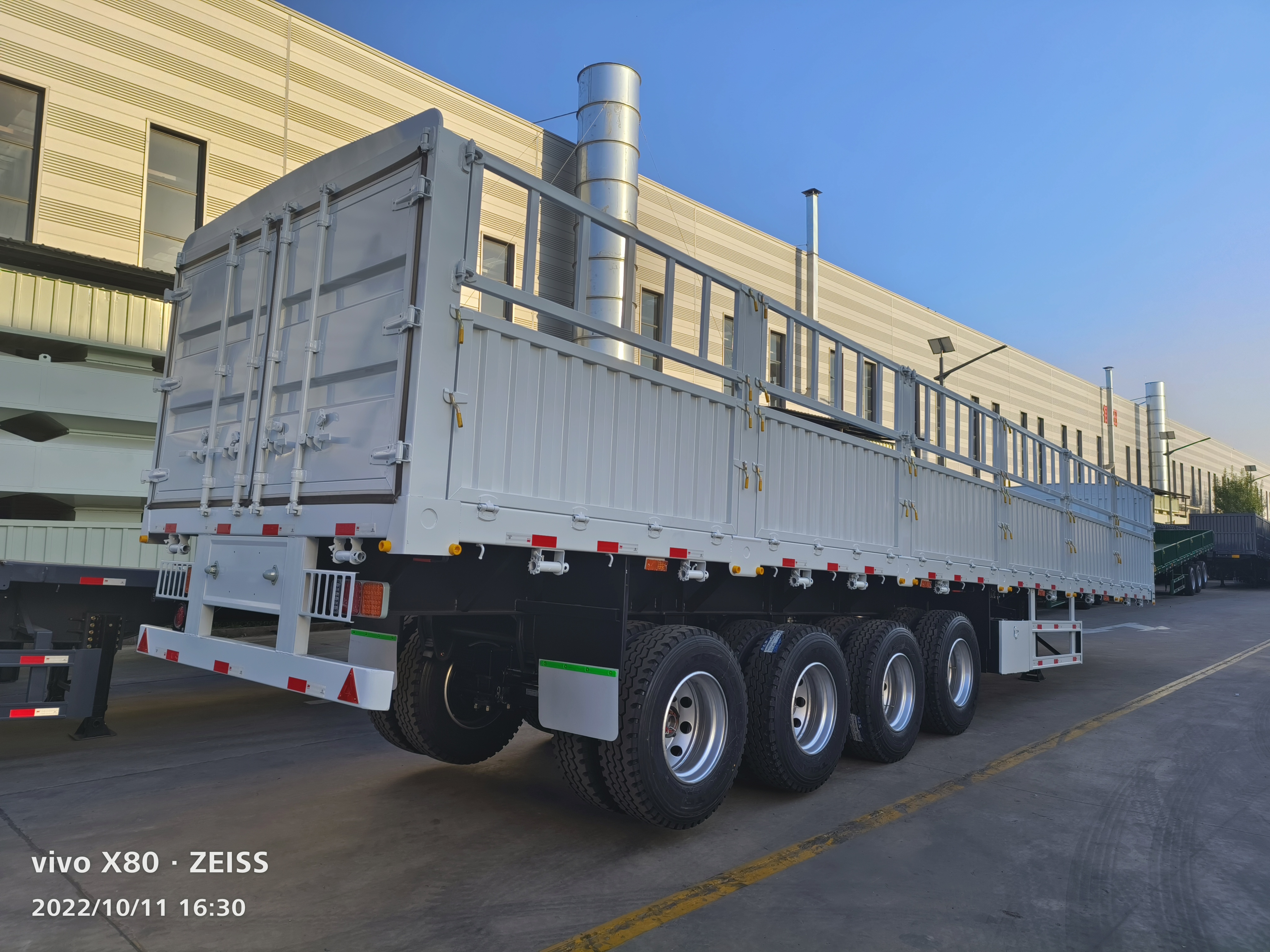

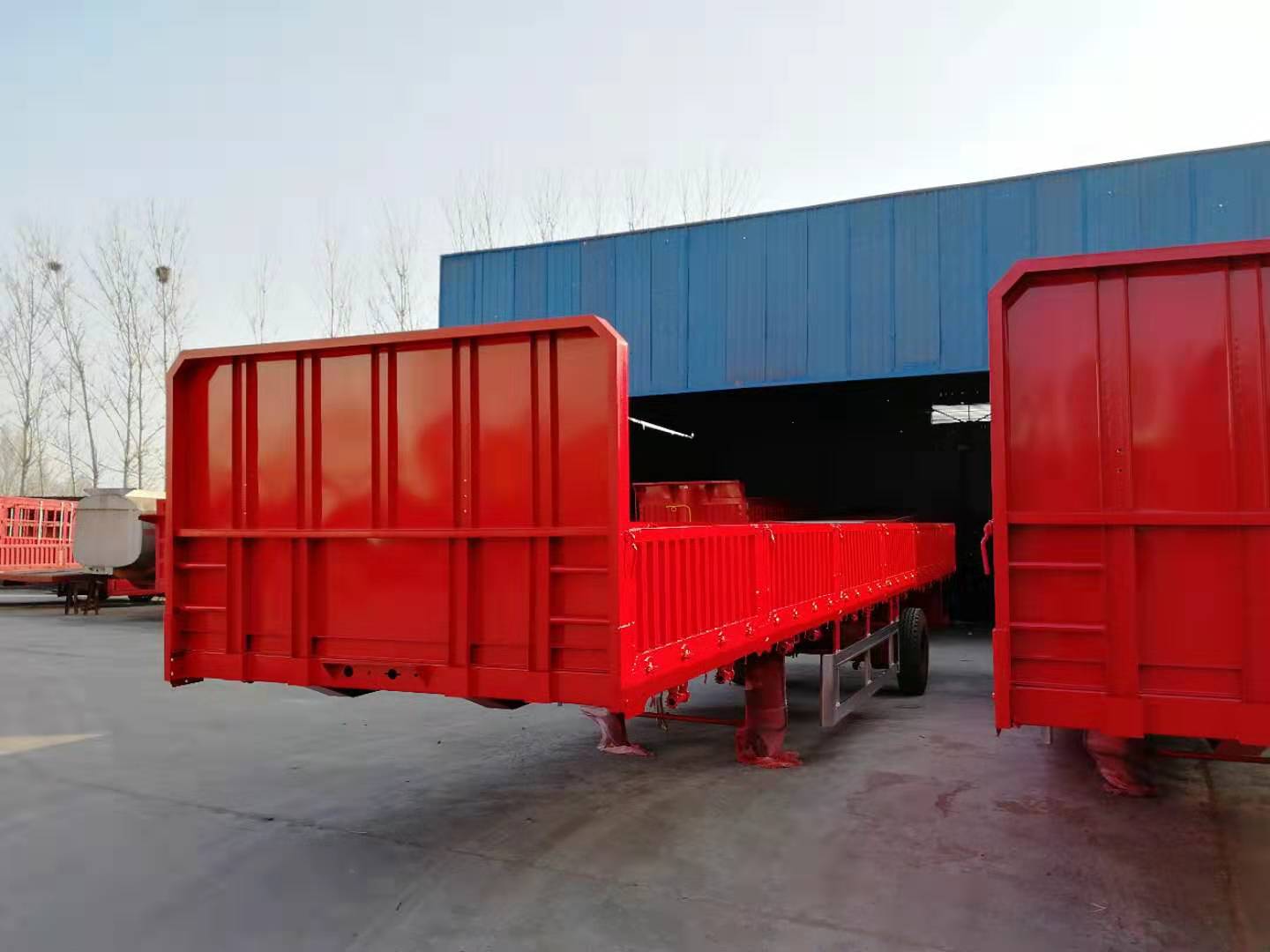

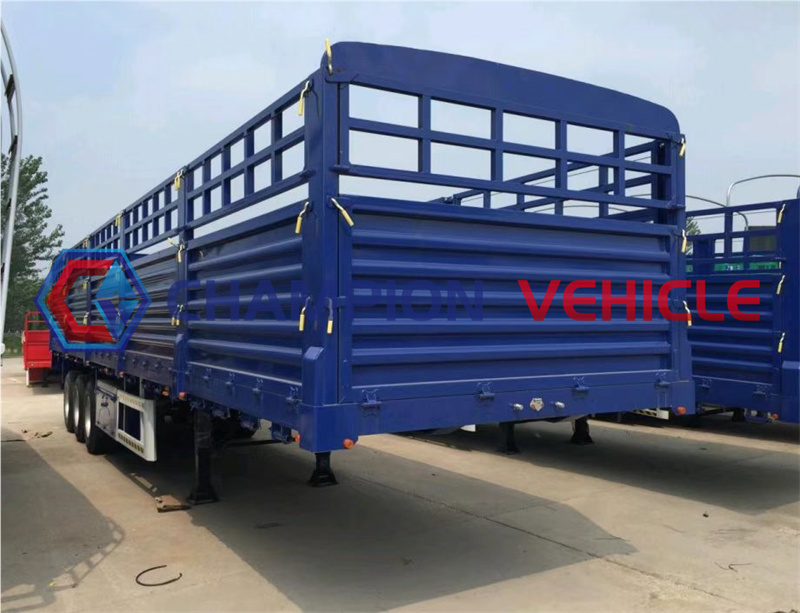

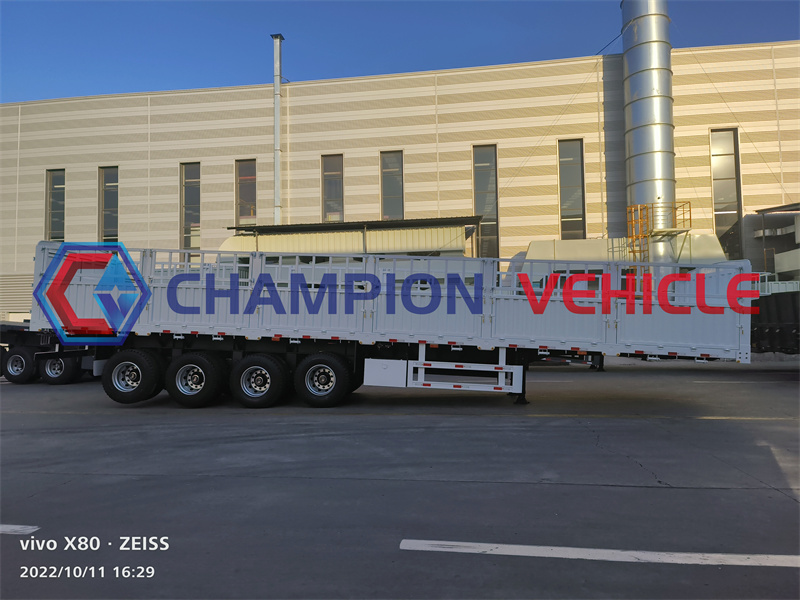

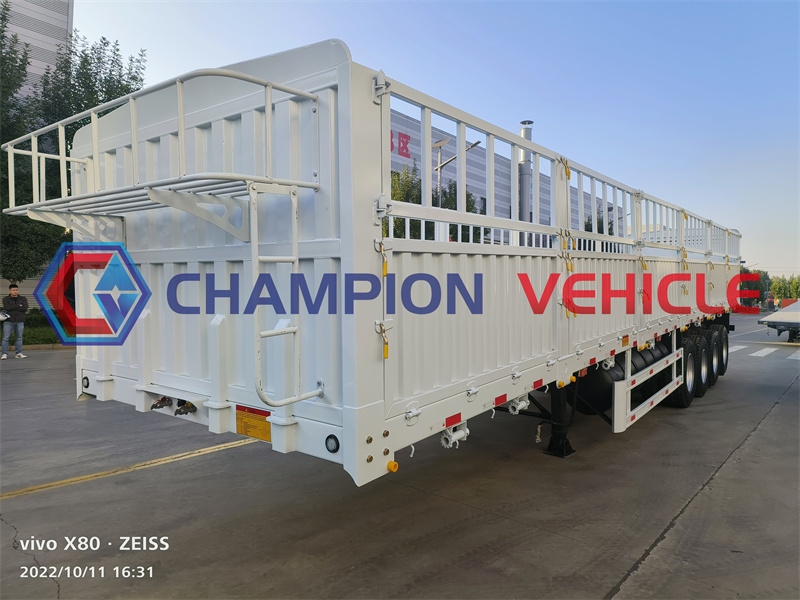

The 40FT Fence Trailer is a heavy-duty vehicle used to transport large and heavy goods. 40FT Fence Trailer is equipped with three axles, which distribute the weight evenly and allow for better load capacity.
Specification Sheet:
Dimension(L×W ×H)（mm） | 13000×2700×2500 |
Loading capacity | 90Ton |
Cargo body | 13000x2700x（800+400 or 600）mm |
Cross-beam | 500mm |
Upper and lower wing plates | 20mm, |
Side beam | 20# Channel steel |
Axle | 3 axles FUWA Brand 13Ton |
Fuel tanker capacity（L） | 400L |
Water tanker capacity（L） | 400L |
Tire | 12.00R24 x12 units |
Wheelbase | 1350mm |
Suspension | Strength More Widen and thicken Mechanical suspension with 10 layers leaf spring |
King Pin | 90# high tensile steel bolted typet |
Landing Led | Jost |
Container locks | 12units |
Bunch + Lamps | Entire airproof bunch +lamps，seven core socket |
Braking system | WABCO Emergency relay valve, two Air reservoir, Double braking chamber, Single braking chamber，Handle joint，Handle valve |
Light | 12V Rear light，rear reflector，turn indicative light，side reflector，fog lamp，number plate light |
Other options | Rope hook + Rope Tightener 8unit/each side Reinforcing bar for beam |
