Applications:
The 40ft 12.5M 3 Axle Drop Side Semi Trailer could transport 1*20ft container, 2*20ft container or 1*40ft container or bulk cargo.
Production Description：

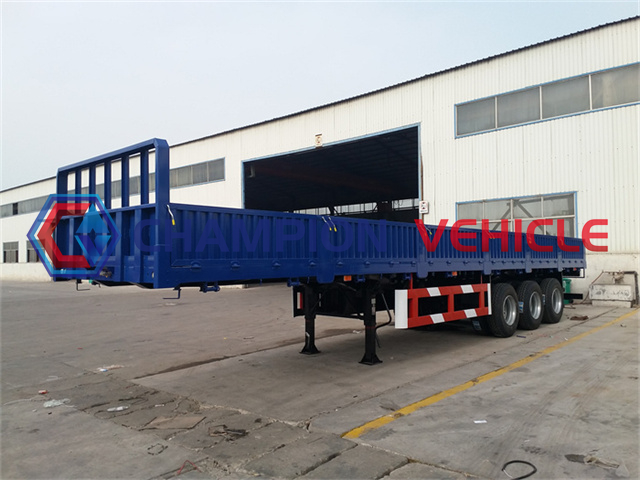

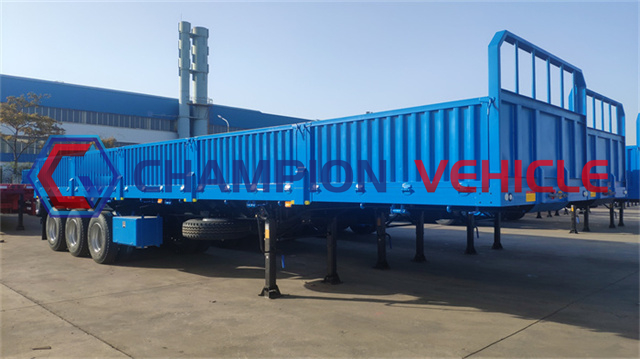

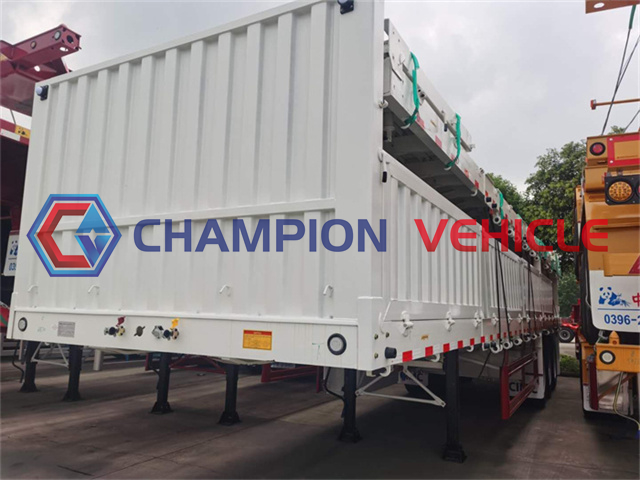

The 12.5M 3 Axle Drop Side Semi Trailer is a heavy-duty vehicle used to transport large and heavy goods. 12.5M 3 Axle Drop Side Semi Trailer is equipped with three axles, which distribute the weight evenly and allow for better load capacity.
Specification Sheet:
Overall (L*W*H) | 12500*2600*1500mm |
Payload | 60 tons |
Main Beam | High strength low alloy Q345 steel |
Floor | 3mm checkered plate |
Side beam: | 160mm high fabricalble “C” type channel steel. |
King Pin | 2" (50#) high tensile steel bolted type, exchangeable |
Landing Leg | 28T capacity |
Suspension | American Type Heavy duty under mount tri-axle suspension with equalizers with 10 layers leaf spring(width: 90mm, thick: 13mm) |
Axle | 150x150 Square axle with 13 tons capacity. 3 pieces. |
Tire | 12R22.5 Tire,12pcs, China Famous Brand. |
Rim | 9.00*22.5, 10 Holes ISO, 12pcs |
Brake System | Dual air brake system, WABCO relay emergency valve. |
Brake Chamber | Type 30/30 on the rear two axles, Type 30 on front axle. |
Electrical System | 24 volt lighting system with modular wiring harness, 7 way ISO receptacle in front of the front bolster, norms NO.1185, Chinese standard. |
Twist Lock | 12 units, ISO Standard. |
Spare Tire Carrier | Equipped two sets per trailer |
Spare Tire | 1 unit |
Side Guard | Standard |
Tool Box | 1 unit, 1m long. |
Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
Painting | Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats |
