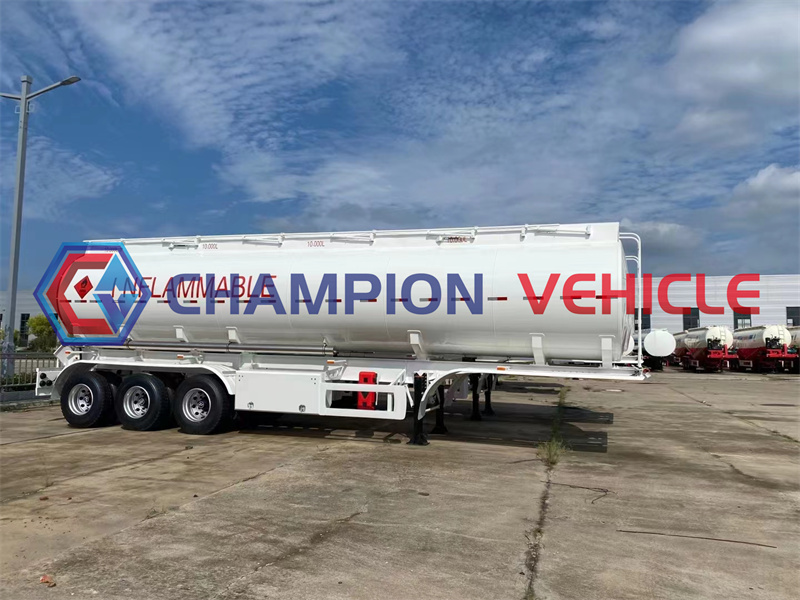

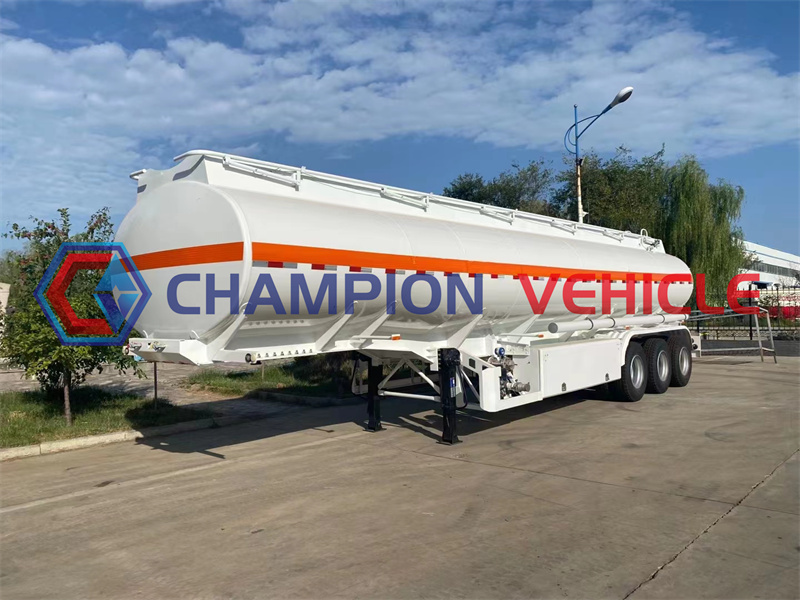

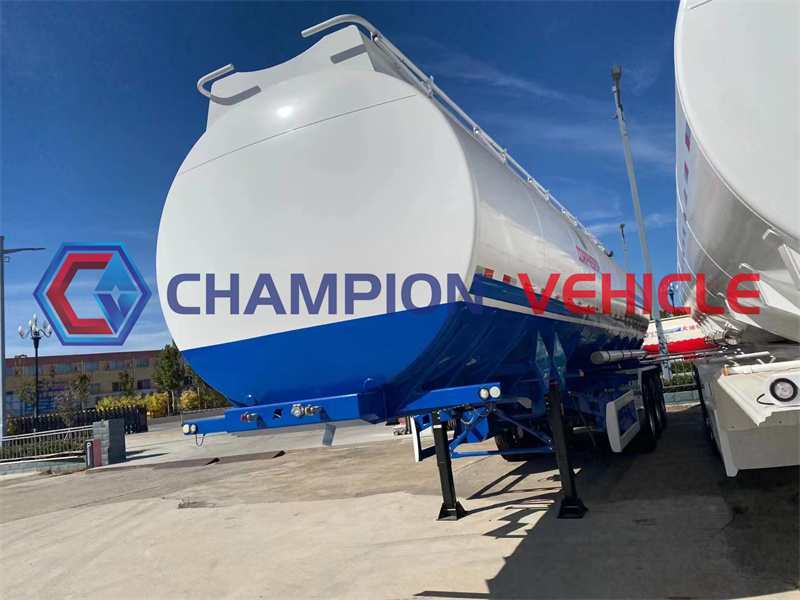

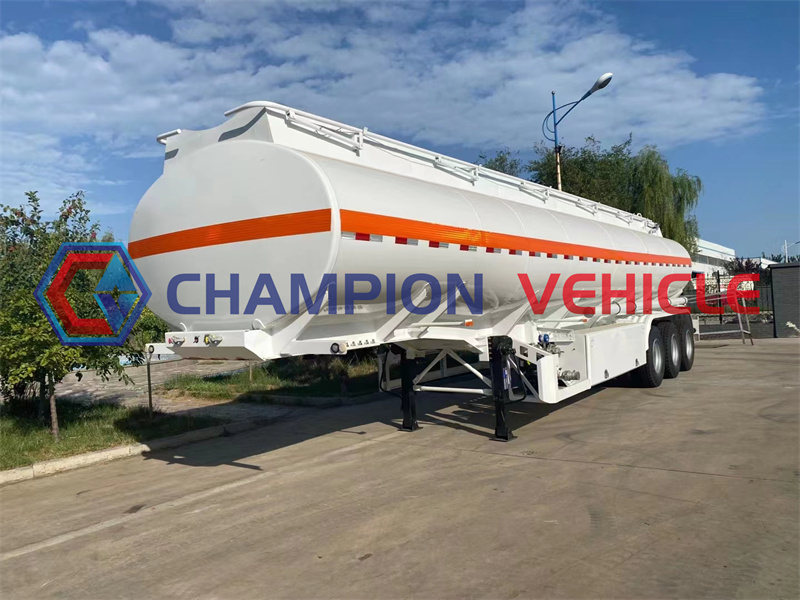

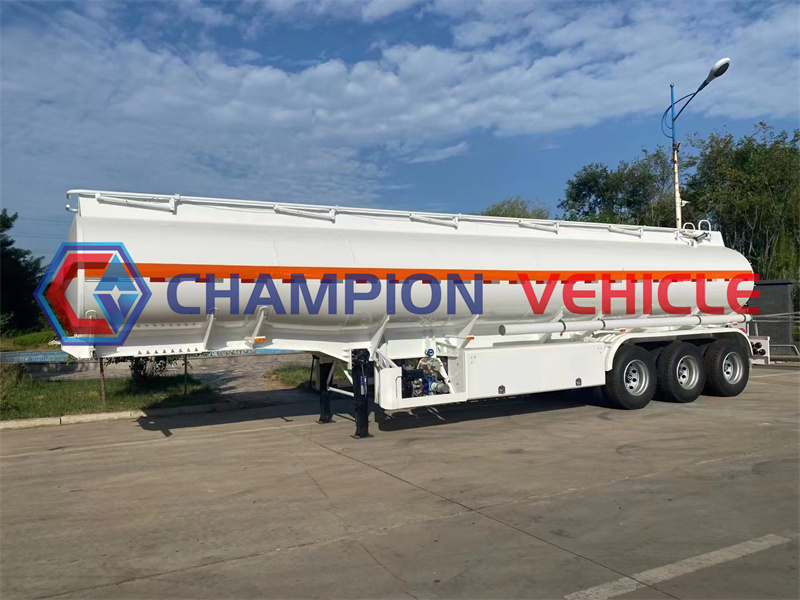

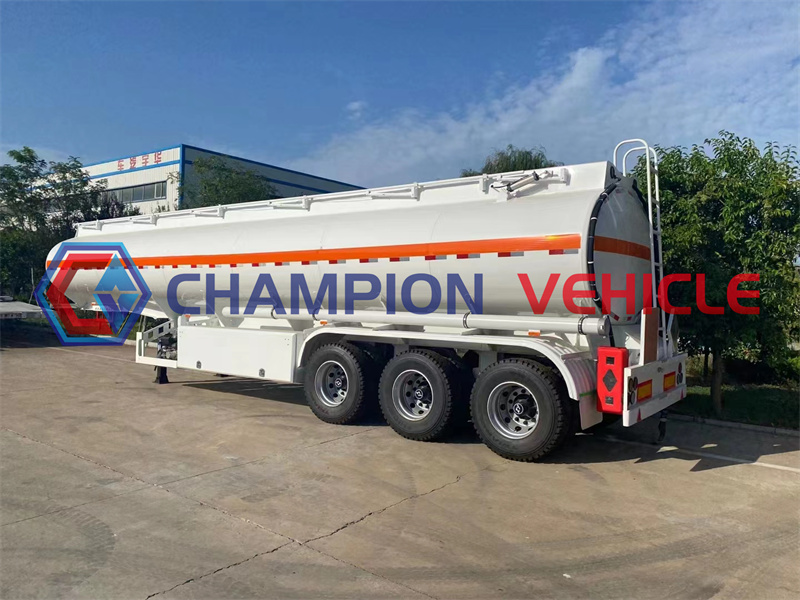

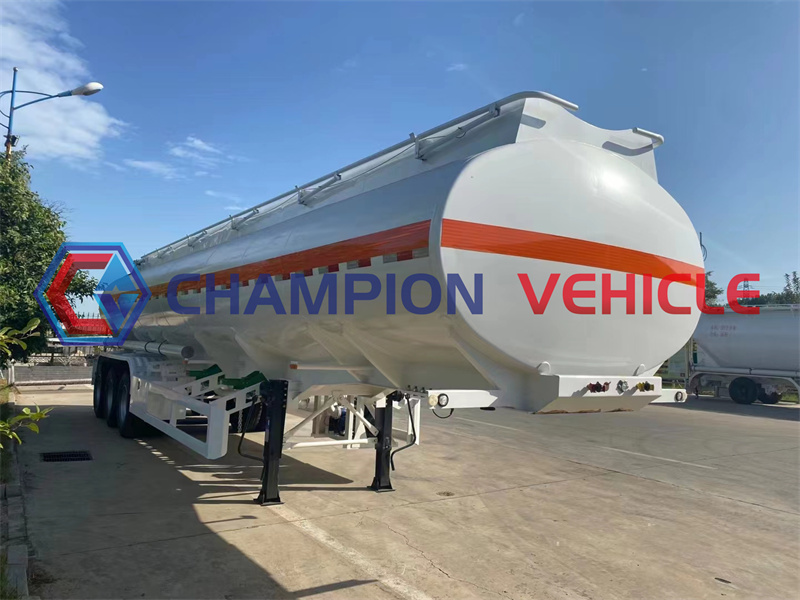

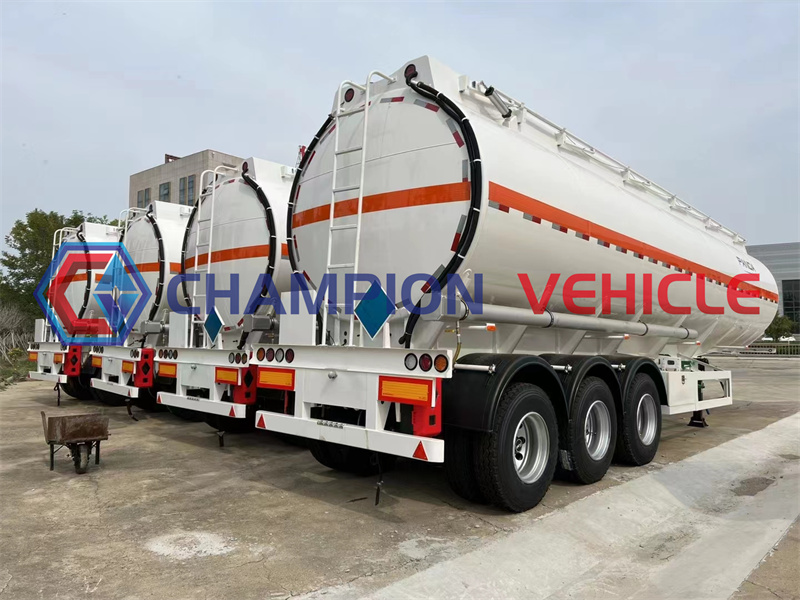

The 40CBM 3 Axle Oil Tanker Trailer is used to transport diesel, petrol, oil and so on. We produce aluminum fuel tanks, aluminum tanker trailer and oil tank semi trailer.
Oil Tanker Trailer Specification:
Parameter | Dimension | length×width×height:12000×2500×3700mm |
Tare Weight | 10 tons | |
payload | 55 tons | |
GVWR | 65 tons | |
Fabric | End Plate | 6mm |
Tanker Body | 5mm | |
Wave-proof plate | 4mm | |
Volume | 40000L | |
Painting | Primer + top coat | |
OEM | Manhole Cover | 4 sets, with breath valve |

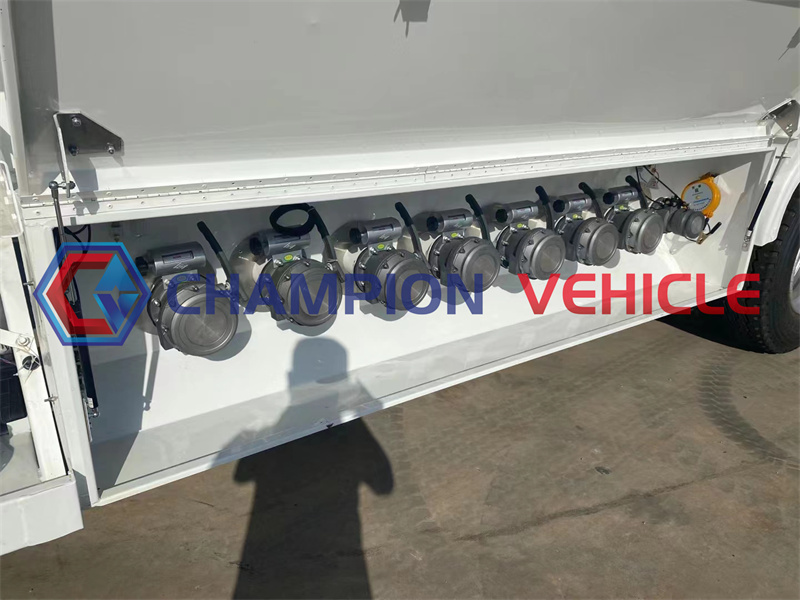

Discharge Hole | 4 sets, 3 inches | |
Discharge Pipe | 4 inch seamless steel tube | |
Compartment | 4 | |
Emergency valve | 4 inch bottom valve, 1 set | |
Landing gear | 28T | |
Kingpin | 2”JOST ,exchangeable | |
Brake System | 2 line pneumatic brake system.30/30 type break chamber on each axle | |
Electrical System | Chinese standard 12 or 24V; 7 ways receptacle; LED lamps | |
ABS | No | |
Suspension | Mechanical suspension with 10 leaf spring. | |
Leaf Spring | 10pcs, 90*13mm | |
Axle | 13T, Fuwa Brand | |
Tire | 12R22.5, 12pcs, Chinese Famous brand. | |
Tool Box | 1 set steel box,1m | |
Spare Tire Carrier | 2 units | |
Color | As customer request | |
Others | · LED lights，equip side turn light. · Mudflap · Nameplate:English model |
