35CBM 3 Axle Powder Tanker Semi Trailer

Trailer Model: 35 M3 CEMENT BULKER TRAILER
Overall Dimension (LxWxH)(mm):12000x2500x3900mm bulk cement
Loading Weight (KG):60000kg
Axle:3x13Ton, FUWA brand


Availability:
Quantity:

Product Description:
3 axles 35CBM 60 tons bulk cement bulker tanker truck trailer is used to transport bulk powder such as cement, flyash, and other powder which is smaller than 1mm.
It is cement tank trailer, and we can also supply cement tanker truck.

The cement bulker trailer is able to delivery more cement by one trip, and save packaging cost for the user.


Main specification:

Trailer Model

45 M3 CEMENT BULKER TRAILER

Overall Dimension (LxWxH)(mm)

12000x2500x3900mm bulk cement

Function

transport bulk powder

Thickness (mm)

5mm Carbon steel Q235B

Loading Weight (KG)

60000KGS BULK CEMENT TANKER

Axle

3x13Ton, FUWA brand

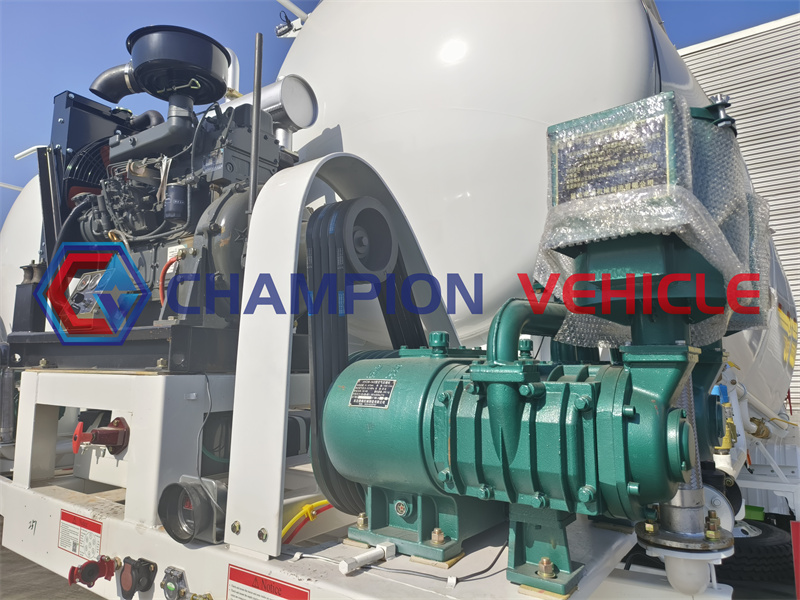

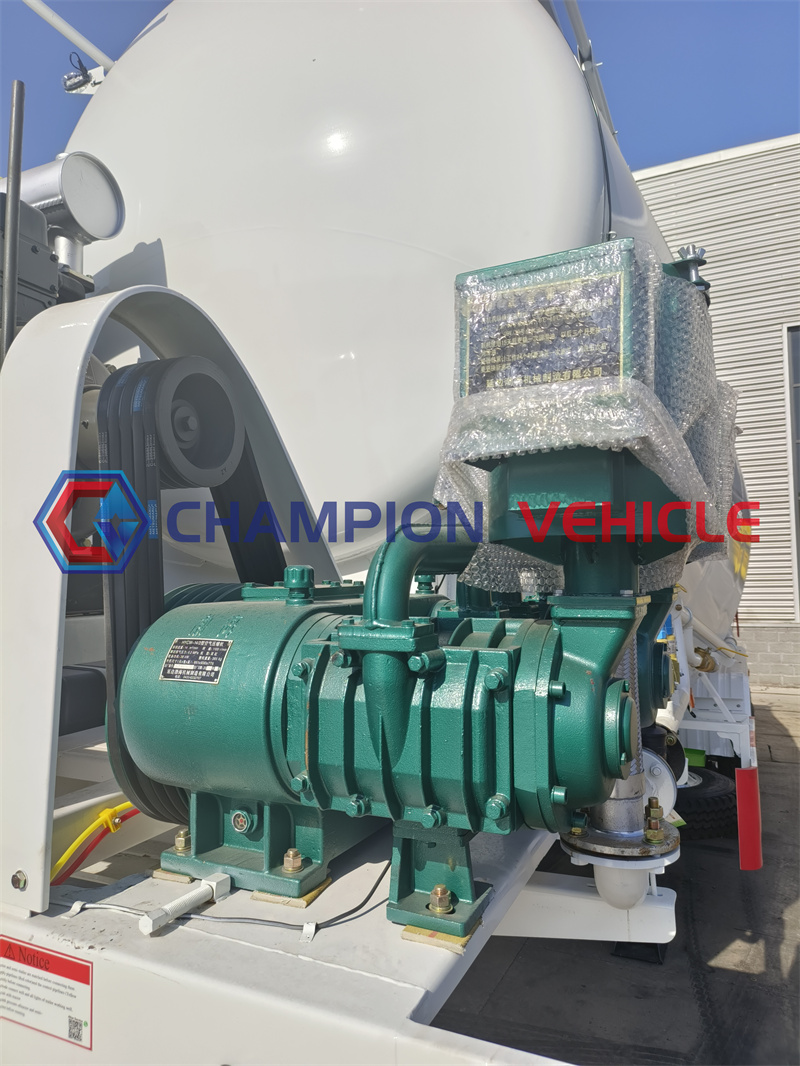

Air compressor

37 KW,0.2Mpa. 1000r/Min (12m3/minute) Bohai brand

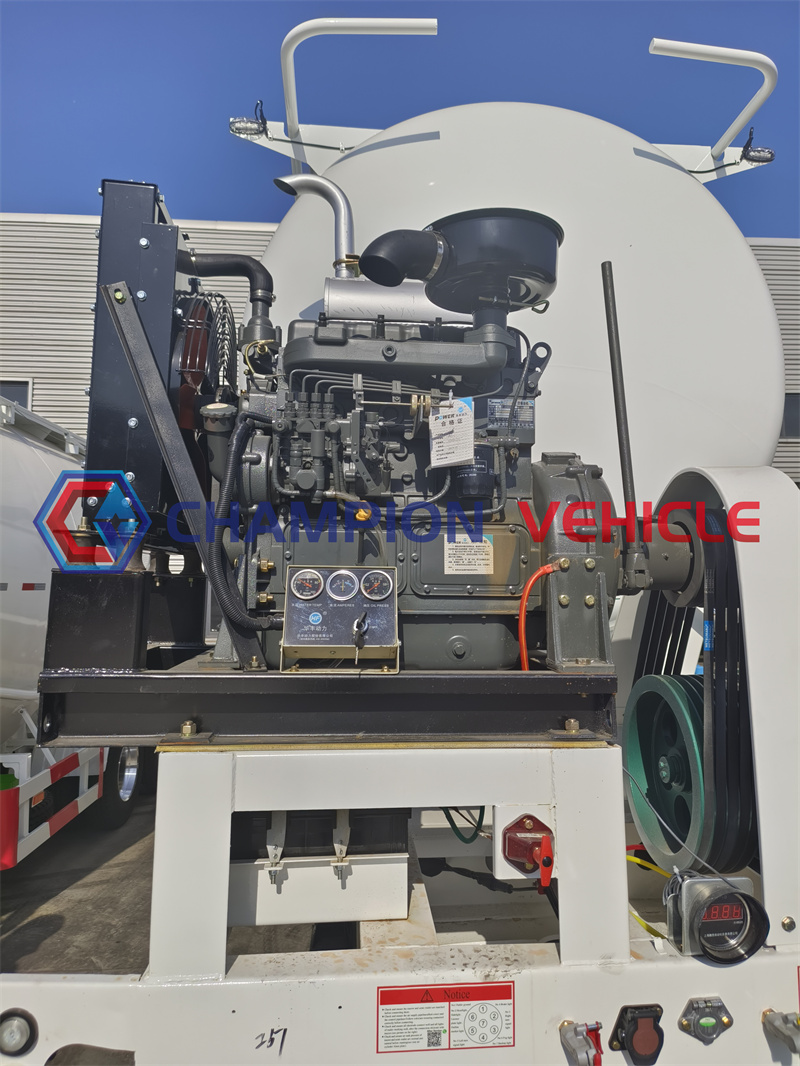

Diesel engine

Diesel engine: Weichai brand
Model: 4102

Compartment

1 inner fluidized bed: air bag

Manhole cover

500mm manhole cover

Suspension system

Standard Mechanical suspension

Steel Spring

-10/10/10 leaf spring suspension

Tire

12R22.5 12units tubeless tire

Traction Pin

50mm or 90mm optional

Spare Wheel Bracket

2 pieces

Tool Box

1 Standard

Landing Gear

Standard 28 tons

Brake system

Dual Line braking system

Brake air chamber

WABCO brand, Six big double air chambers

Electrical system

1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Side Guard

According to customer's requirement

Painting

According customer requirement

Packing

Polish with wax before shipping
