| Quantity: | |
|---|---|

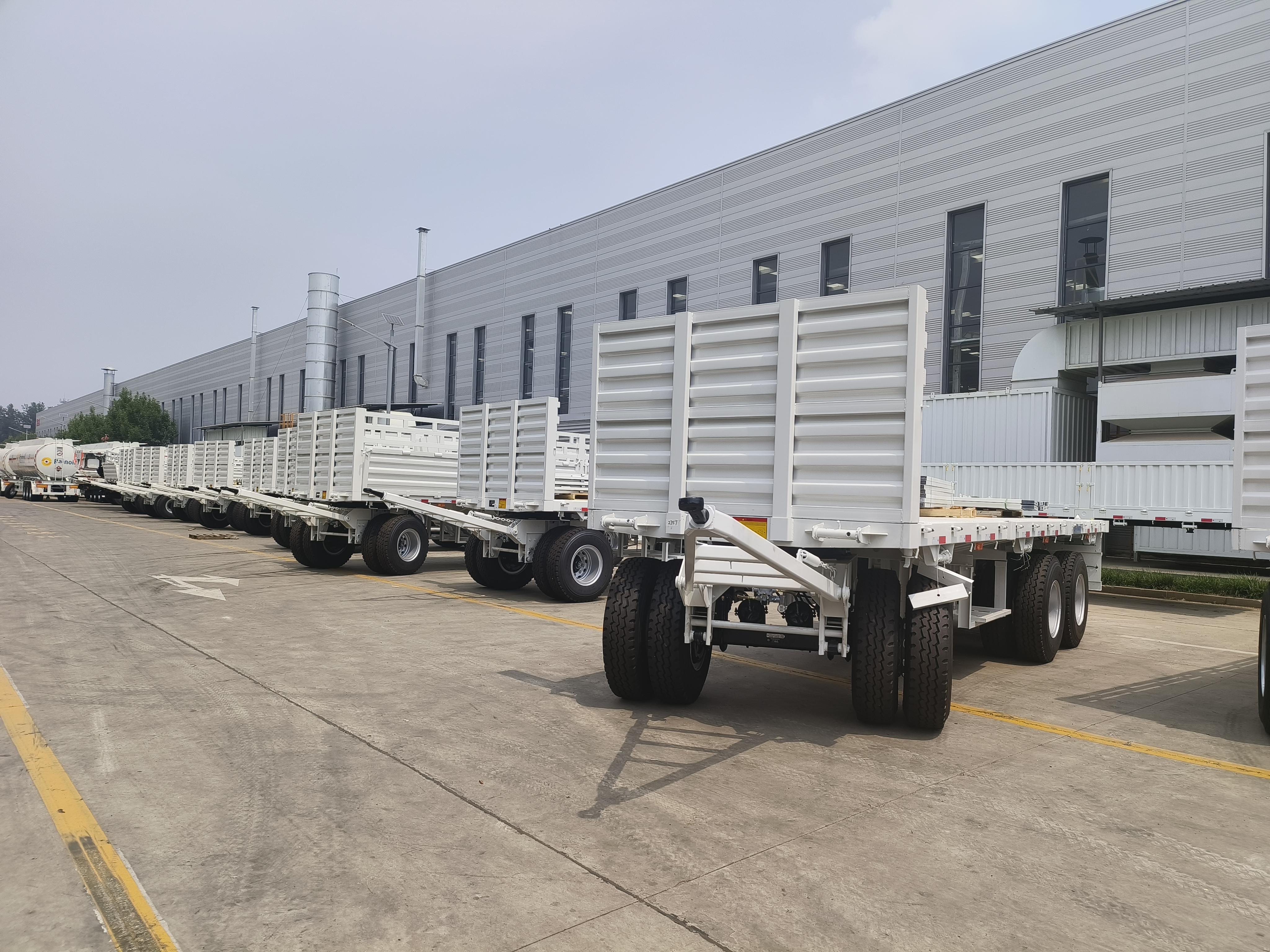

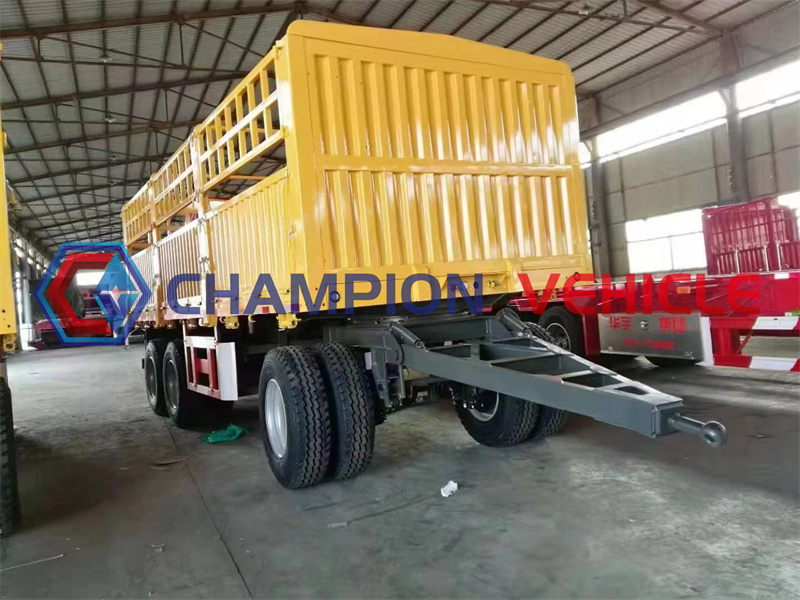

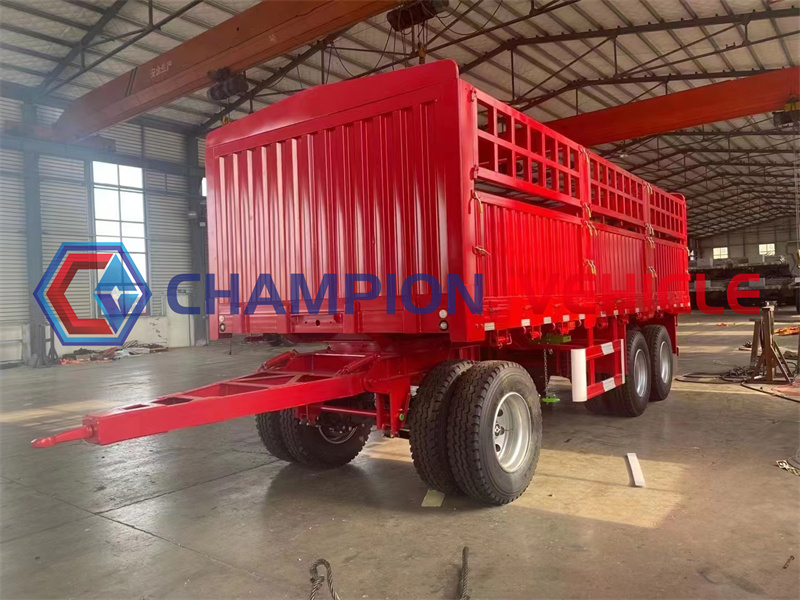

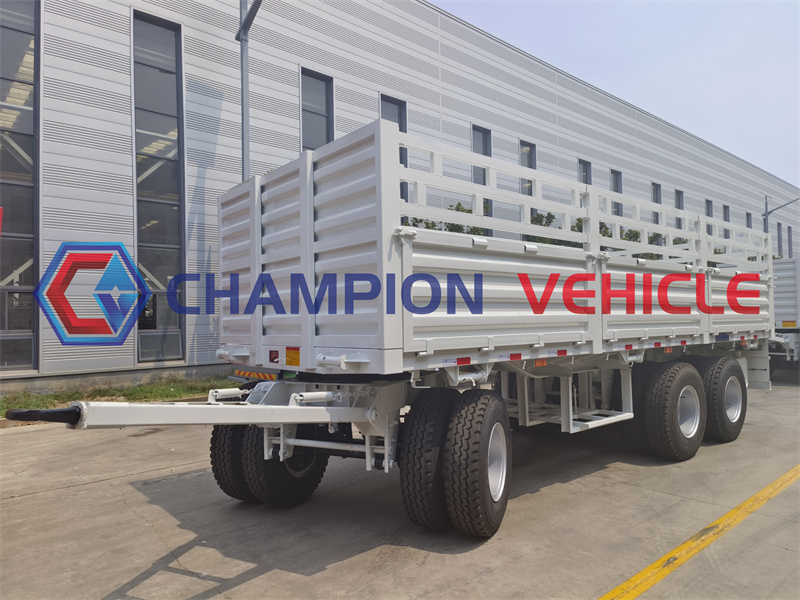

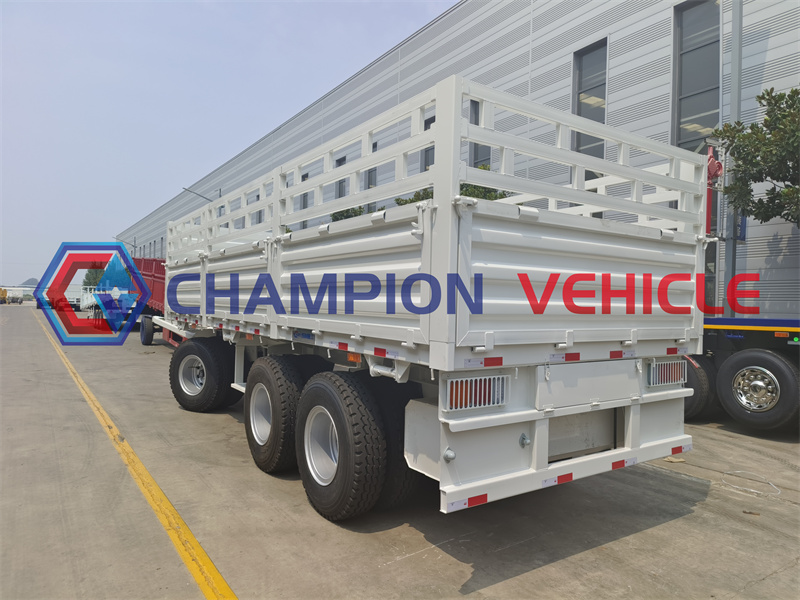

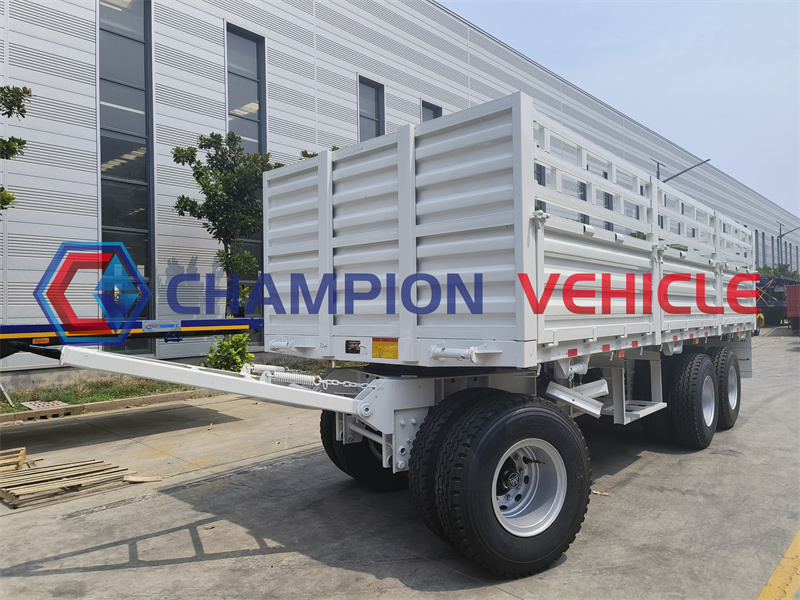

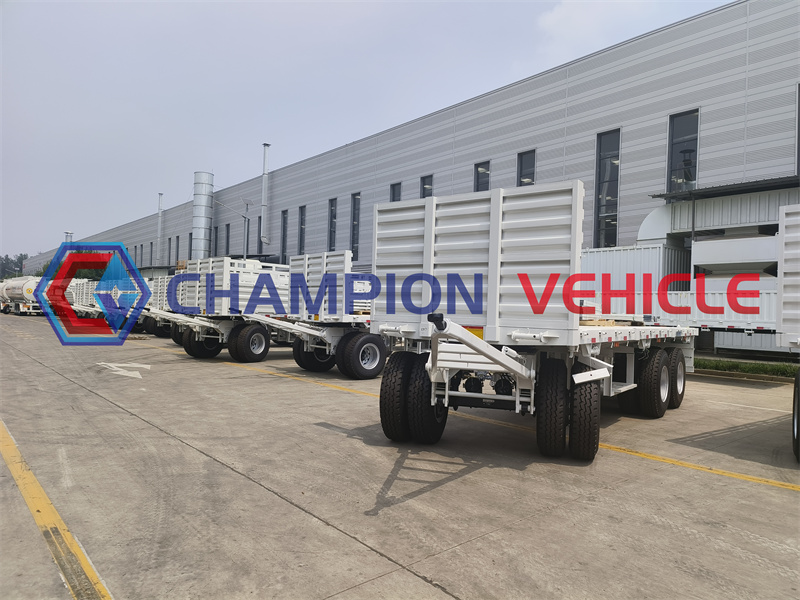

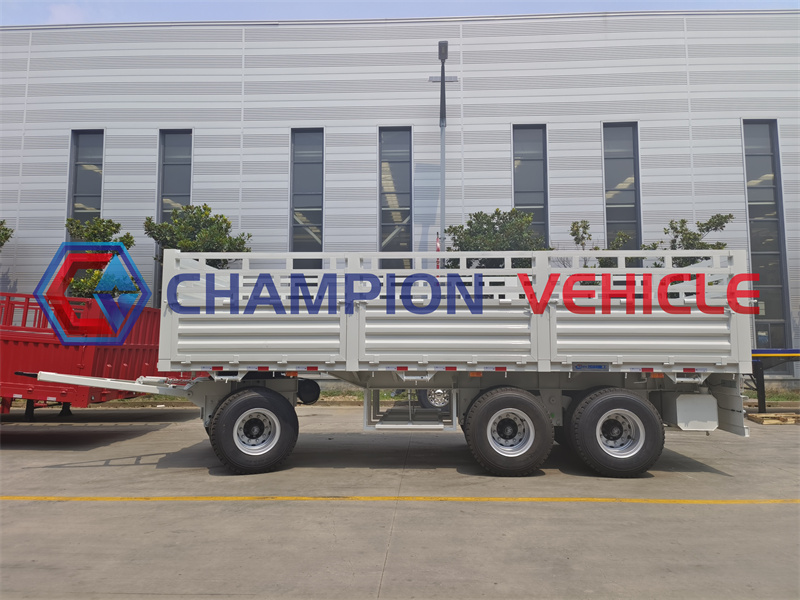

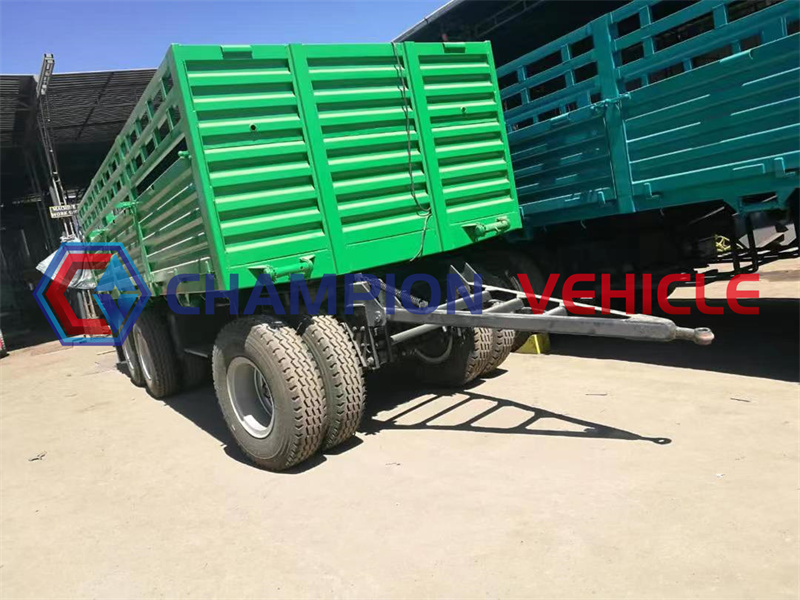

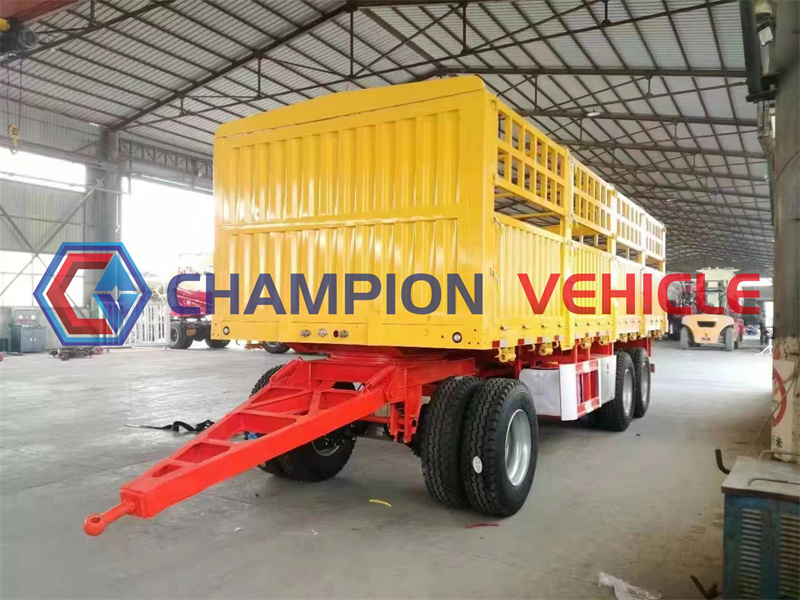

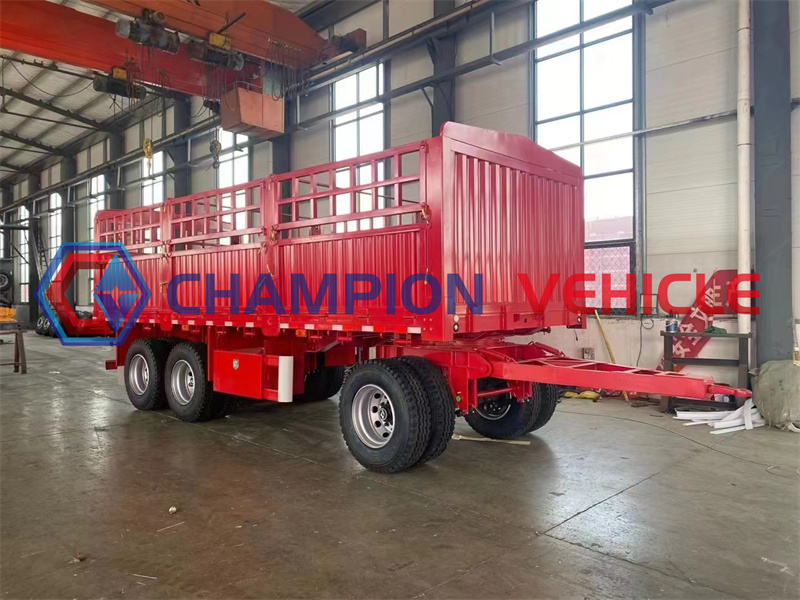

Model | 3 axle dry cargo draw bar trailer |

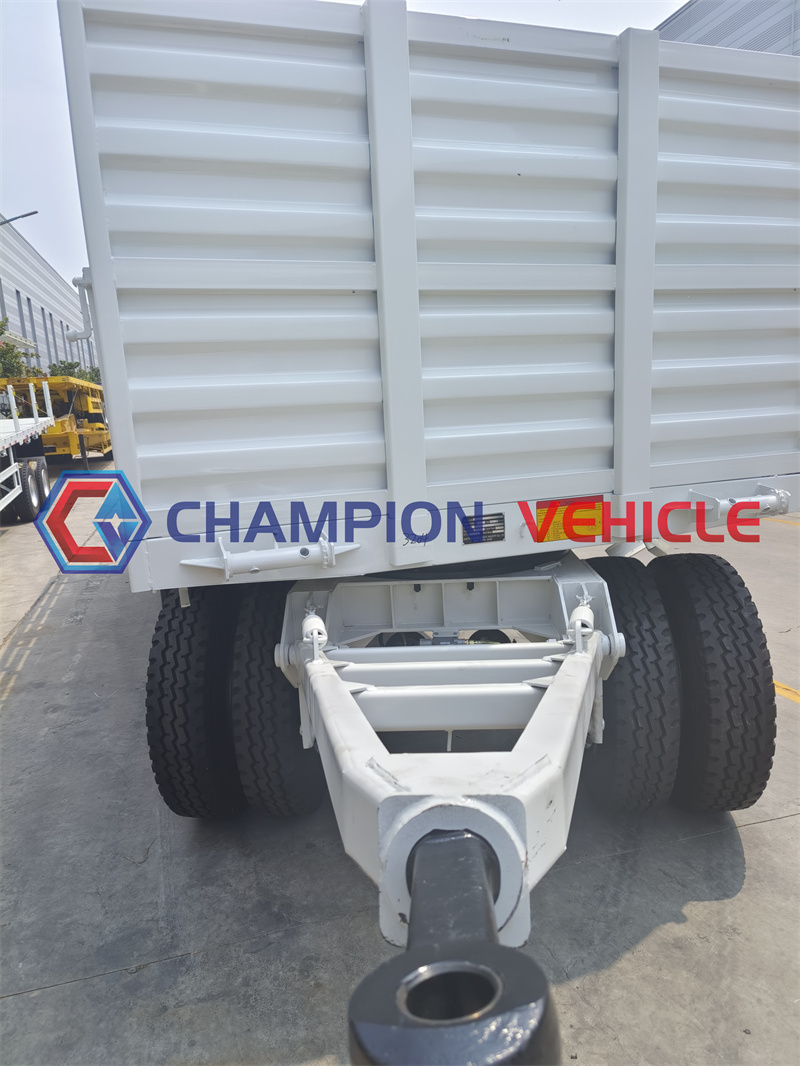

Over all Dimensions | Overall Length: Approx 7,500 mm(without draw bar) Overall Width: Approx 2,560 mm (external) Overall Height: Max 2600mm Draw Bar Length: Approx 2,081mm Draw bar Height: Approx 840mm from the ground |
Weight
| Max technical weight per axle:12Ton Gross Vehicle Weight: 30Ton Max. Payload: 22 Ton Tare Weight: 8Ton |
Chassis&Plate form
| -Two Built up section(I-profile) chassis made of quality steel -Plateform reinforced with sufficient number of internal and external C-profile cross -Equipped with sufficient numbers of small hooks ,big hooks and winches. -Twist lock for 20feet ISO standard container(Optional) Total height:1400mm Fix type made of corrugated sheet of thickness 2mm |
Axle and suspension

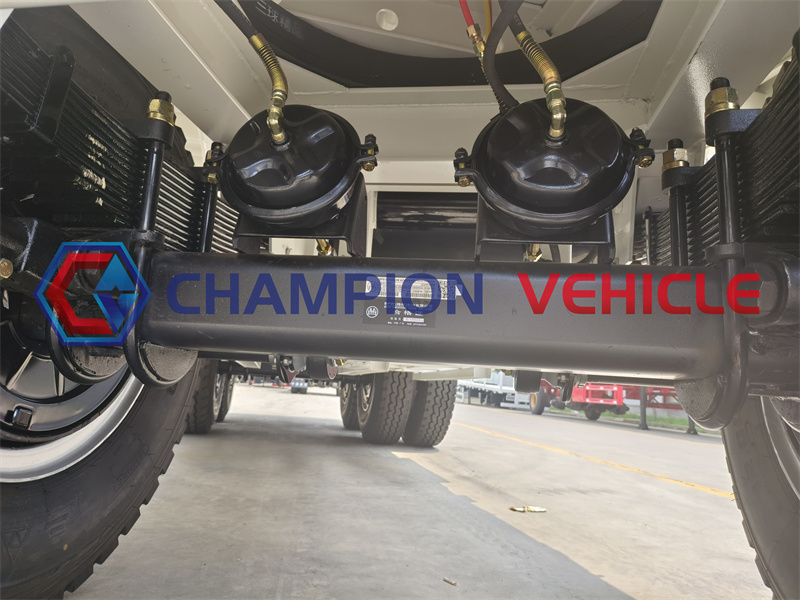

| -BPW heavy duty tri dem type axles constructed of square tubular sections:3x12tons capacity, disc brake -Mechanical heavy duty , BPW, semi elliptical multi leaf spring cantilever suspension, that matches the axle load capacity -Bearing type wheel hub completely sealed to avoid dust -Wheel base:3800+1360mm -Ground clearance:350mm (full loaded) -Country of orgin: China |
Tyres | -Supply 12.00x20,18 PR tube type -12+1Spare -Brand: China famous brand Linglong or Triangle
|
Wheel and rims | -Heavy Duty interchangeable double tired wheel and rims should be fitted -8x20’’ -12+1spare |
Brake system

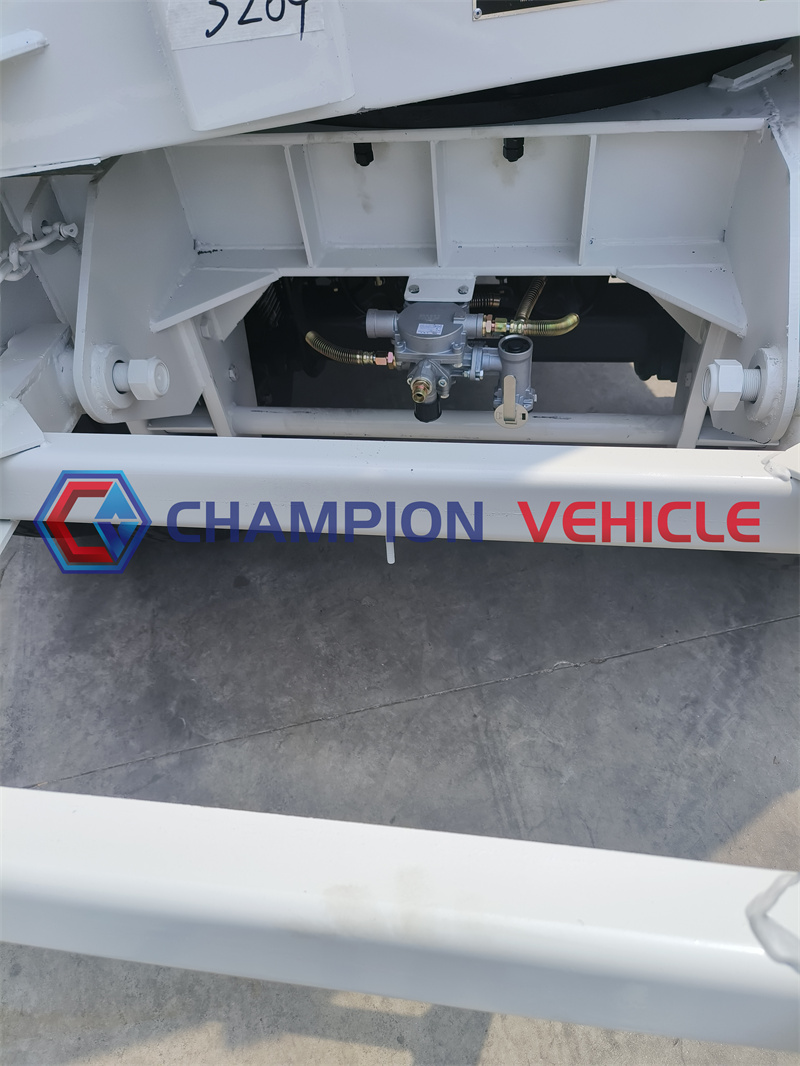

| -Air Brake system assembled to ISO standard -Manually operated mechanical parking brake -Brand:WABCO -Courty of Orgin:China
|
Electrical system
| -ISO standard 24V electrical system, which fit to seven way electrical coupler of trucks main electrical system Light system consists: -Two combination tail & stop lights, parking light, backup light and direction light -Two reflectors on each side at rear side -clearance light at the rear side -plate lamps -All wire adequate size, well protected and insulated electrical lines -Country of Origin: China
|
Others

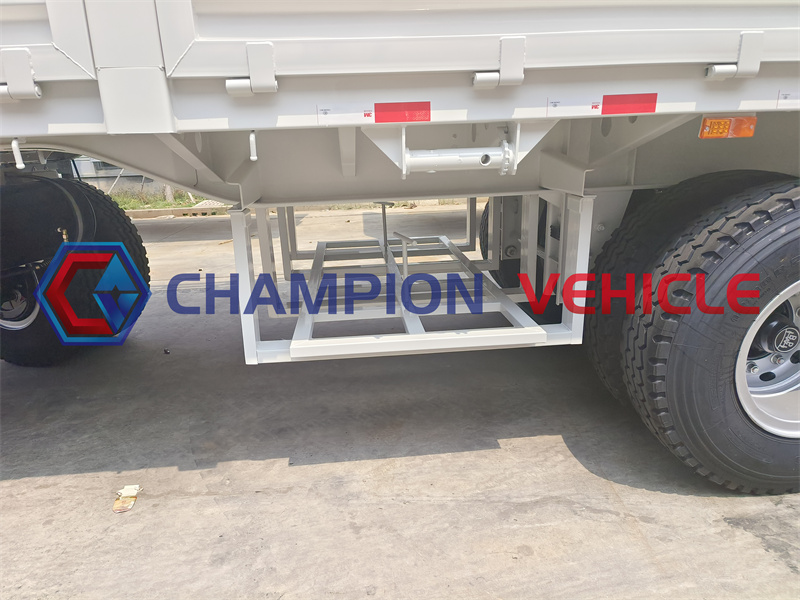

| -Lockable tool box(one at rear bumper) -spare wheel carrier for two wheels, our standard is different type, it is better supply in Ethiopia -heavy duty steel mudguard with rubber flaps fixed on the frame by bolts -heavy duty rear bumper constructed from quality steel and it has reflector -reserve fuel tanker(400litre) -Tail light gravel protection
|
Painting
| -The surface of the trailer shall be treated with one coat of anti rust and one coat nitro -Final paint color chosen by customer |
