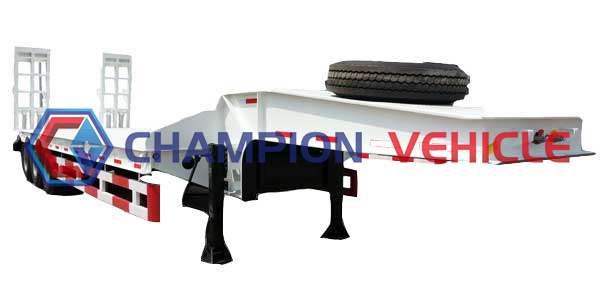

13M 80T 3 AxleLowbed Semi Trailer is designed to transport heavy goods and oversized equipment. Its low platform provides a low center of gravity, making it ideal for loading and unloading. The 13M 80T 3 AxleLowbed Semi Trailer features three axles for superior stability and weight distribution. The Landing Gear with 2 speed road side winding with sand shoe, GOLDEN STONE，Static Lifting capacity 80T. this semi-trailer is perfect for heavy loads that require wide loads, tall loads, or oversized loads.
Product Specification：
Overall (L*W*H) | 13000*3000*3420mm |
Payload | 80 tons |
Unladen platform length | 8,765mm |
Unladen platform height | 1275mm |
Main Beam | High strength low alloy Q345 steel |
Floor | 4mm checkered plate |
Side beam: | welded steel beam |

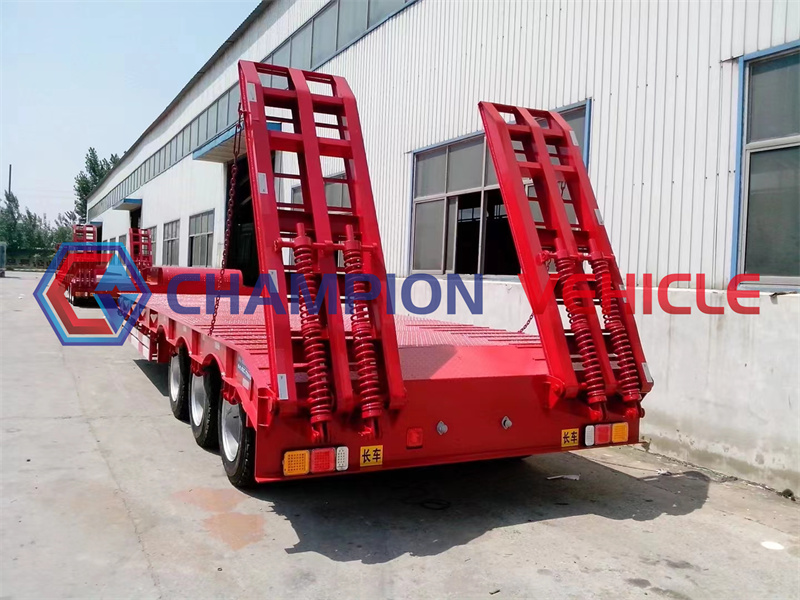

Loading Ramps | with one 650mm width,2500mm length ramp, spring type. |
King Pin | 2" (50#) high tensile steel bolted type |
Landing Leg | 28T capacity |
Suspension | Heavy Duty Under Mount mechanical suspension with 10 leaf spring(90mm width, 16mm thickness). |
Axle | 150x150 Square axle with 16 tons capacity. 3 pieces. |
Tire | 12.00R20 Tire,12pcs, China Famous Brand. |
Rim | 8.5-20, 10 Holes ISO, 12pcs |
Brake System | Dual air brake system, WABCO relay emergency valve. |
Brake Chamber | Type 30/30 on the rear two axles, Type 30 on front axle. |
Electrical System | 24 volt lighting system with modular wiring harness, 7 way ISO receptacle in front of the front bolster, norms NO.1185, Chinese standard. |
Twist Lock | 12 units, ISO Standard. |
Spare Tire Carrier | Equipped two sets per trailer |
Spare Tire | 1 unit |
Side Guard | Standard |
Tool Box | 1 unit, 1m long. |
Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
Painting | Sandblasted, anti-rust chassis surface with 1 layer of anti-corrosive primer and 2 layers of top coats |
