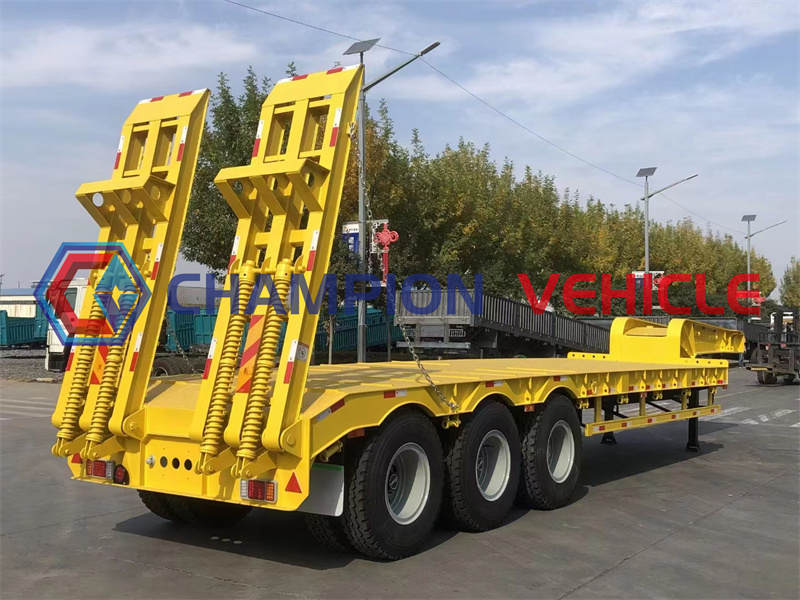

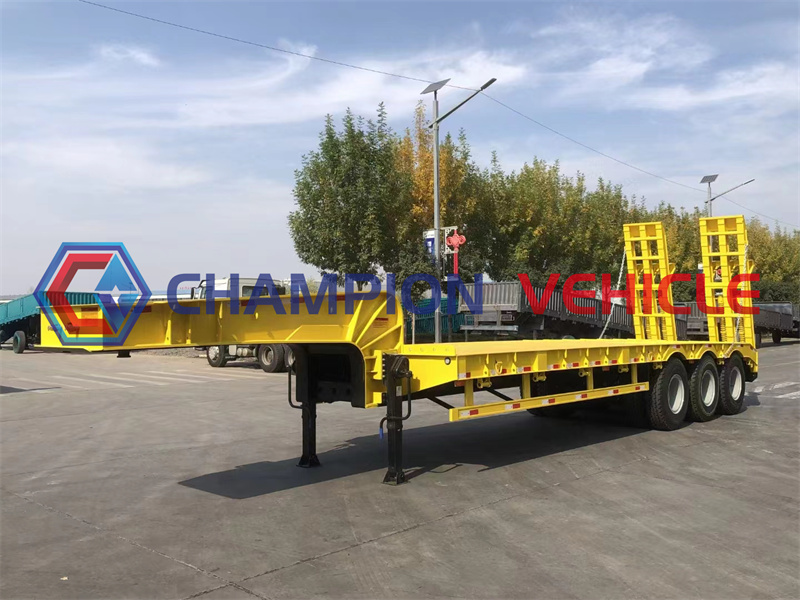

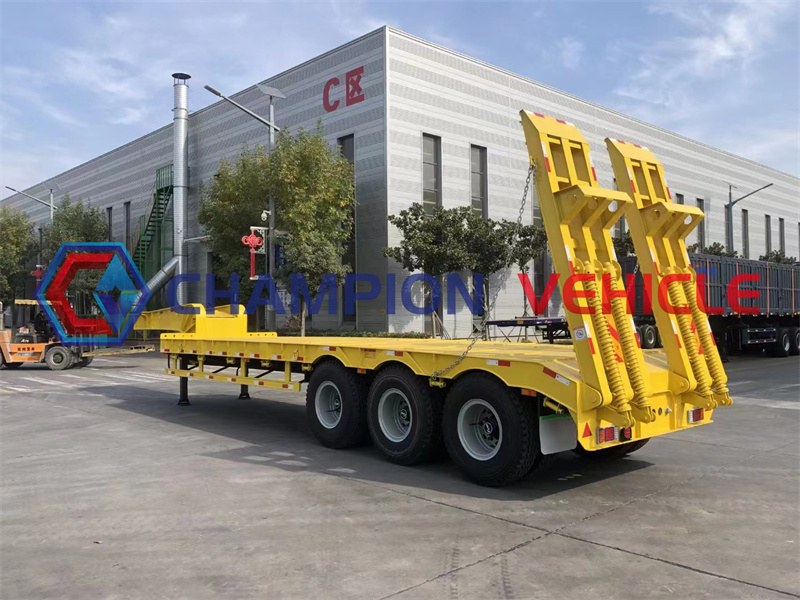

13M 60T 3 Axle Lowbed Semi Trailer

Dimension

Length: Approx 13,000mm

Width: Approx 3,000mm

Height: Approx 3,400mm

King Pin Location: Approx 560mm from the front face of the front bolster

Unladen platform length: Approx 8,765mm

Unladen platform height: Approx 1225mm

Axle spacer: Approx 8,480mm + 1,310mm+ 1,310mm

King Pin Height: Approx 1,300mm with the chassis level

(The above dimension will be adjusted according to the tractor specification. )

Weight

Tare Weight (Tolerance 0~-4%): Approx 11,000 kg

Max. Payload: Approx 60,000 kg

Gross Vehicle Weight: Approx 71,000 kg

Steel Structure

Material: High strength low alloy steel with (Q345) 350 MPa yield strength is used for

welded I-beam and (Q235) 235 MPa yield strength is used for the fabricated parts .

platform: 4mm thickness checked steel floor.

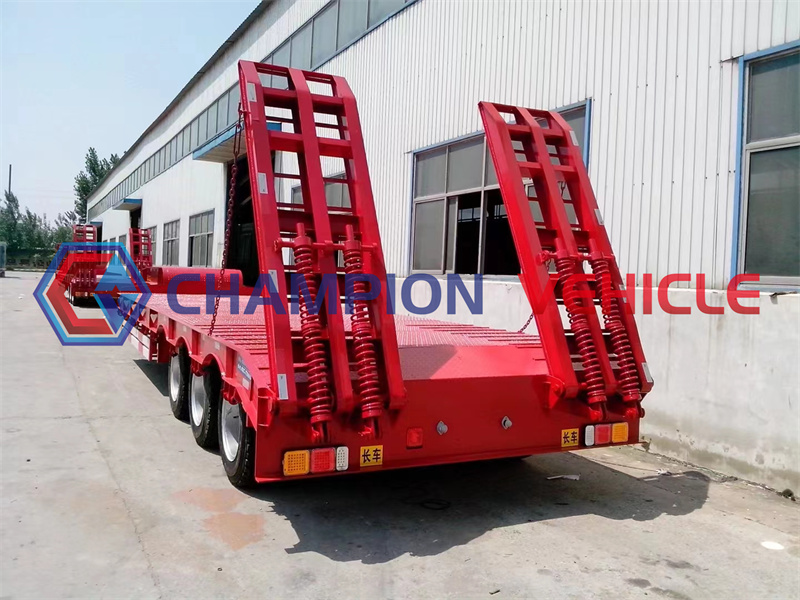

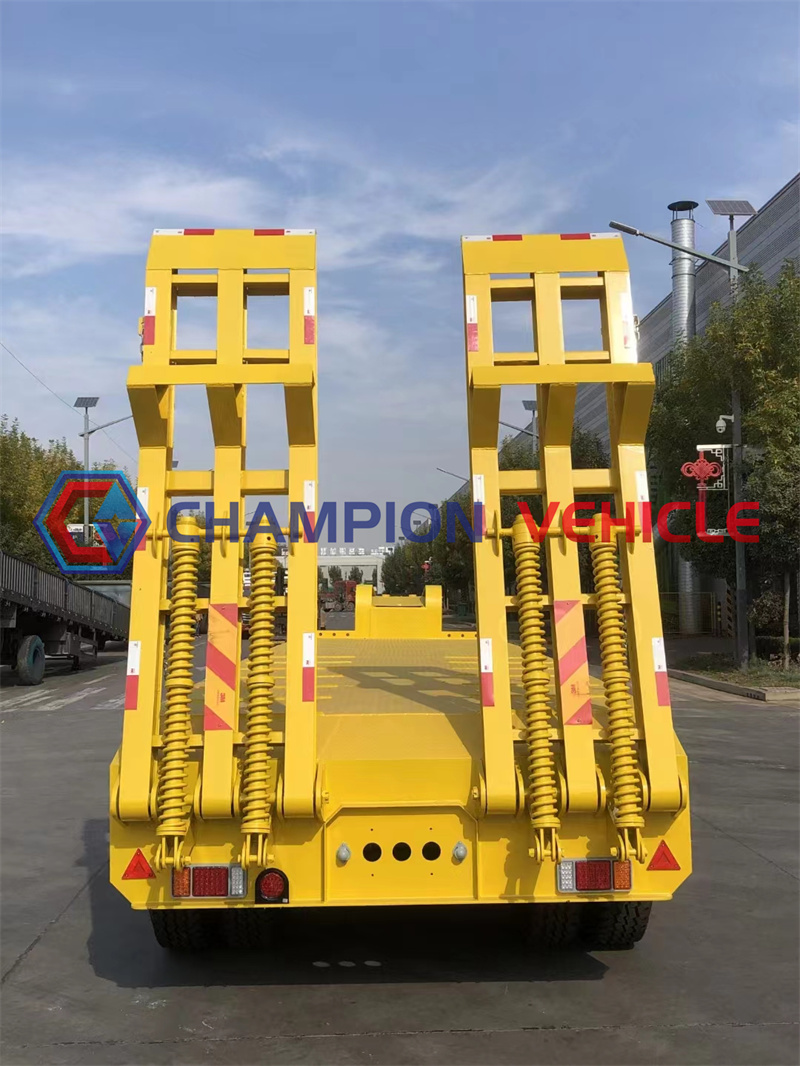

Loading Ramps: with one 650mm width,2500mm length ramp, spring type.

OEM Parts Configuration

King Pin: 2” or 3.5”  bolting king pin. Brand: JOST.

Landing Gear: 2 speed road side winding with sand shoe, Type: GOLDEN STONE. Static Lifting capacity 80T.

Suspension: Reinforced Heavy Duty Under Mount mechanical suspension with 8 leaf spring(90mm width, 16mm thickness).

Axles: 3 axles，Fuwa 13 tons capacity.

Rims: 8.25-22.5, 10 Holes ISO,13 pieces

Tires: 11R22.5, 13pieces, Chinese famous brand , choose by the factory.

Brake System: Dual air brake system, WABCO relay emergency valve, with ABS system.

Brake chamber: Type 30/30 on the rear two axles, Type 30 on the front axle.

Electrical System: 24 volt lighting system with modular wiring harness,7 way ISO receptacle infront of the front bolster.

Chinese standard . No E-mark and SAE certificate.

Others

Spare Tire Carrier: Equipped two sets per chassis without the spare tire.

Side Guard:Standard

Tool Box: Equipped one set

Painting: colored by customer’s request
