| Quantity: | |
|---|---|

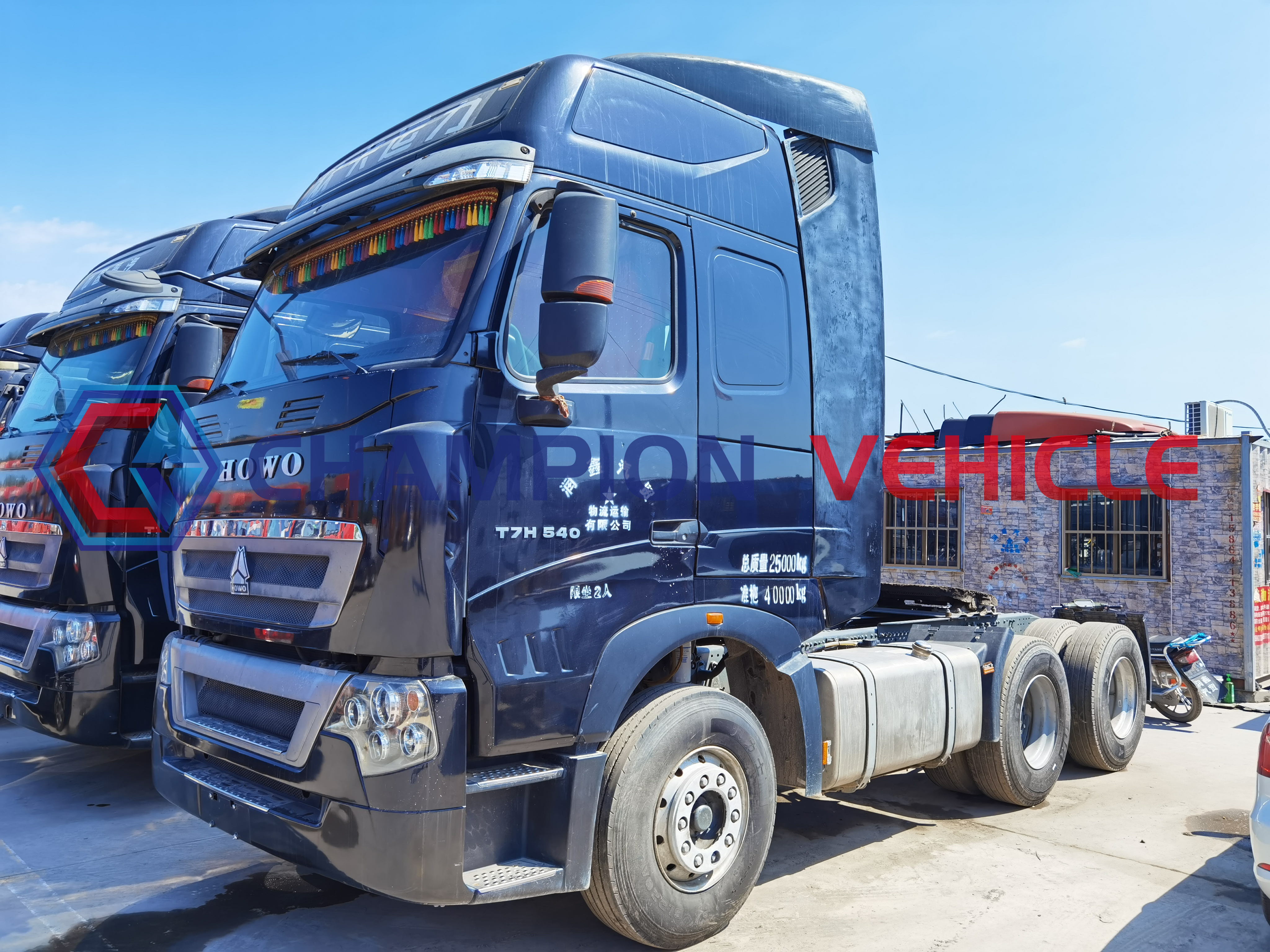

Chassis Model | ZZ4257V3247N1B |
Driving Type | LHD or RHD |

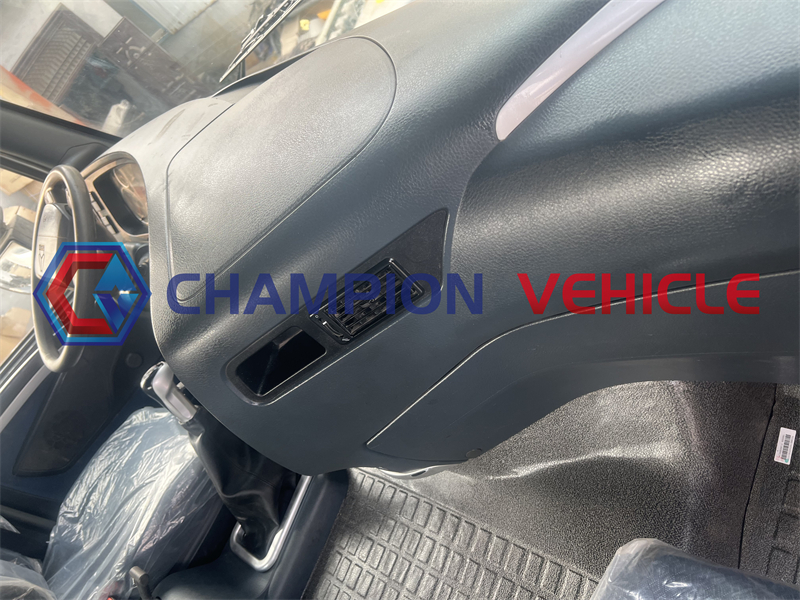

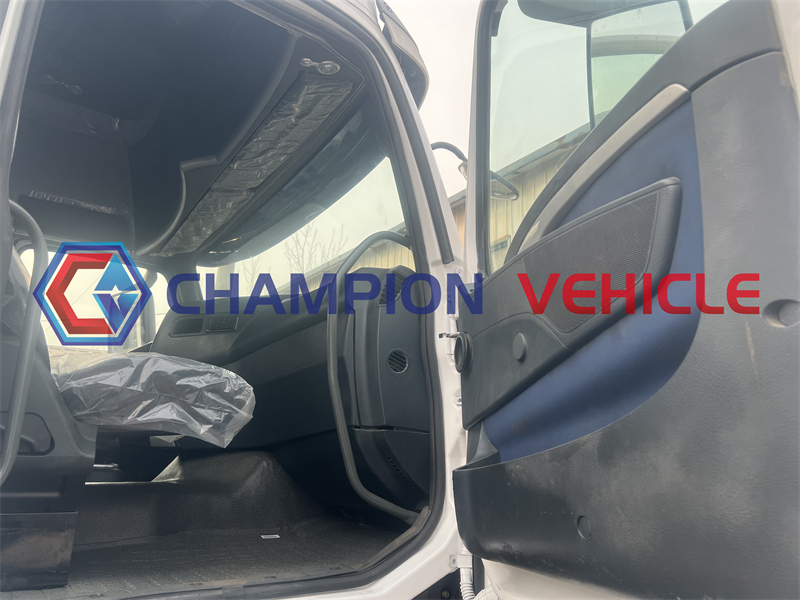

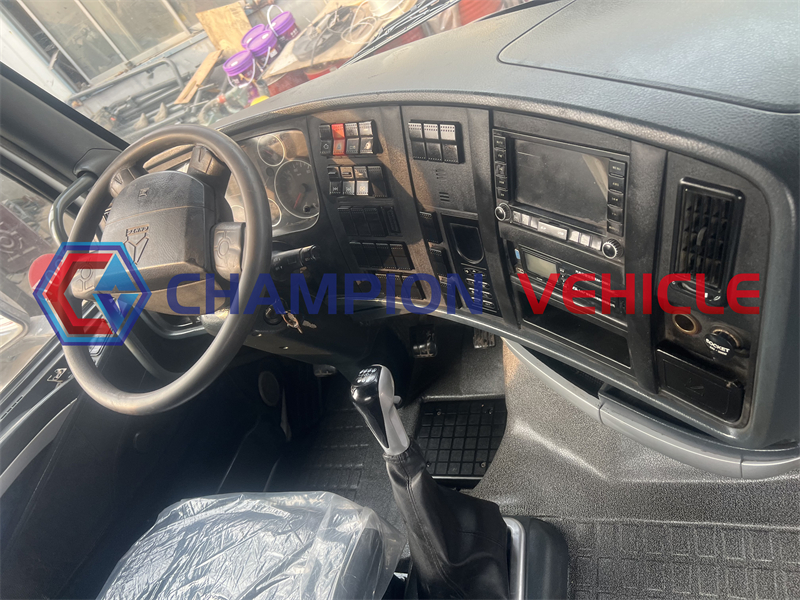

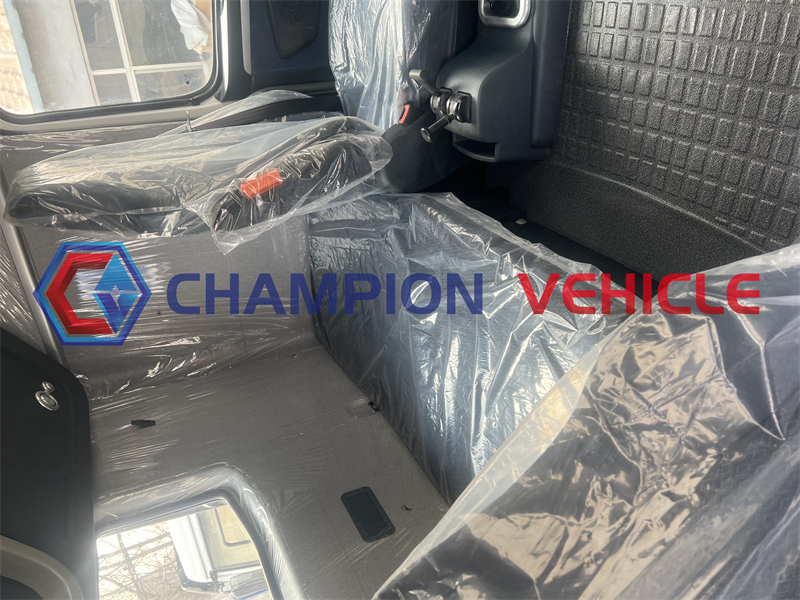

Cabin | A7-G, with two sleepers and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber |
Engine | Make: SINOTRUK |
Diesel 4-stroke direct injection diesel engine | |
Engine model: D12.42, Euro 2, 420 HP | |
6-cylinder in-line with water cooling, turbo-charging and inter cooling | |
Displacement: 11.596 L | |
Transmission | HW19712, 12F & 2R |
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) | |
Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance; |
Front Axle | HF9, 1x9000 KGS |
Steering with double T-cross section beam | |
Rear Axle | HC16, 2x16000 KGS |
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. | |
Ratio:4.42 | |
Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
Chassis | Frame: U profile parallel ladder frame with section of 300x80x8mm,reinforced sub frame all cold riveted cross members |
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer | |
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer | |
Brake | Service brake: dual circuit compressed air brake |
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |
Auxiliary brake: engine exhaust brake | |
Electrics | Operating voltage: 24 V, negative grounded |
Starter: 24 V, 5.4 Kw | |
Alternator: 3-phase, 28 V, 1500 W | |
Batteries: 2 x 12 V, 165 Ah | |
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
Tyre | 315/80R22.5, one spare tyre |
Fuel Tank | 400L |
Fifth Wheel | 90# |
Overall Dimension | 7000*2550*3850mm |
