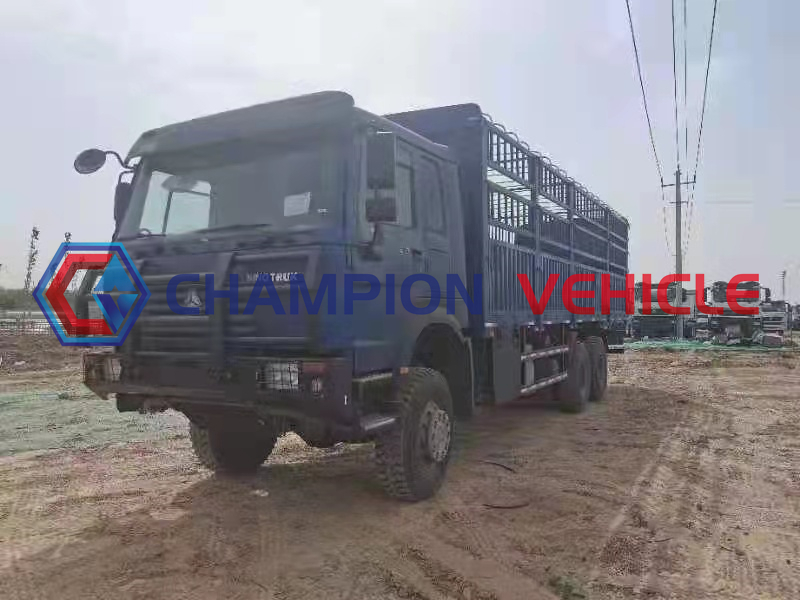

Used HOWO 6*4 Cargo Truck

Cabin:HW76cabin with one sleeper and A/C
Engine:WD615.47,371HP, EURO II
Transmission:HW19710,10 Forward,2 reserves
Front axle:HF9
Rear axle:HC16
Tire:Used Tire 12.00R20, new tire 12R22.5
Steering system: Germany ZF
Oil tanker:300L
Availability:
Quantity:

Applications:

Factory Supply top quality Used HOWO 6x4 Cargo Truck,The truck with 371 HP HOWO powerful engine, and fence carg box, the truck can cope with different working environments, in a variety of harsh environments to play excellent performance , Used HOWO 6x4 Cargo Truck can cope with different working environments, in a variety of harsh roads to play excellent performance.



with

1. 371HP Engine with 100% working condition, we have open&check and use new 4 engine supportings (Cylinder liner, piston, piston ring, piston pin)

2. Gear box, in perfect condition.

3. Rear axle is big axle model: HC16,

4. New Cargo Box: 7650x2300x1000,bottom 3mm side 1.5mm

, with outside and inside new painting(other supplier no inside painting), and water proof work(other supplier no have this).

5. Inter cooling system has been deeply cleaned so that there will no over high

temperature of the engine.

6. New Tubeless Tires for hot working condition(Need extra 1100USD) .

7. New head light and all lights, also we give 2 LED head lights for free(other supplier no have this).

8. Electrical system all checked.

9. New Painting. Guarantee 2 years(other supplier no have this).

10. New Cab Interior, new cover, new seat, new bed, new floor

11. New Machine Oil

12. New Machine Oil Filter

13. New Diesel Filter

14. New Air Filter

15. CLUTCH DISC AND CLUTCH PRESSURE PLATE IS BRAND NEW ALSO.


Specification Sheet:

MODEL

ZZ1257N4641W

ENGINE

Manufacturer: SINOTRUK


· Diesel:4-stroke 4 direct injection diesel engine



Engine model: WD615.69, Euro II emission standard, water-cooled, four strokes, 6 cylinders in line with water cooling. Turbocharged and intercooling, directly injection


Max output:336HP(247kw)


Displacement :9.726L

CLUTCH

Single-plate dry coil-spring clutch. hydraulically operating with air assistance

TRANSIMISSION

·


Model: HW19710, synchromesh, 10forward & 2 reverse

FRONT AXLE

HF9 drum



REAR AXLE

HC16,16Ton*2

CHASSIS

Frame: U-profile parallel ladder frame with section of 300x80x8mm, all cold riveted cross membersu
Front suspension: 9semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 12 leaf semi-elliptic spring with width of 90mm and bogie springs, stabilizer
Aluminum fuel tank: 400L capacity, with lock in fuel cap, fitted to the off side of the chassis.

STEERING

Germany ZF Power steering , hydraulic steering with power assistance

BRAKING SYSTEM


service brake: dual circuit compressed air brake
Parking brake(emergency brake):spring energy, compressed air operating on rear wheels

TIRES

Tires:315/80R22.5 with one spare tire

CARGO BODY

7650x2300x1000,bottom 3mm side 1.5mm

CAB

HW 76 Standard cab with one sleeper and A/C, all steel forward control, 55°hydraulically tilt able to the front, 2-arm windscreen wiper system with three speeds, laminated windscreen with casted-in ratio aerial, hydraulically damped adjustable drivers ‘seat and rigid adjustable co-driver's seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts, adjustable steering wheel, air horn, air conditioner and double bunks, with 4-point support fully floating suspension shock absorbers with transverse stabilizer.

Dimension

10350×2496×3450(mm)

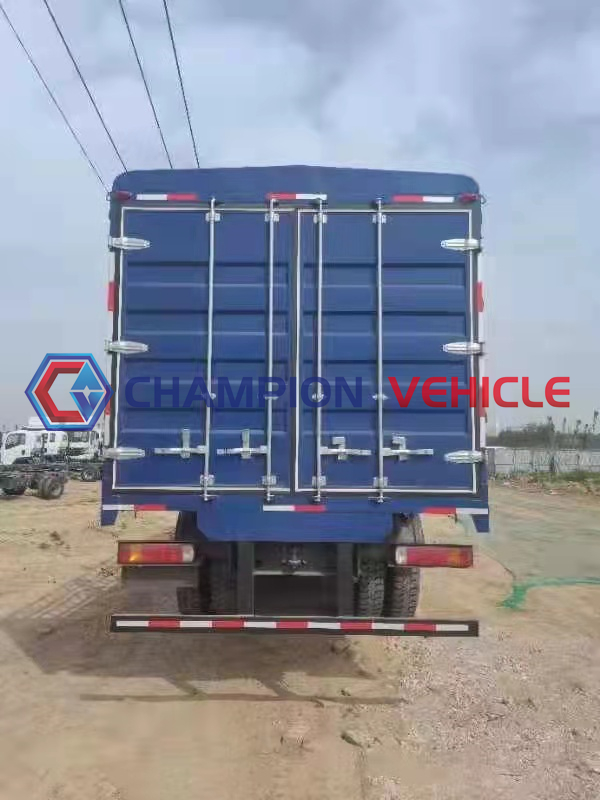

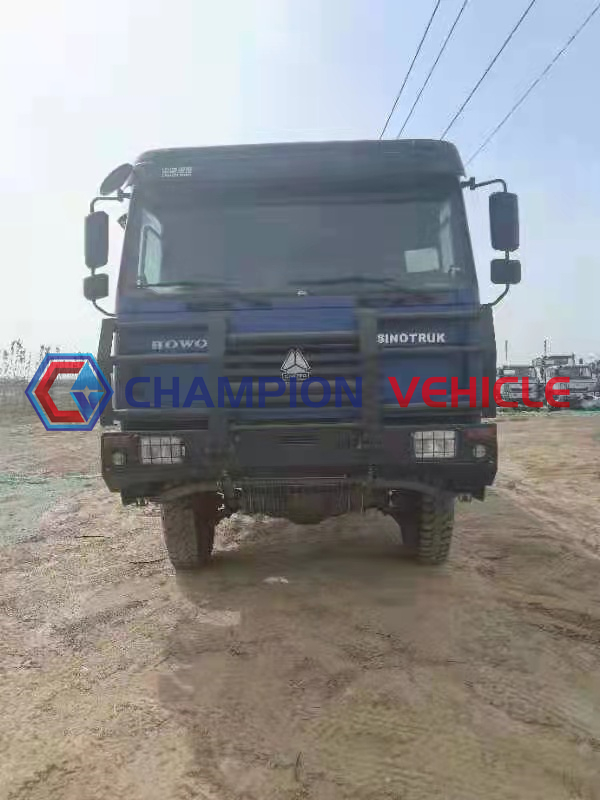

a94df1b2a158f9f528d165622bb6a2092fc50b5042f30eb33caf26e0f6010edf153aae52ca85e50655f41dad2ed8e5e61a50be8d398296daee5bfbc8fe9b30bad21da5629cf5e1f2c3b6429fad430d2d288c5cb54fb386cd341985df6b8886dfbd5165f68c235f2b495763a44929545d96e85515e3392161d2c8cc3d

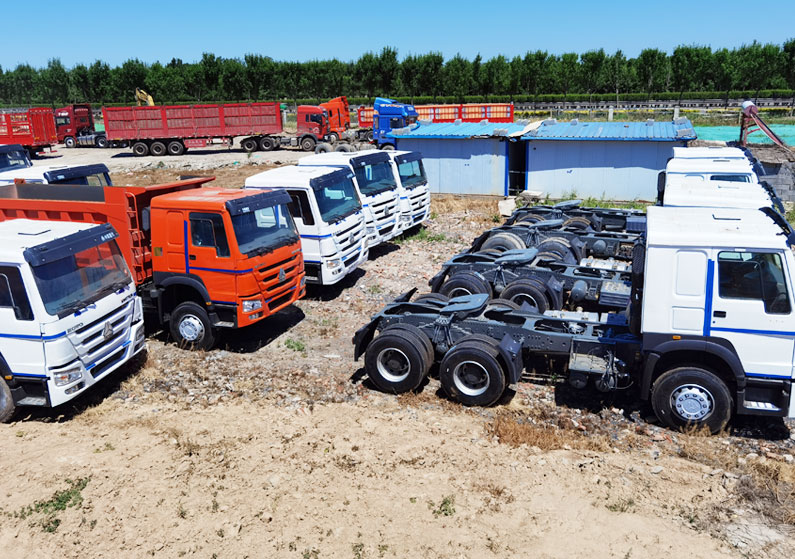

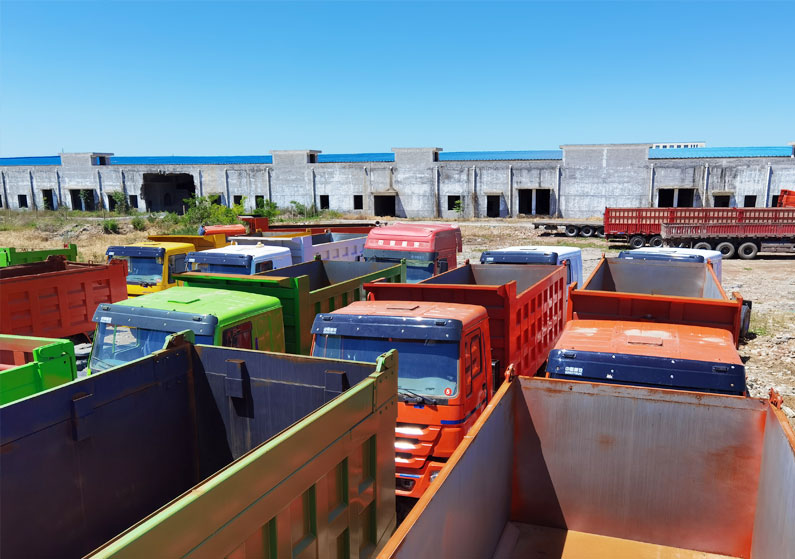

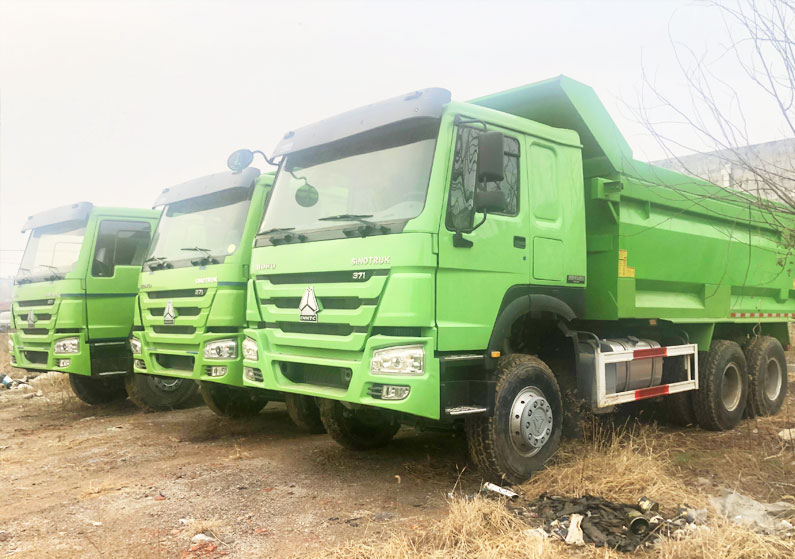

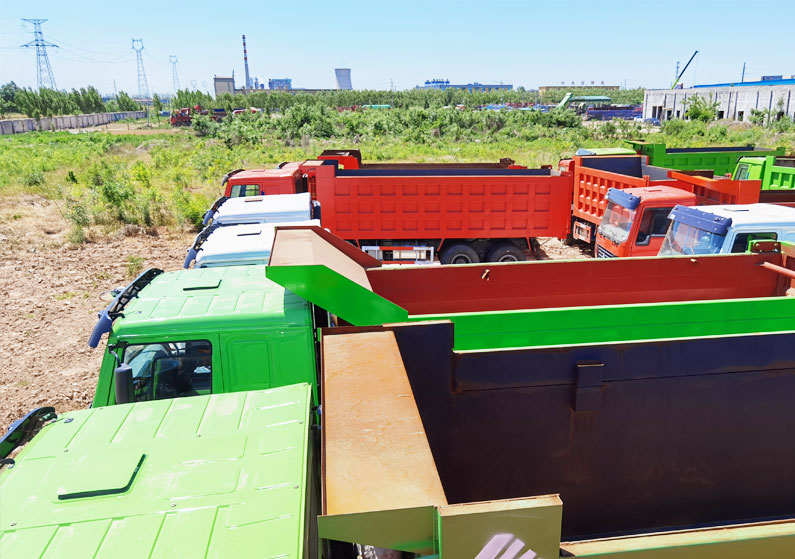

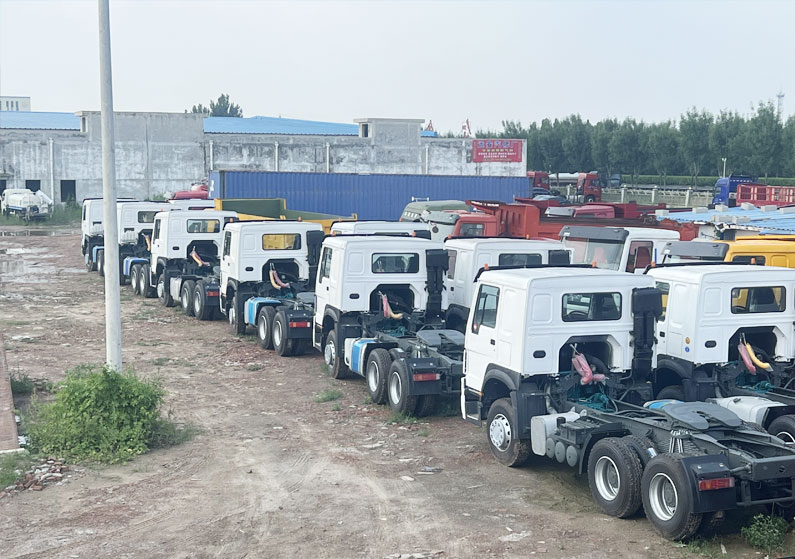

Used-Car-Our-Parking-1


Used-Car-Our-Parking-2


Used-Car-Our-Parking-3


Used-Car-Our-Parking-4


Used-Car-Our-Parking-5


Used-Car-Our-Parking-6

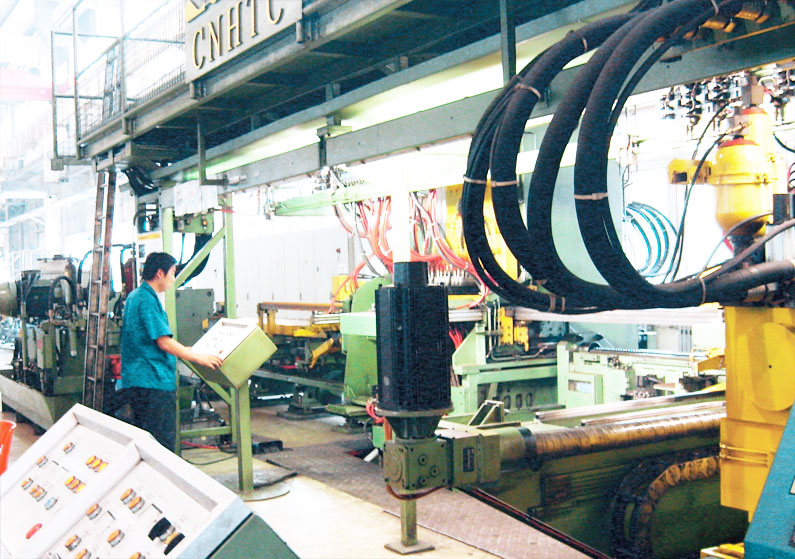

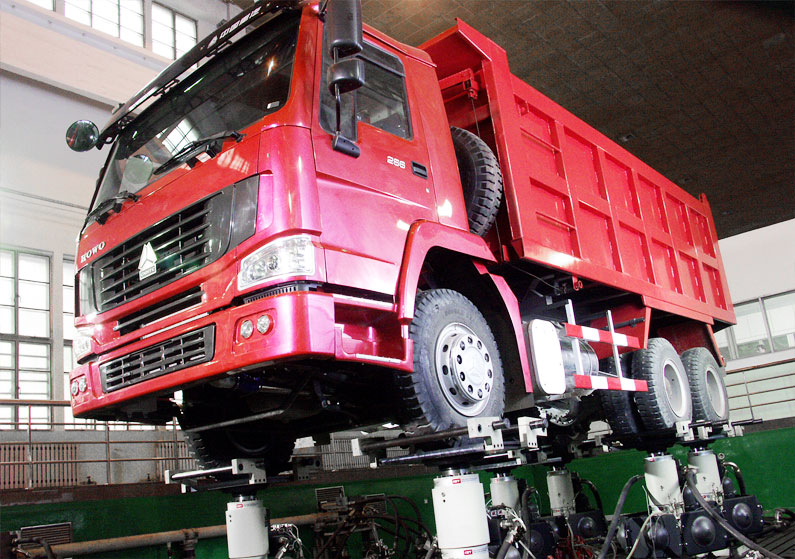

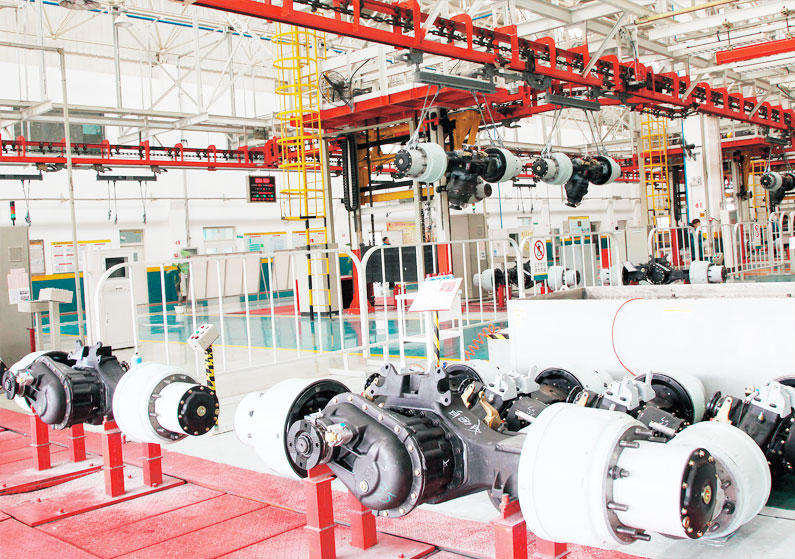

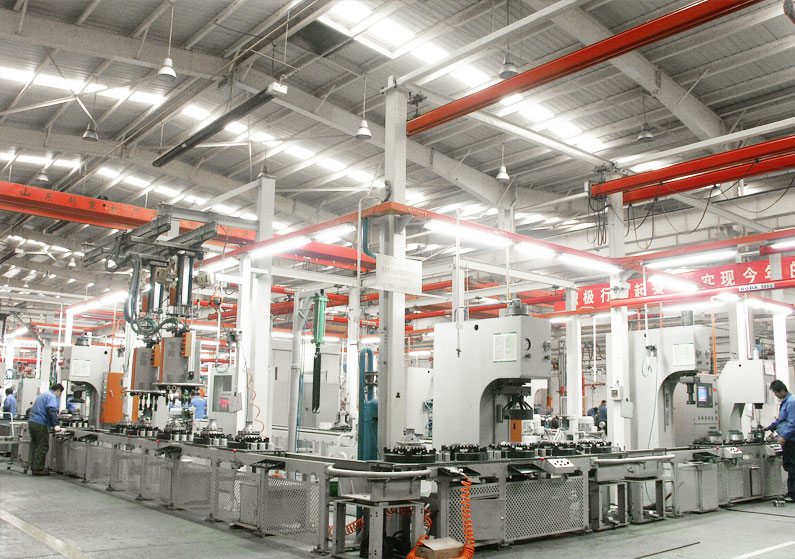

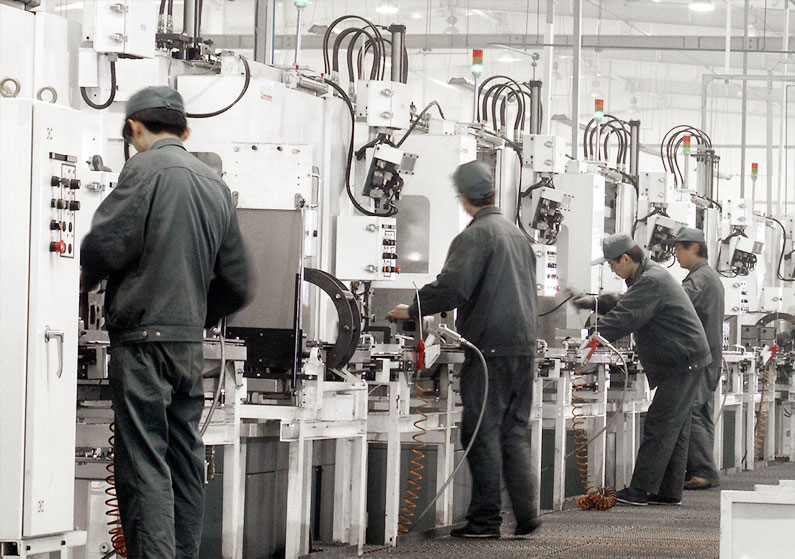

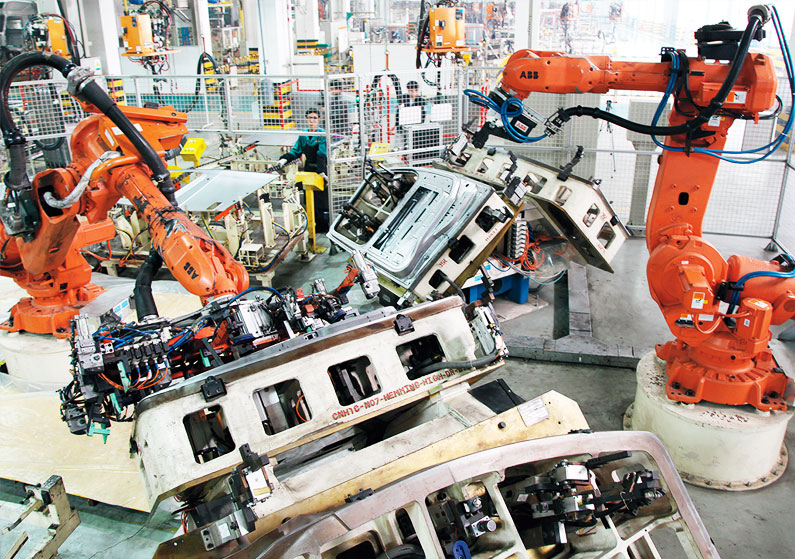

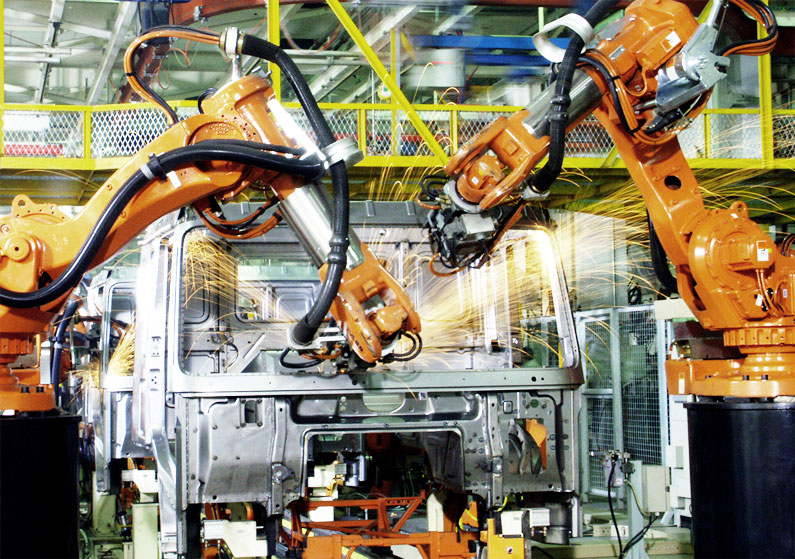

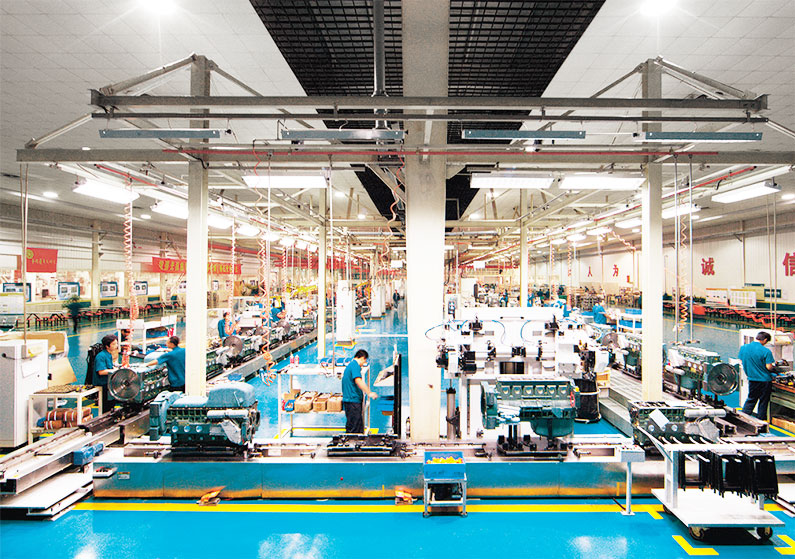

Working-shop-1


Working-shop-2


Working-shop-3


Working-shop-4


Working-shop-5


Working-shop-6


Working-shop-7


Working-shop-8

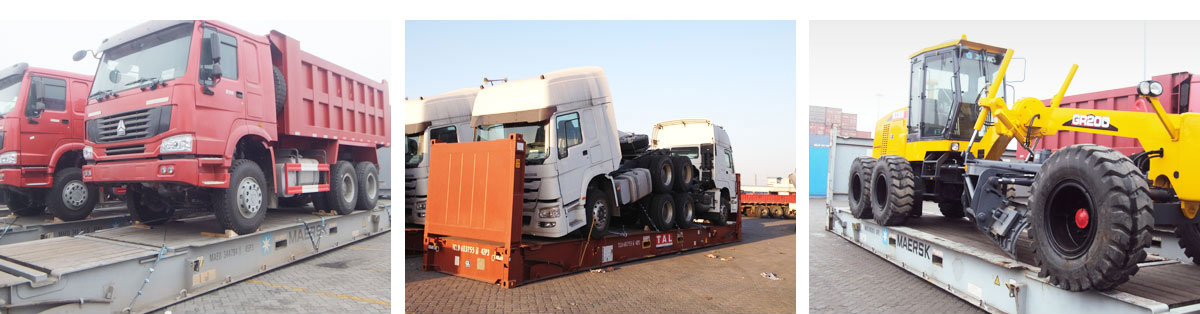

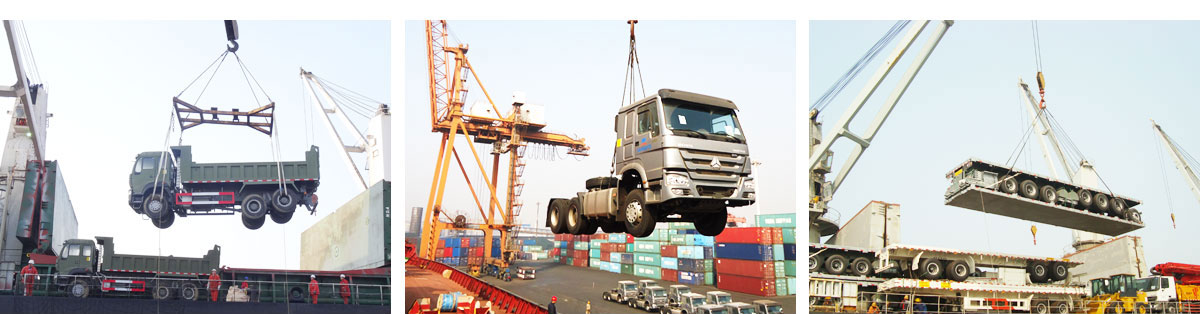

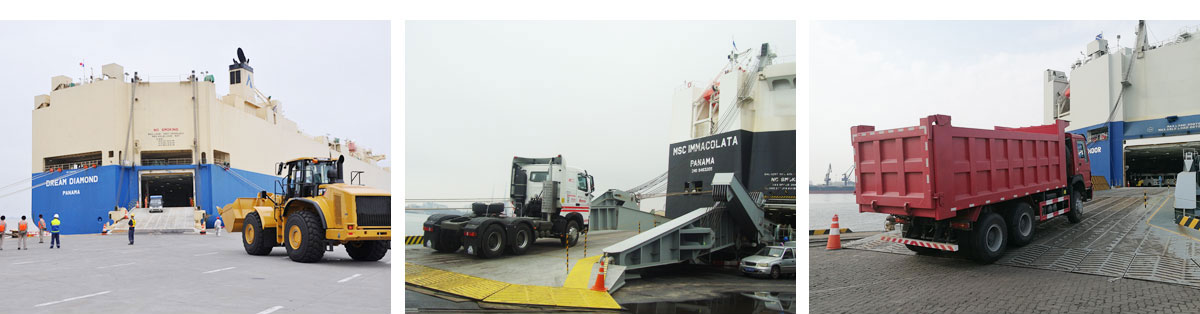

shipping-way-1
