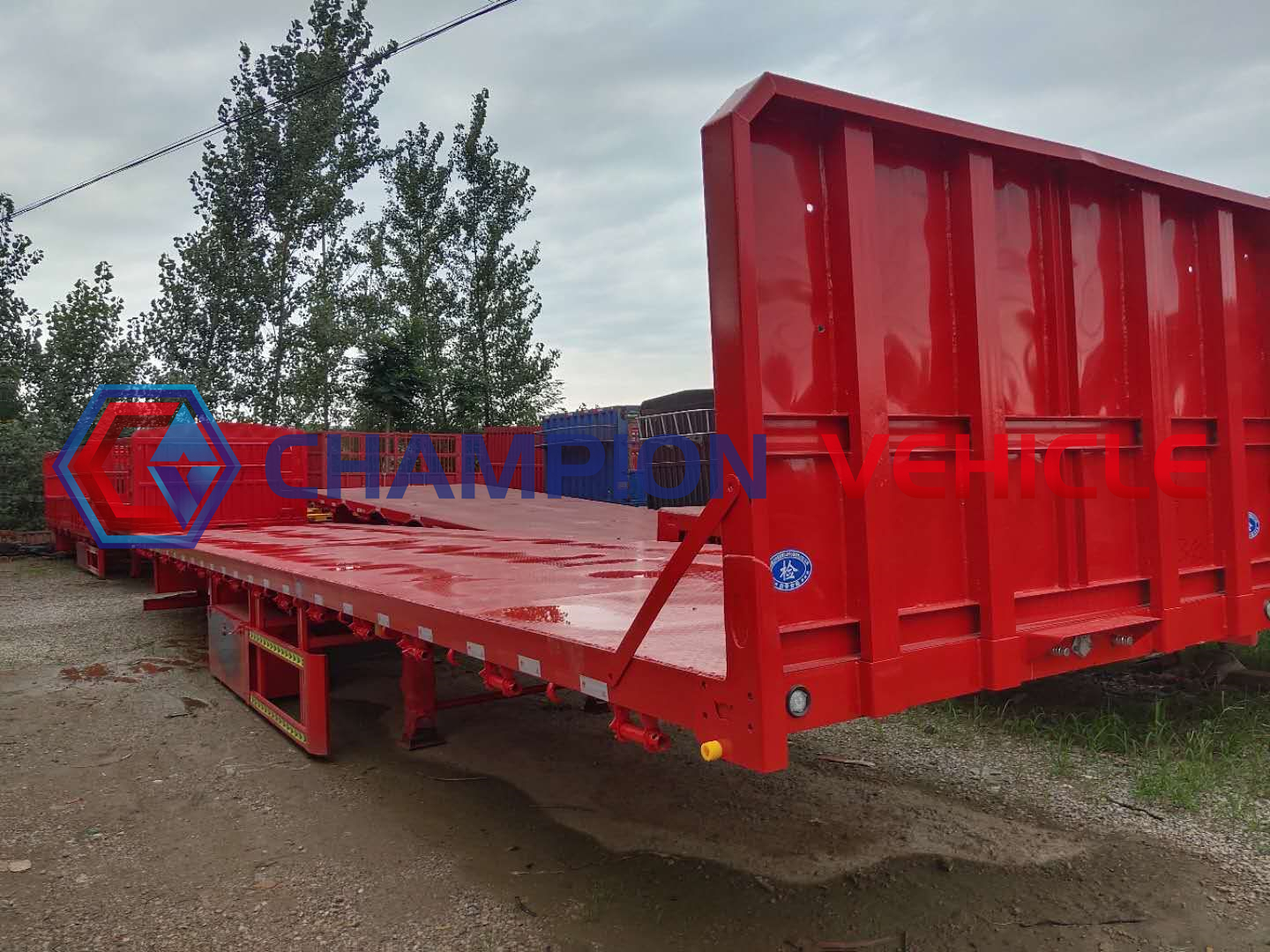

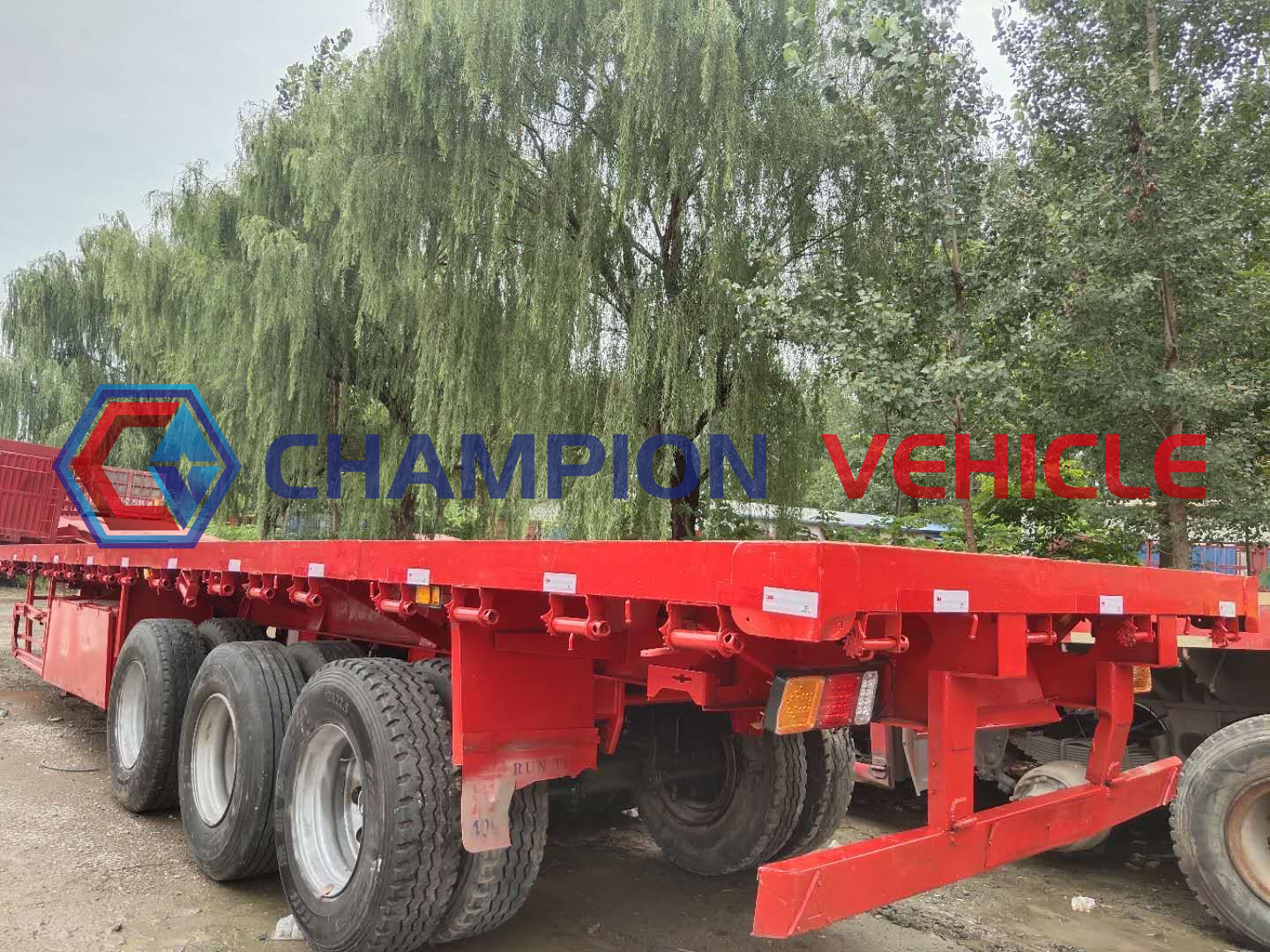

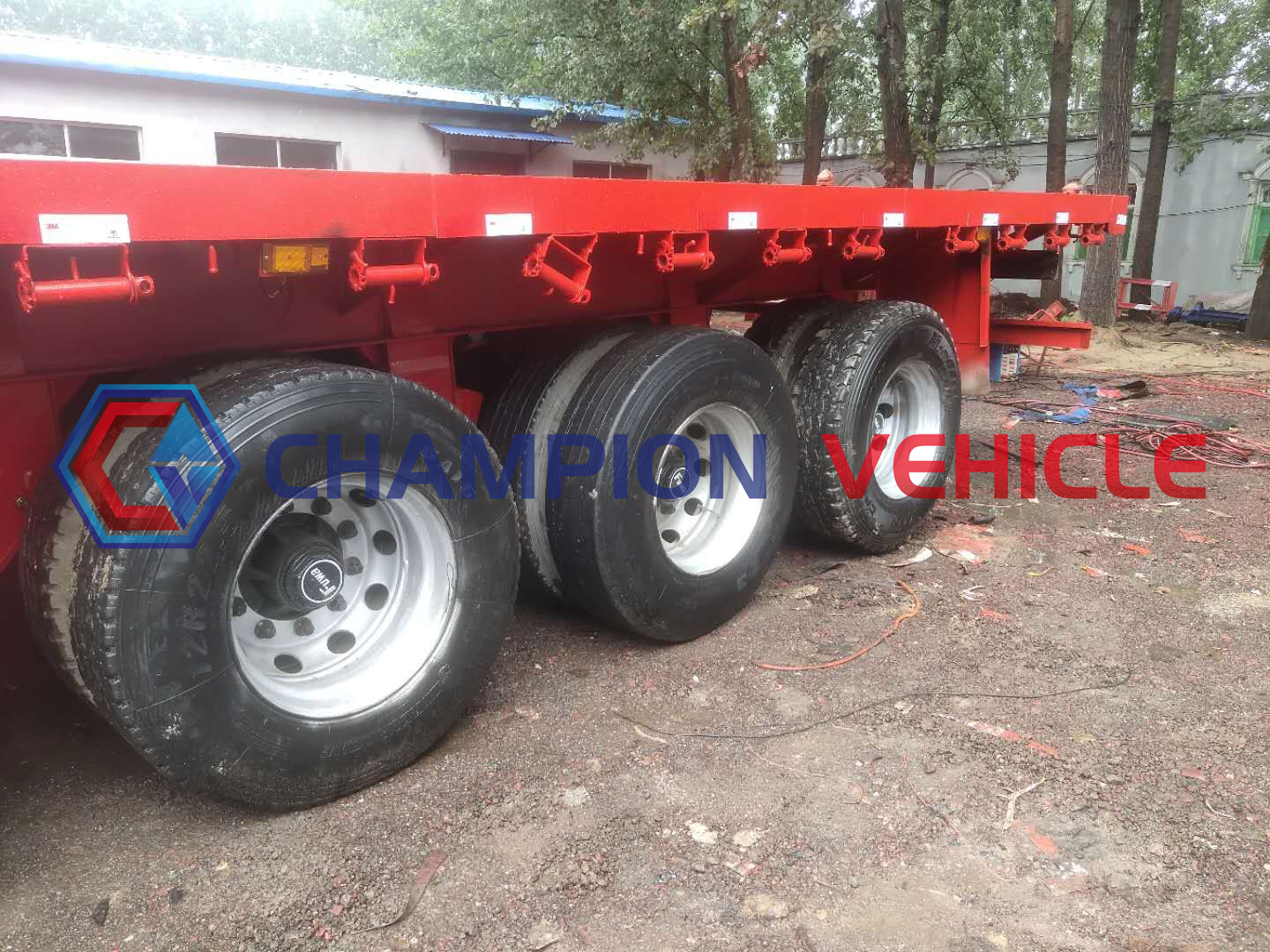

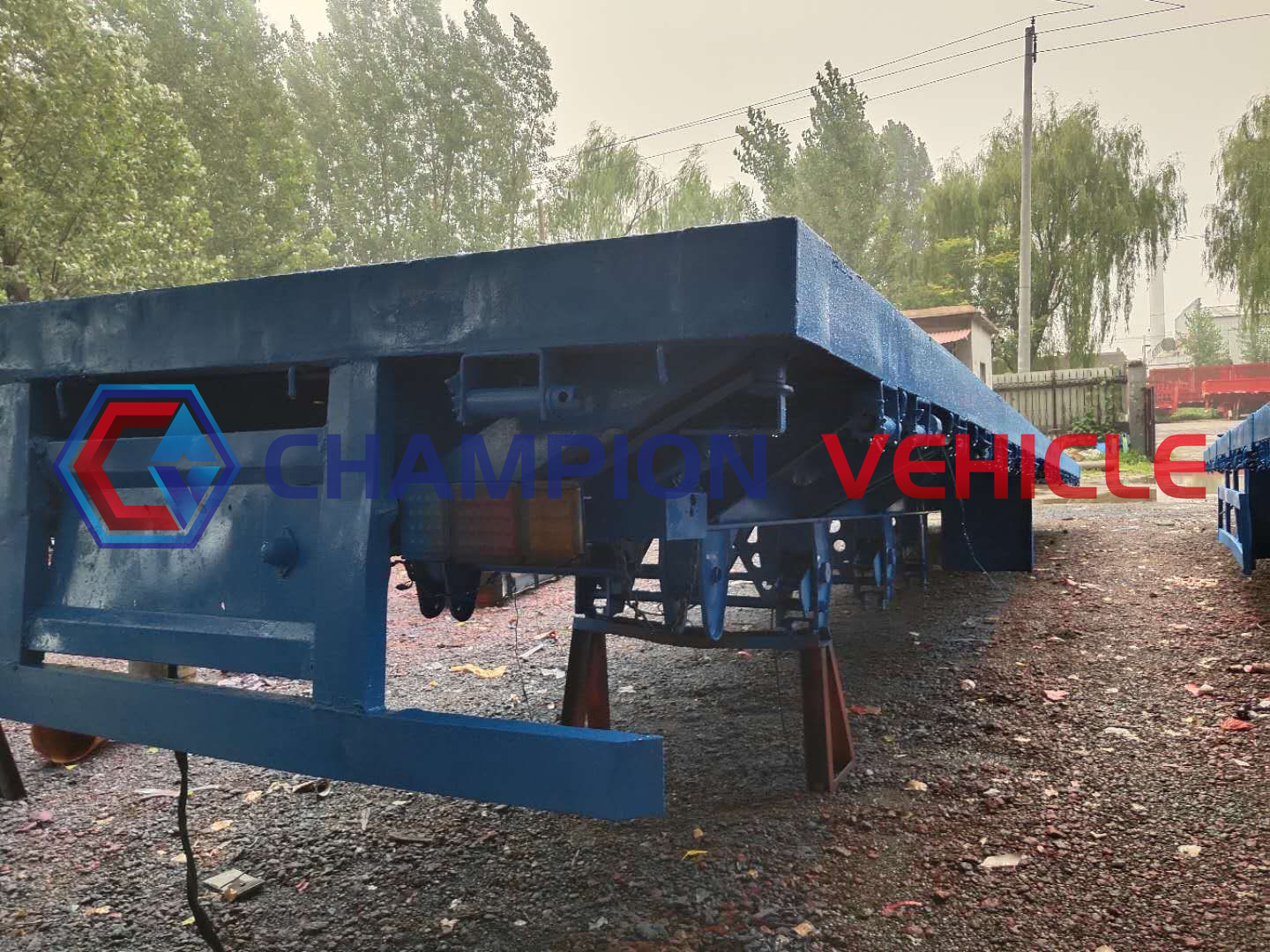

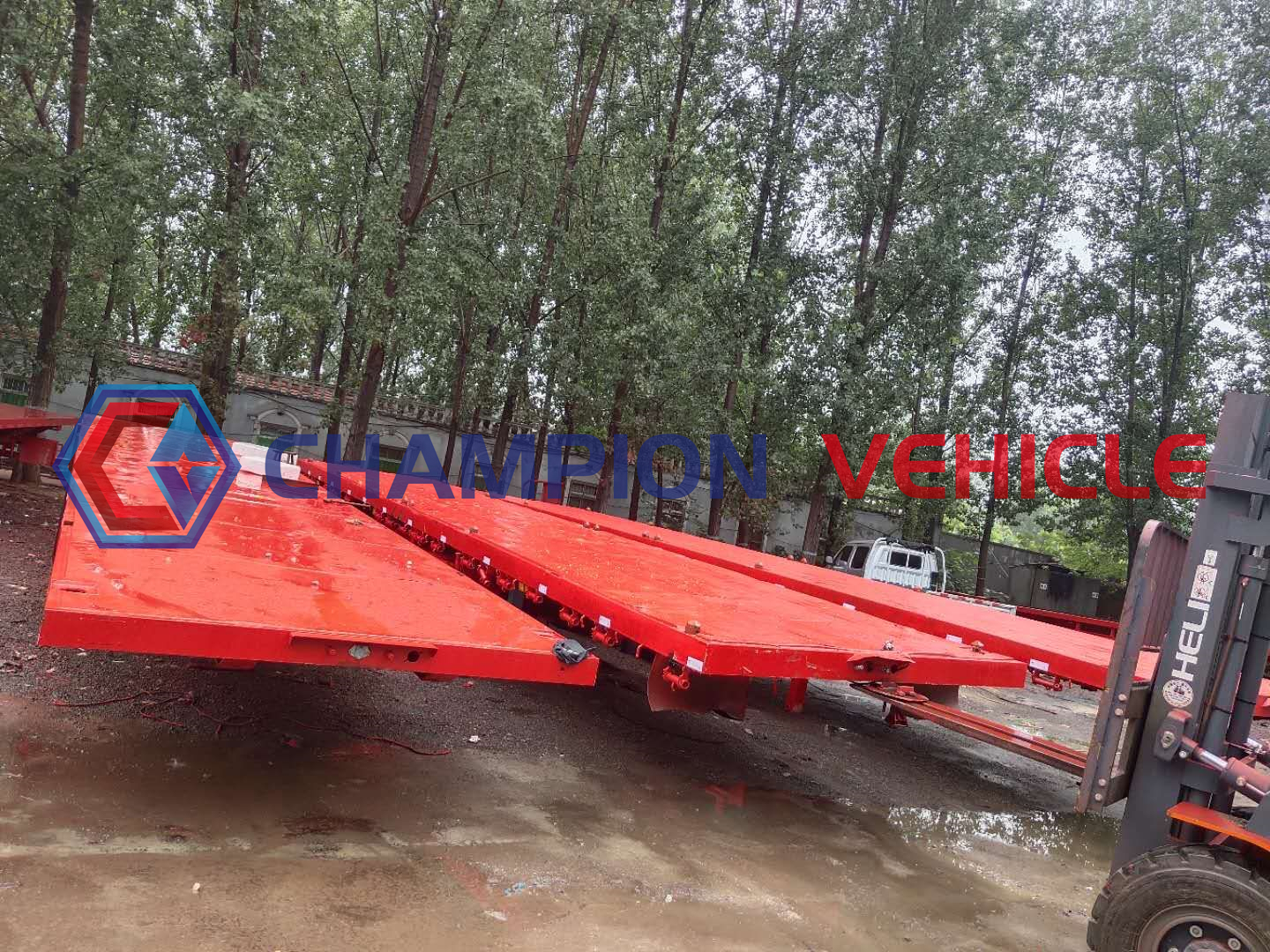

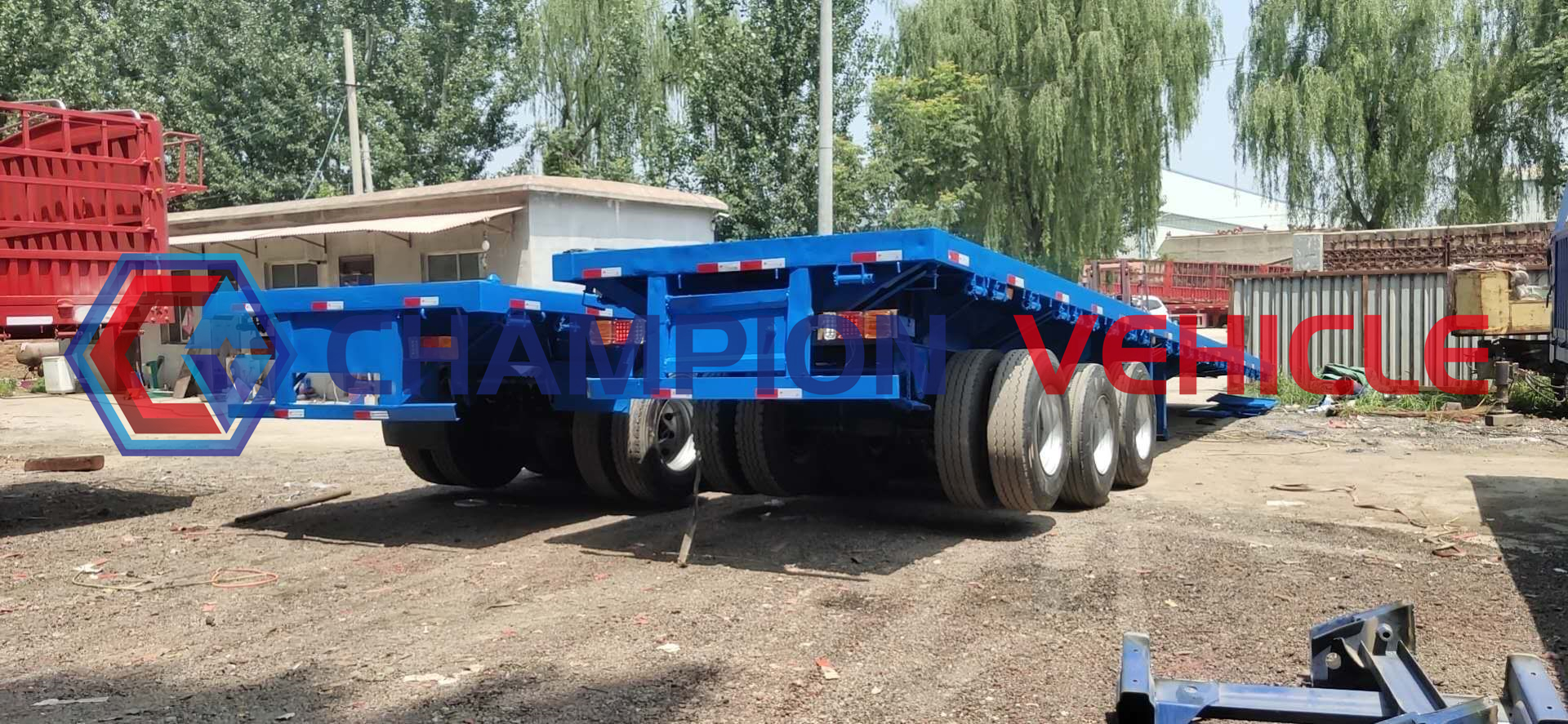

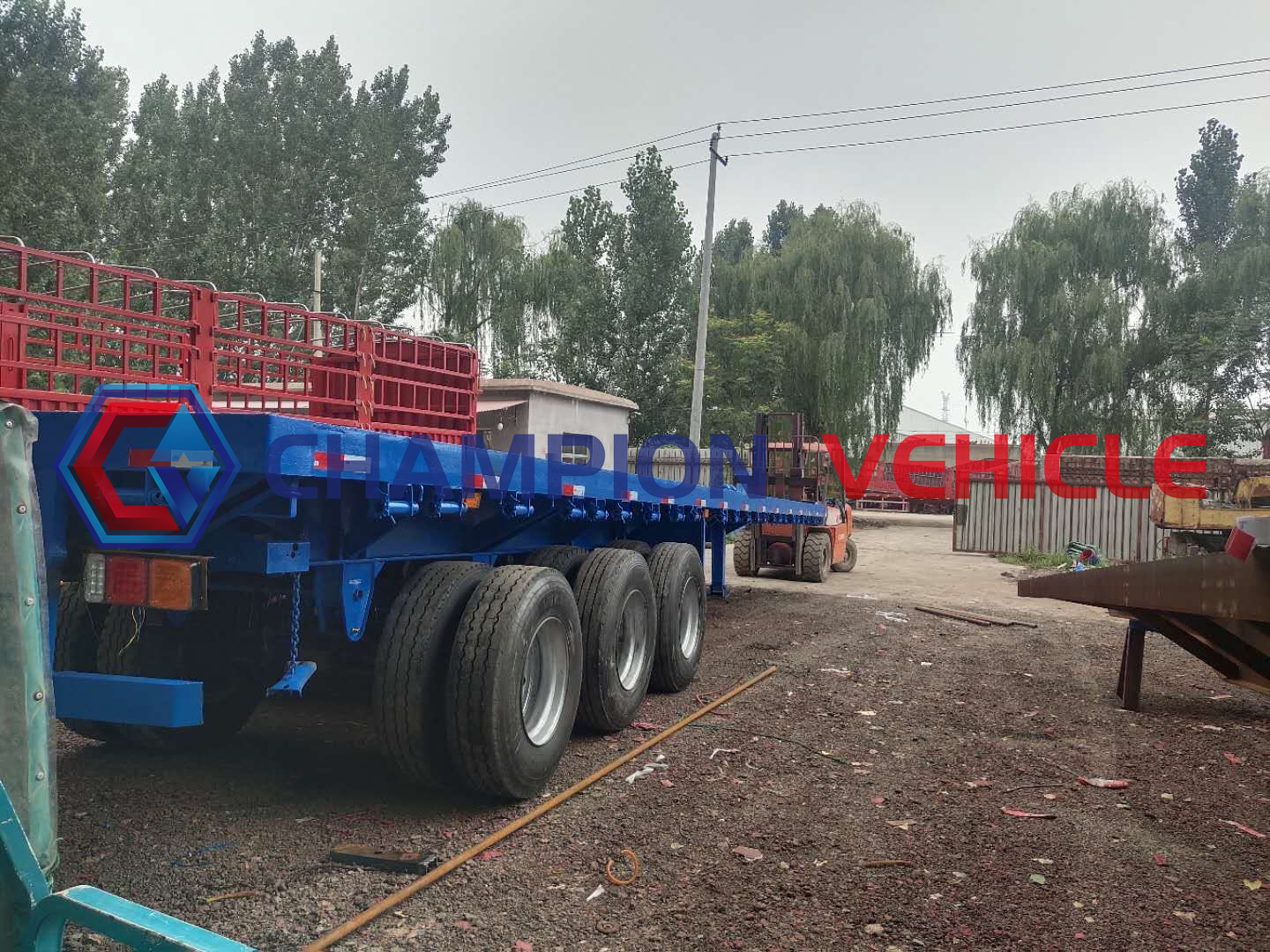

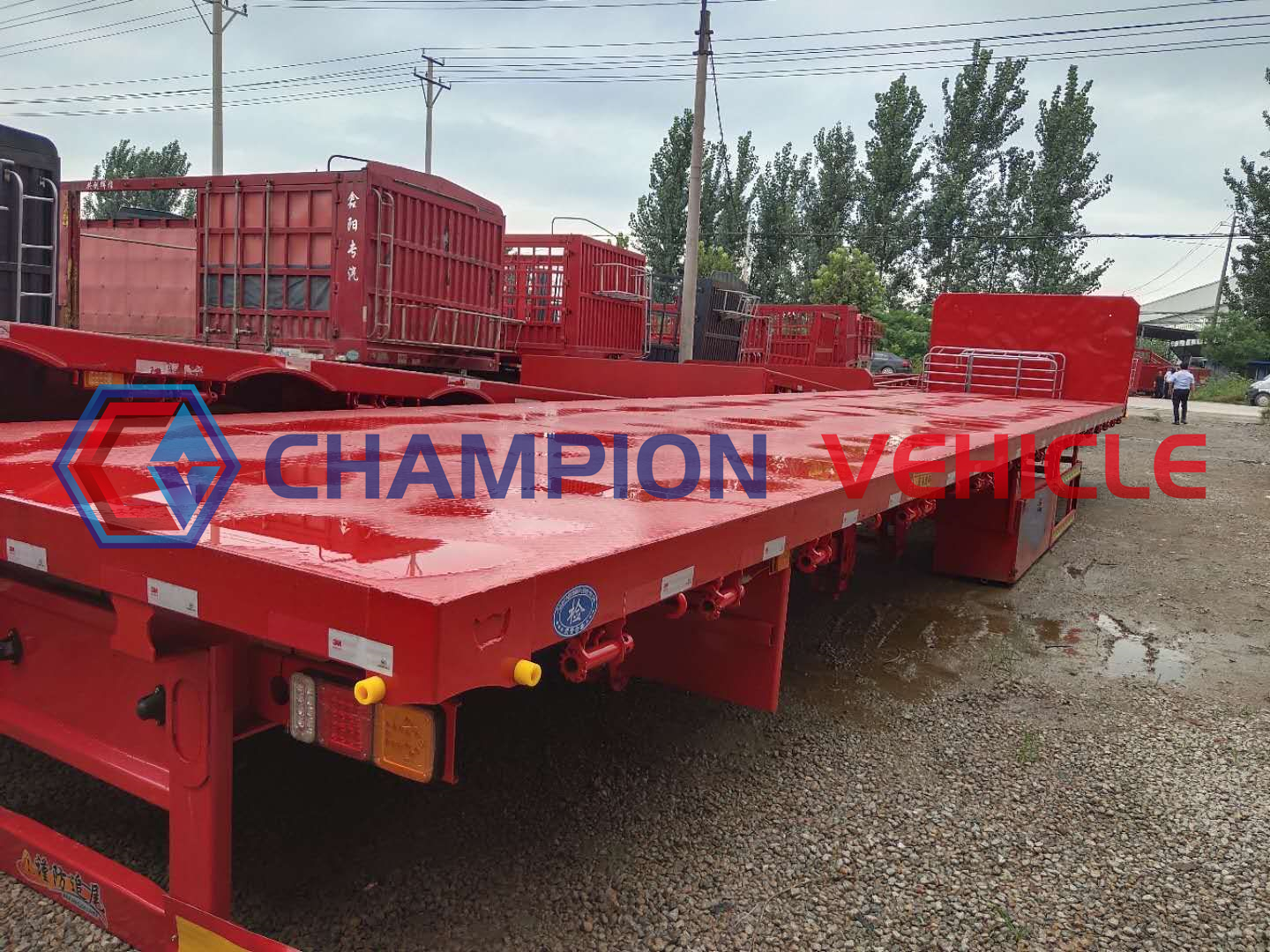

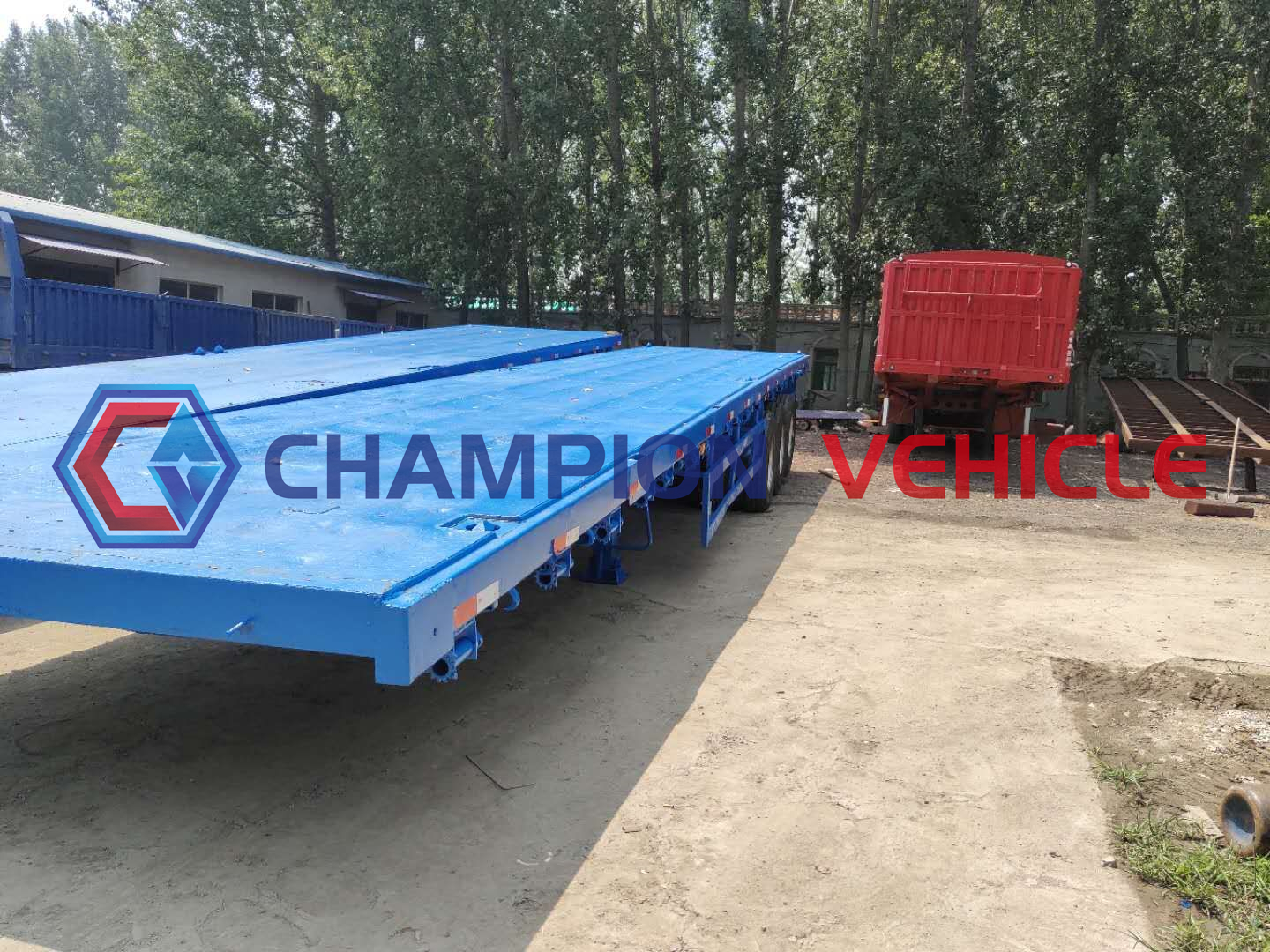

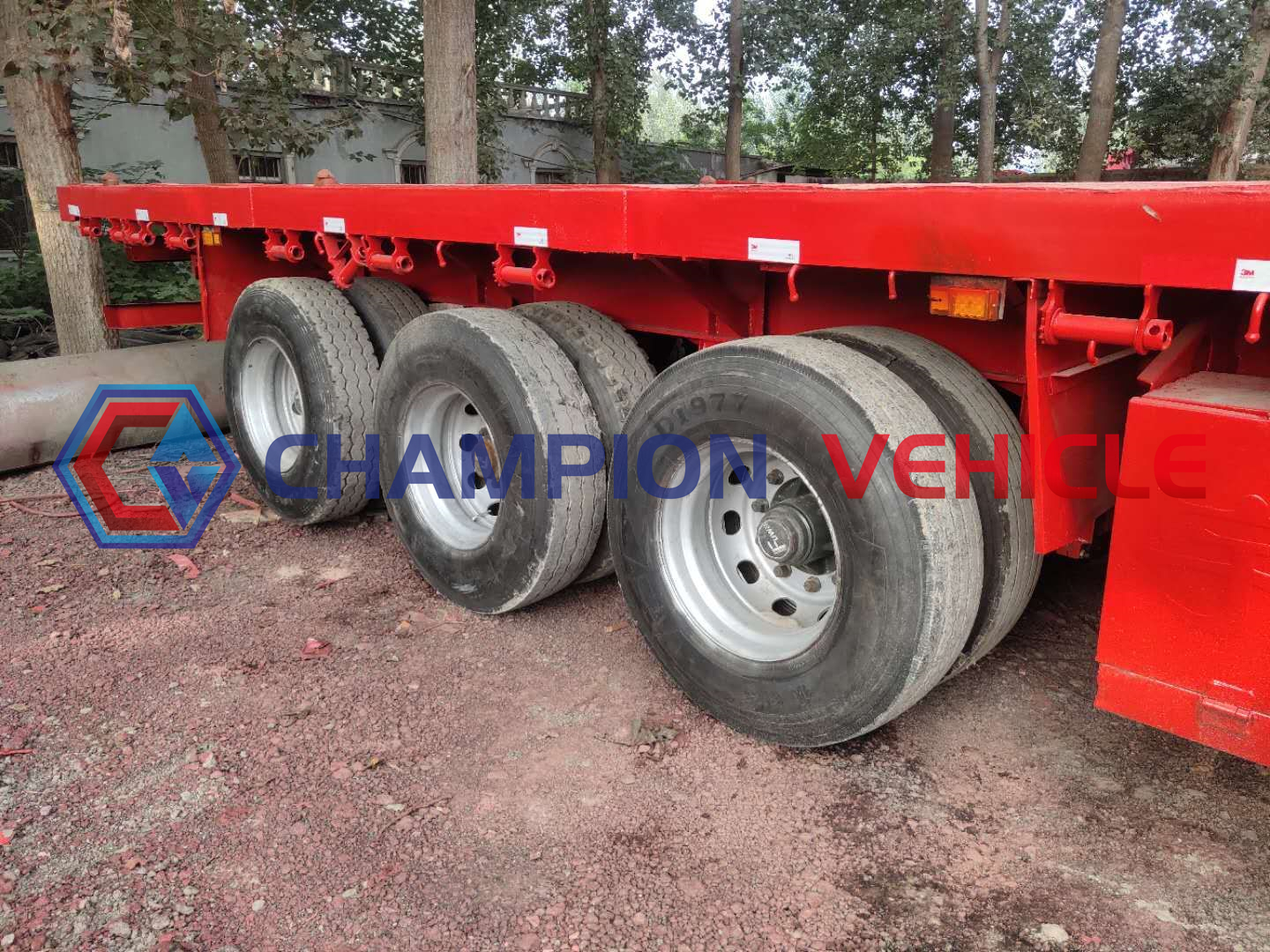

Used 40ft Flatbed Semi Trailer With 3 Axles
Factory Supplier-The quality is controllable.
Real Picture- The quality is appreciable.
OEM Services
- OEM different number of axles.
-OEM different loading weight.
-OEM different length of the trailers bed, such as 45ft,48ft,53ft container transportation trailers
Competitive Price-Save your money but don't compromissing quality.
Best Services and Professional Suggestion.
Flatbed Semi Trailer Specification：
| Parameter | Dimension(mm) | length×width×height:12500×2480×H(The height will be adjusted according to the tractor specification) |
| King Pin Setting(mm) | 1050 | |
| Fifth Wheel Height(mm) | The height will be adjusted according to the tractor specification | |
| Axle Space(mm) | 1310+1310 | |
| Tare Weight(kg) | Approximate 7000 | |
| Payload(ton) | 60 tons | |
| Fabric | Main Beam(mm) | 500,submerged arc welding |
| Flange and Web(mm) | 14/8/16 mm | |
| Side Rail | 160mm high channel steel | |
| Lock | 12 retractable locks | |
| Floor | 3mm checker plate | |
| Hook and Hole | 8 cast steel hooks on each side of the platform, no stick holes | |
| Rope Device | 8 rope device on each side of the platform | |
| Paint | primer + top coat | |
| OEM | Landing Gear | 28T, single side operating |
| Kingpin | 2" or 3.5'' ,exchangeable | |
| Brake System | Dual air brake system,30 type on first axle, 30/30 type on rear 2 axles | |
| ABS | No | |
| Suspension | American type mechanical suspension with 10 leaf spring, 13mm(thickness)*90mm(width). | |
| Axle | High Quality 13T, 3 pcs | |
| Tire | Ling long or ShenPu brand, type: 12R22.5,equip 12 per chassis | |
| Tool Box | one set on right side, 1m steel | |
| Spare Tire Carrier | equipped 2 sets per chassis | |
| Electrical | 24v, LED light, 7-pin ISO socket | |
| Color | By customer's requirement. | |
| Others |
|
