Applications:

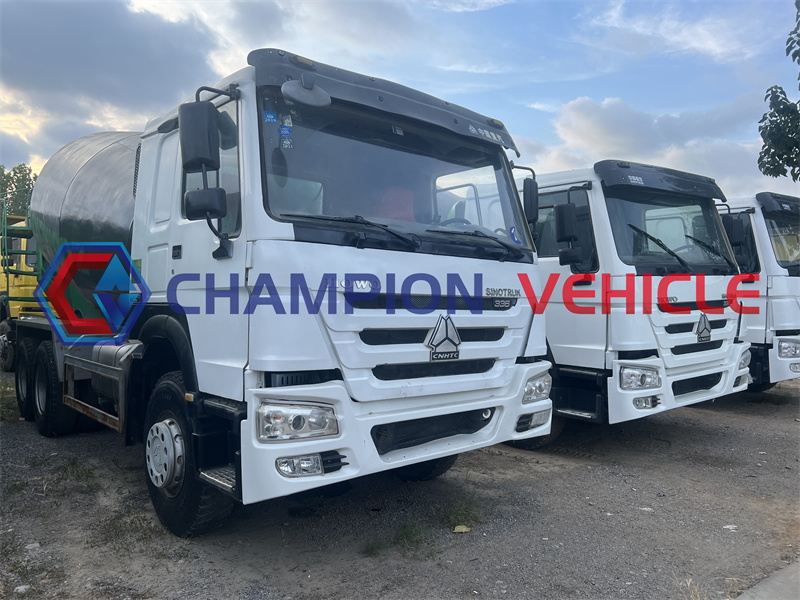

Suitable for urban construction, highway, railway,and other departments. Mixer truck is a perfect solution, modern and no pollution conveying equipment for mixed concrete,is one of indispensable important equipment of the mechanized construction.
Truck Features:
1. 371HP Engine with 100% working condition, we have open&check and use new 4 engine supportings (Cylinder liner, piston, piston ring, piston pin)
2. Gear box, in perfect condition.
3. Rear axle is HC16
4. Chassis Beam: Double Beam, Guarantee no damage.

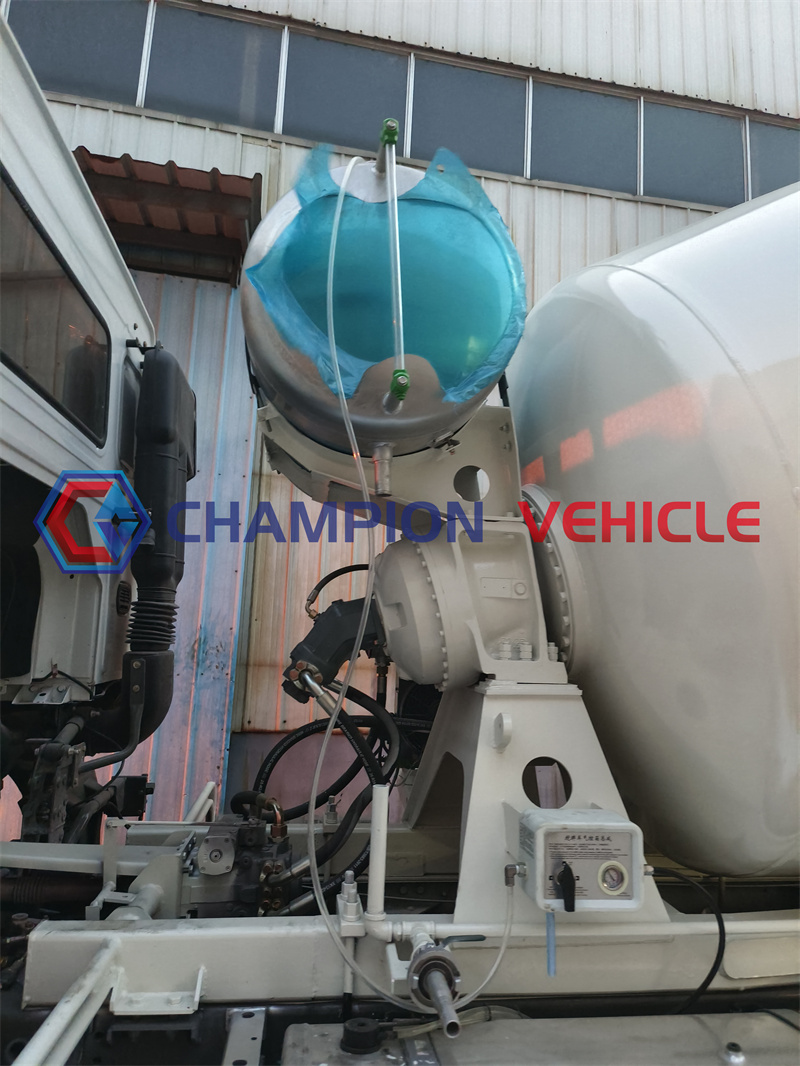

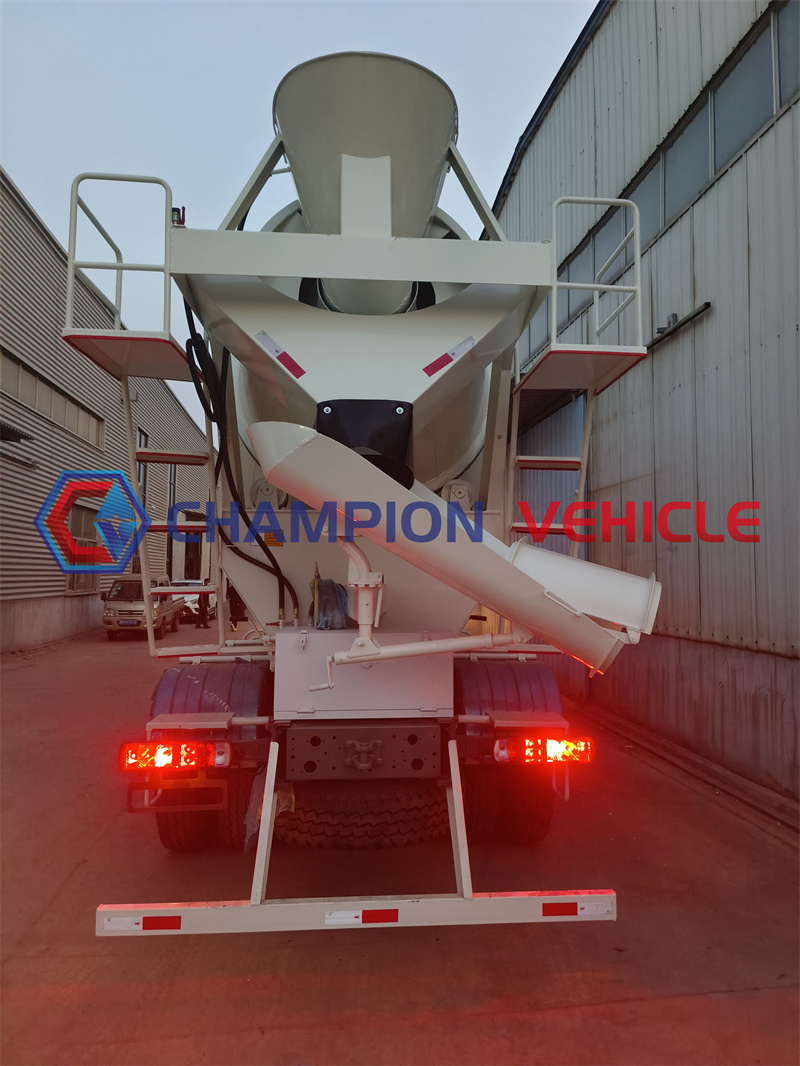

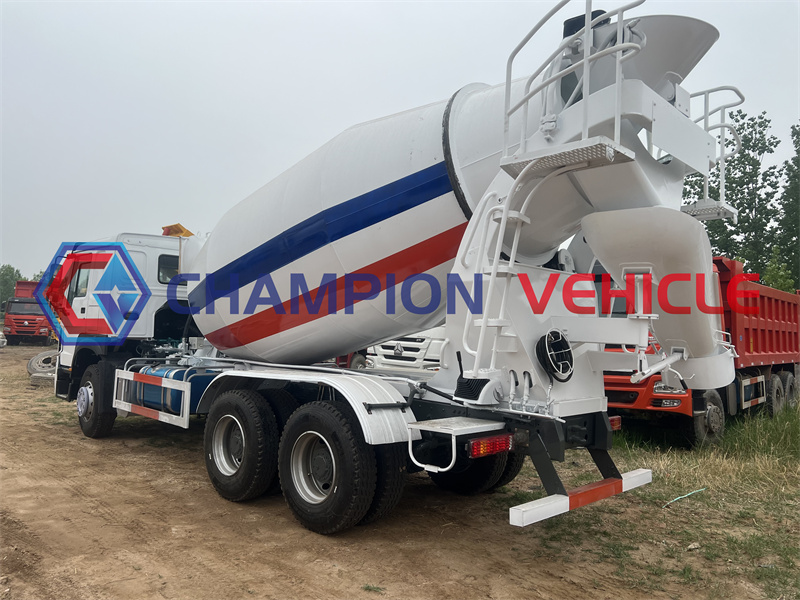

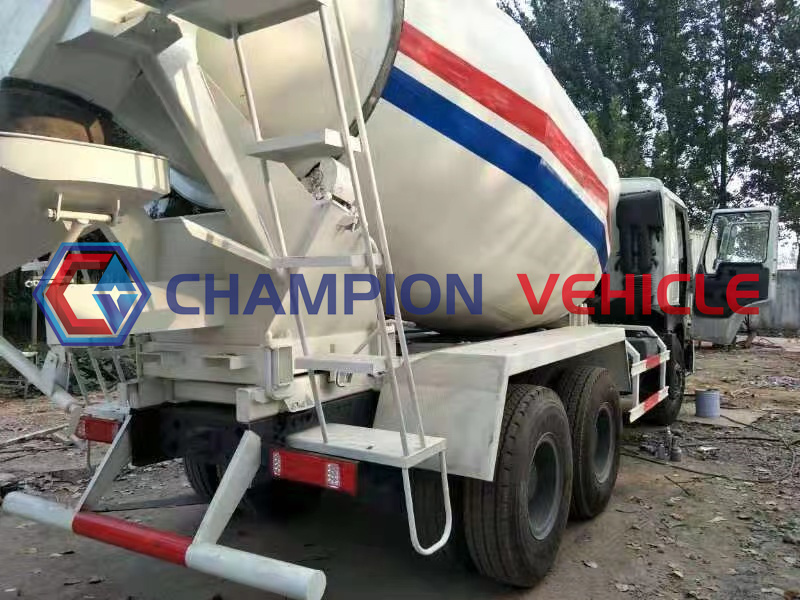

5. Feed hopper, discharge hopper, diversion trough. With new painting, and water proof work(other supplier no have this).
6. Inter cooling system has been deeply cleaned so that there will no over high
temperature of the engine.
7. New Tubeless Tires for hot working condition(Need extra 1100USD) .
8. New head light and all lights, also we give 2 LED head lights for free(other supplier no have this).
9. Electrical system all checked.
10. New Painting. Guarantee 2 years(other supplier no have this).
11. New Cab Interior, new cover, new seat, new bed, new floor
12. New Machine Oil
13. New Machine Oil Filter
14. New Diesel Filter
15. New Air Filter
16. CLUTCH DISC AND CLUTCH PRESSURE PLATE IS BRAND NEW ALSO.
Specification Sheet:
Model | ZZ5257GJBN4041W | |||||
Engine | Model | WD615.69 | WD615.47 | |||
Rated power | 336HP(247Kw/rpm) | 371HP(273Kw/rpm) | ||||
Displacement | 4 stroke direct injection diesel engine | |||||
Type | 6 cylinder in-line with water cooling, turbo-charging & intercooling | |||||
Wheelbase | 3600+1400mm | 3800+1400mm | 4000+1400mm | 4300+1400mm | ||
Mixer tanker size | 8CBM | 9CBM | 10CBM | 12CBM | ||
Clutch | Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance | |||||
Transmission | SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse | |||||
Front axle | Steering axle with double T-cross section HF9 | |||||
Drive axle | Pressed axle housing, central single reduction HC16 | |||||
Chassis | Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe | |||||
Steering | Germany ZF, hydraulic steering with power assistance | |||||
Brakes | Service brake: dual circuit compressed air brake | |||||
Wheel & Types | Used Tire 12.00R20, new tire 12R22.5 | |||||
Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW | |||||
Cab | Model | HW76 | ||||
Type | HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt. |
