Applications:

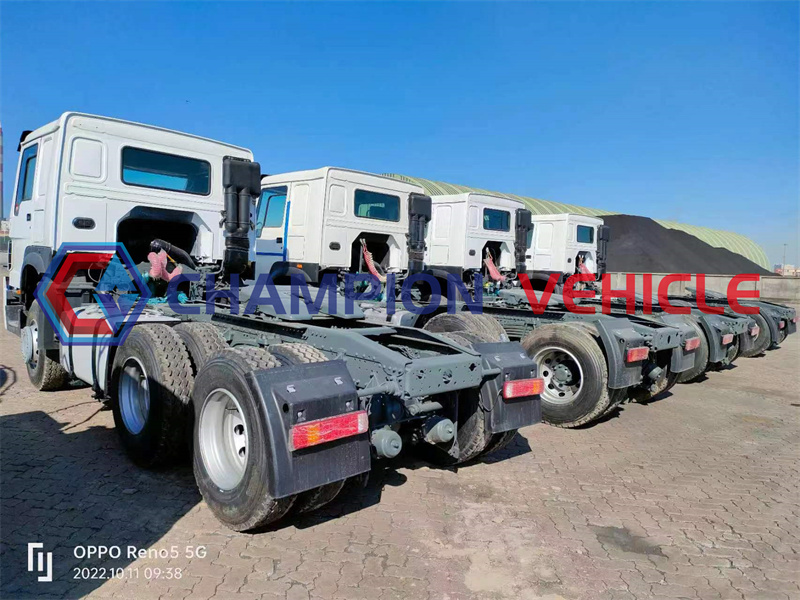

The howoTractor truck, also named semi trailer truck, is usually combination of a tractor unit and one or more semi-trailers to carry freight. Used for pulling all kinds of semi trailers designed for road transportation. Newly upgraded 400 /430 HP engine, stronger and more efficient.
Product Description:

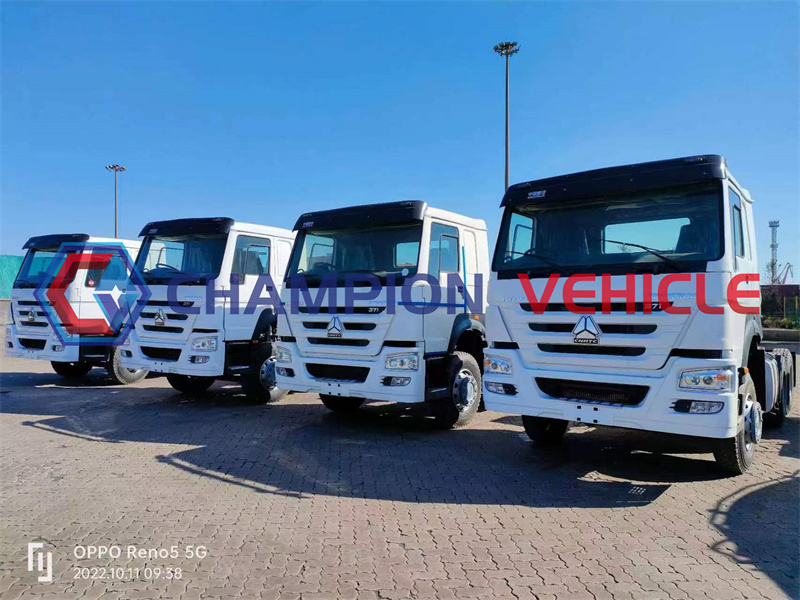

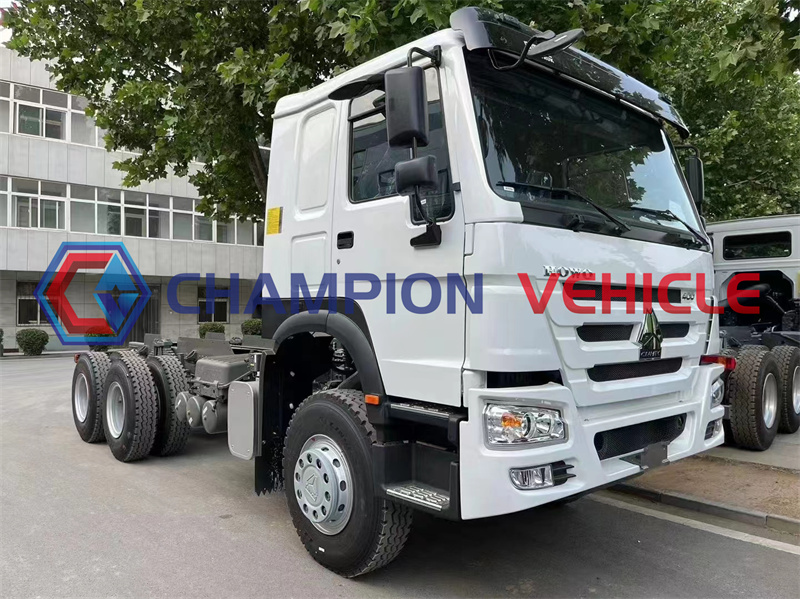

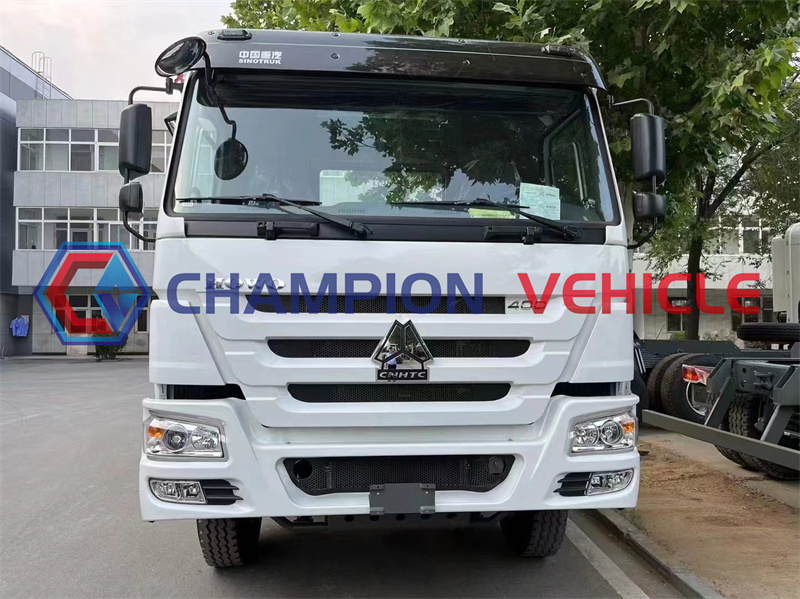

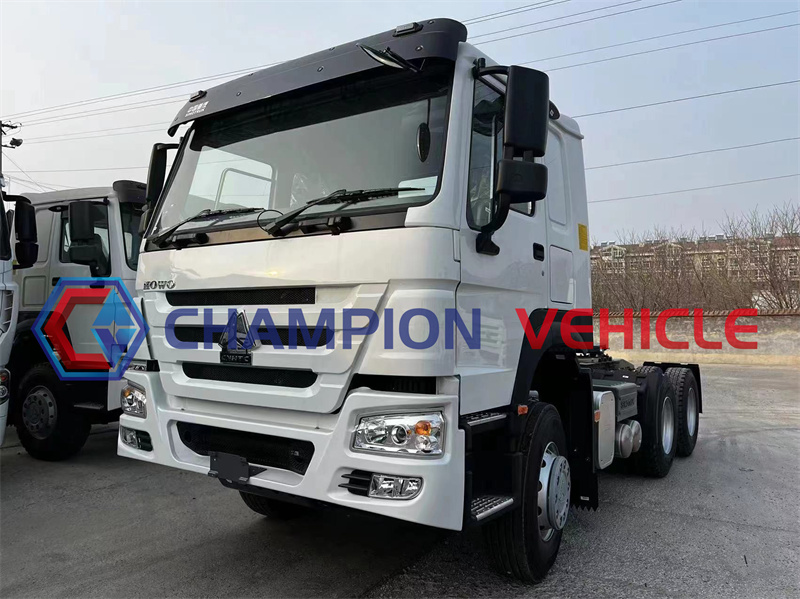

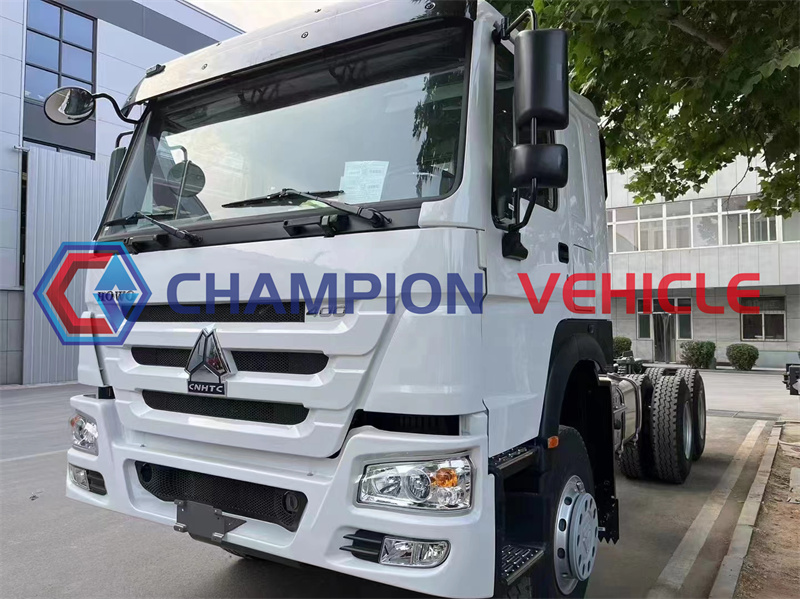

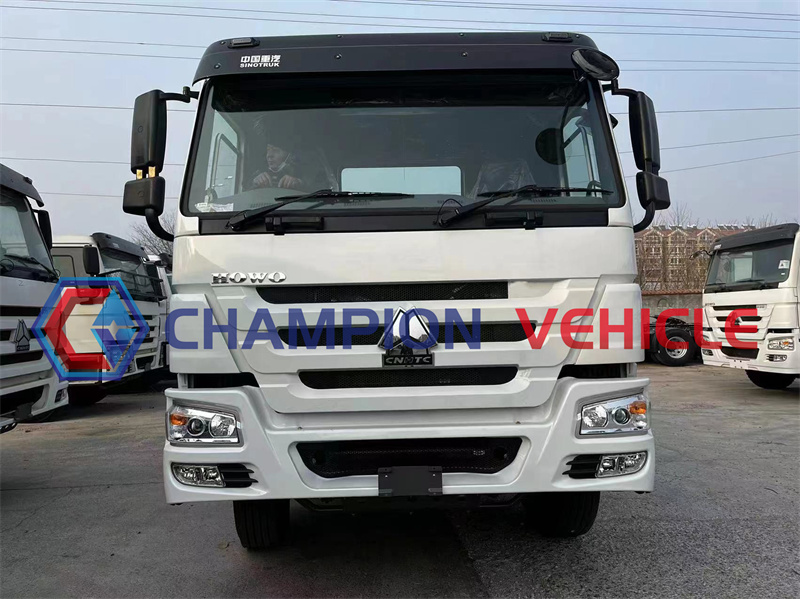

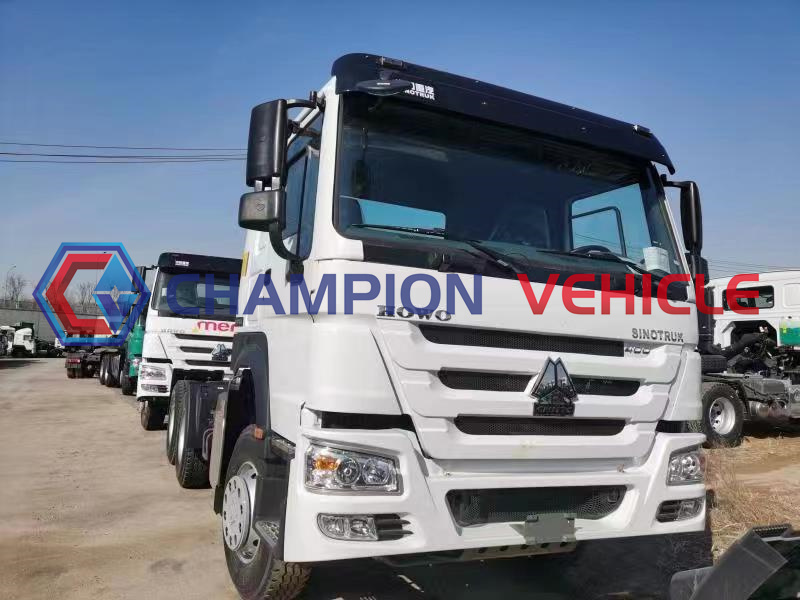

HOWO 6x4 tractor truck is a heavy-duty truck designed for hauling large loads. The new vision with 400 or 430HP Engine, which could provides excellent acceleration and power output. This tractor is built to handle heavy loads and can pull heavy duty trailers with ease.
Specification Sheet:
Typical truck model | ZZ4257V3247B1 | ||
Cab | Model | HW76 | |

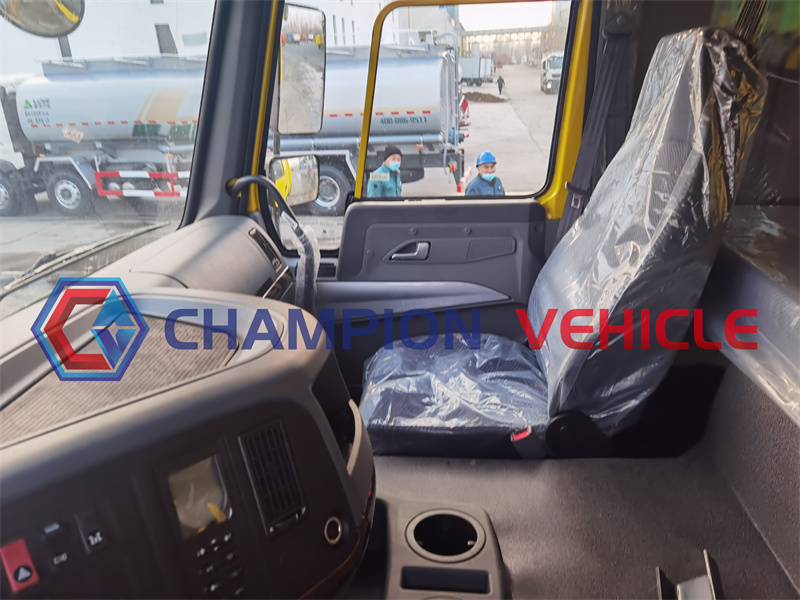

Type | HW76 extend cab,one berth, with A/C all steel forward control. | ||

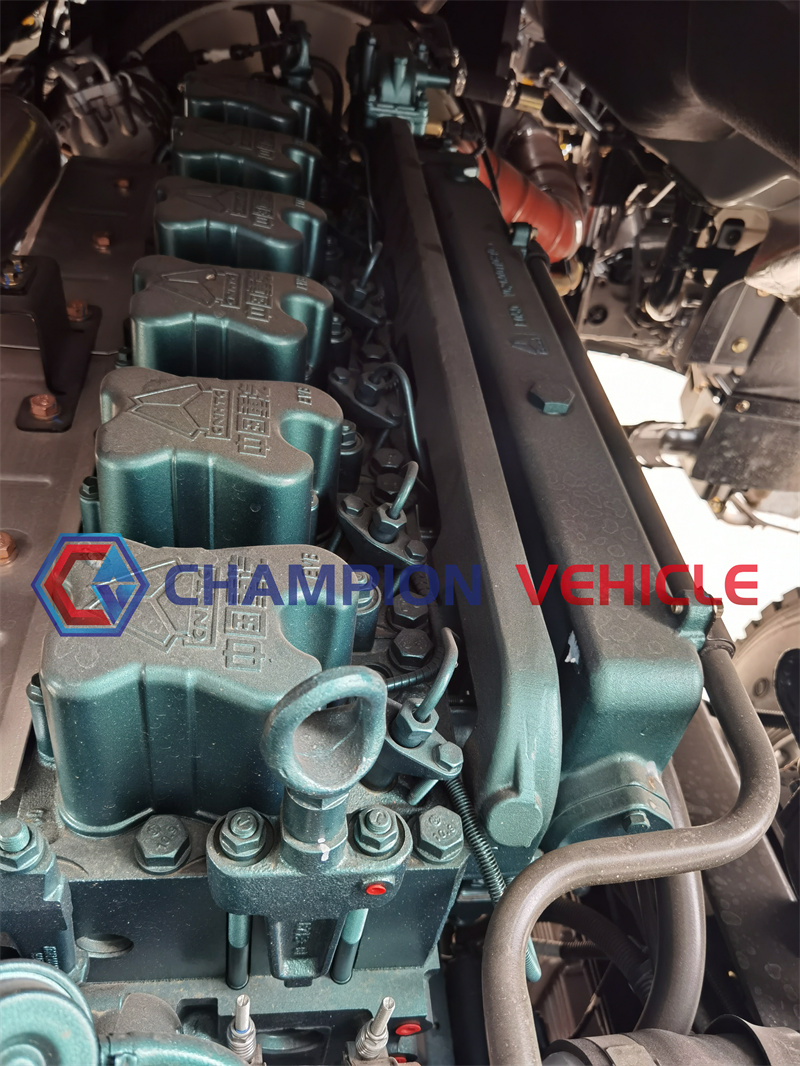

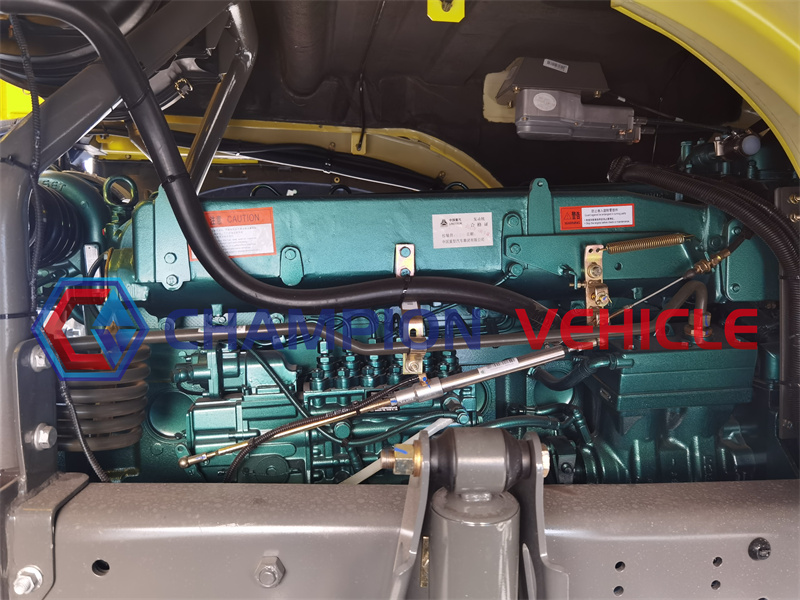

Engine | Model | WP12.400E201 | WP12.430E201 |
Rated power | 400HP | 430HP | |
Displacement | 4 stroke direct injection diesel engine | ||
Type | 6 cylinder in-line with water cooling, turbo-charging & intercooling | ||
Wheelbase | 3200+1400mm | ||
Clutch | Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance | ||
Transmission | SINOTRUK HW 19710, 10 forward and 2 reverse | ||
Front axle | VGD95 | ||
Drive axle | Pressed axle housing, central single reduction ST16/MCY（Q）/HC16 | ||
Chassis | Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe | ||
Steering | BOSCH | ||
Brakes | Service brake: dual circuit compressed air brake | ||
Wheel & Types | Types: 315/80R22.5, 12.00R20 for optional | ||
Electrics | Operating voltage:24V, negative grounded; Starter: 24V, 5.4KW | ||
