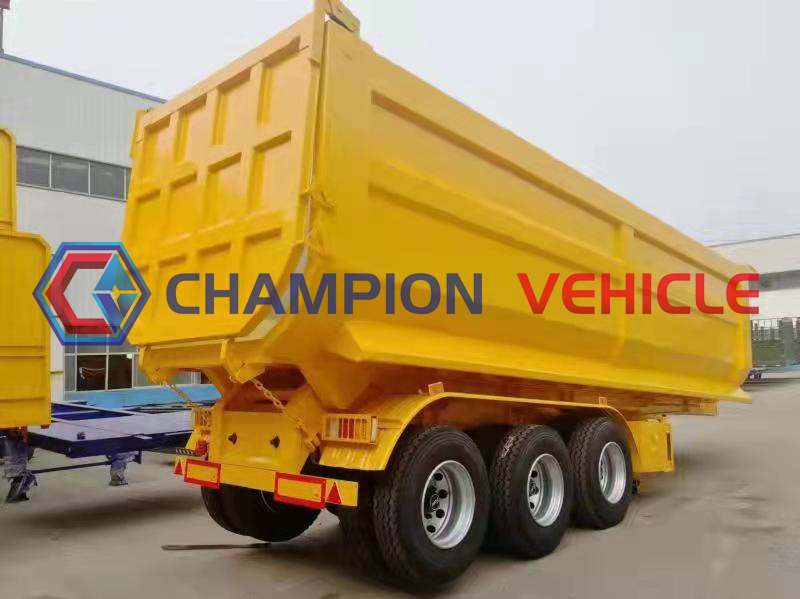

The 45 cubic meter three axle dump semi-trailer features a durable steel structure and hydraulic lifting mechanism for easy unloading. With a maximum load capacity of 60 tons, it is ideal for transporting heavy loads of construction materials or agricultural produce. Its lightweight and streamlined design ensures smooth operation and optimal fuel efficiency. Equipped with high-quality braking and suspension systems, it provides safe and stable transportation on any terrain.
Model | 35CBM U Shape 3 Axle Dump Semi Trailer | |
Parameter | Overall dimension | 10000*2550*3578mm |
Curb Weight | 12,000kg | |
Payload | 60 Tons | |
Main Beam | Q345 high tensile steel,530mm high 'T' beam submerged arc welding Flange and Web:Q345high tensile steel,thickness14/6/16mm | |
Flange and Web
| Q345high tensile steel,thickness14/6/16mm | |
Pick up Plate
| 12mm thickness high tensile steel | |
Floor | 6 mm flat plate,material: Q600,high tensile steel | |
Side panel
| 4mm flat plate，1650mmhighmaterial:O600 Rear door: 4 mm flat plate1650mm highmaterialQ600 | |
Side guard | Steel with SINOTRUK standard bracket. | |
Mud Guard | Steel with SINOTRUK standard bracket Rear Bump: Steel with SINOTRUK standard bracket | |
Rear Bump | Steel with SINOTRUK standard bracket | |
Landing gear | Lifting Capacity: 28TStatic Capacity: 80T. Kingpin: 3.5" SAE bolted | |
ABS | None | |
Suspension
| 1:Mechanical suspension39000Kg Capacity Spring Leaf: 10leafspringThickness:13mmwidth90mm Suspension 2: Air suspension13000Kg Capacity,Air suspension with lifting,use in the front axle | |
Axle
| 4 axle, 13T capacity/axleBrand:FUWA or CIMC Brakelining:420*220mm | |
Tire
| 315/80R22.516 pcs per chassisBrand:LingLong or triangle. | |
Hydraulic system
| Champion or HAWO or CIMC brand include Cylinder FC202include pumpcontrol valve,oil tanker, High-pressure pipeline,Low-pressure pipeline | |
Electrical system

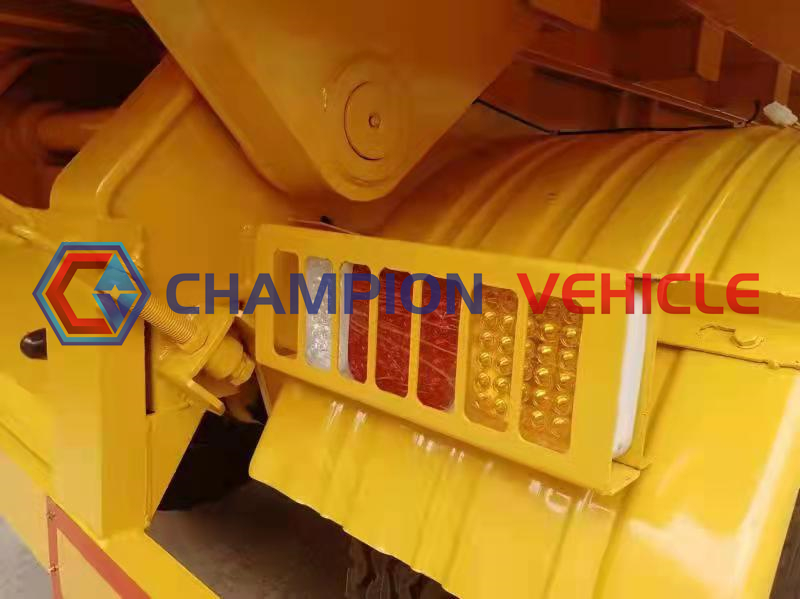

| 24V ISO1185 standard modular harness. Lamp: LED lamp.Brand:China famous. Spare tire carrier: 1 Pcs Tool box: 1 Pcs | |
Spare tire carrier | 1 Pcs Tool box: 1 Pcs | |
Powder coating
| Primer coat, top coat after sand blasting Color per customer’s requirement | |
